22×40 Beautiful West facing vastu house design

Free Download of the West facing house plan

Advertisement

22×40 west facing vastu house design is given in this article.  The total area of the ground floor and first floors are 880 sq ft and 880 sq ft respectively.  This is G+ 1 west facing house plan.  The length and breadth of the west facing house plan are 20’ and 40’ respectively.  This is a 3bhk west face house plan. The staircase is provided outside of a home.

880 W 1 1 1024x999 - 22x40 Beautiful West facing vastu house design
22×40 West facing vastu house plan

Advertisement

22×40 Ground floor West facing vastu house design

880 W GF 1 595x1024 - 22x40 Beautiful West facing vastu house design
22×40 Ground floor West facing vastu house design

On the ground floor of the west facing house vastu plan, the kitchen, master bedroom with an attached toilet, living room  cum dining area, sit out, storeroom, and puja room are available.  Each dimension is given in the feet and inches. The west facing house vastu plan with puja room is available. This ground floor plan is given with furniture’s details.

The kitchen is placed in the direction of the southeast corner. The master bedroom is placed in the direction of the southwest corner.  The attached toilet is placed in the direction of the south.  The living room area is placed in the direction of the northwest corner. The puja room is placed in the direction of the northeast corner.

The dimension of the kitchen is 10’ x 11’. The dimension of the attached toilet is 10’ x 4’.  The dimension of the living room cum dining area is 10’ x 27’3”.  The master bedroom dimension is 10’ x 11’.  The dimension of the puja room is 10’ x 4’. The dimension of the storeroom is 10’ x 4’.  The dimension of the sit out is 10’9” x 6’9’.

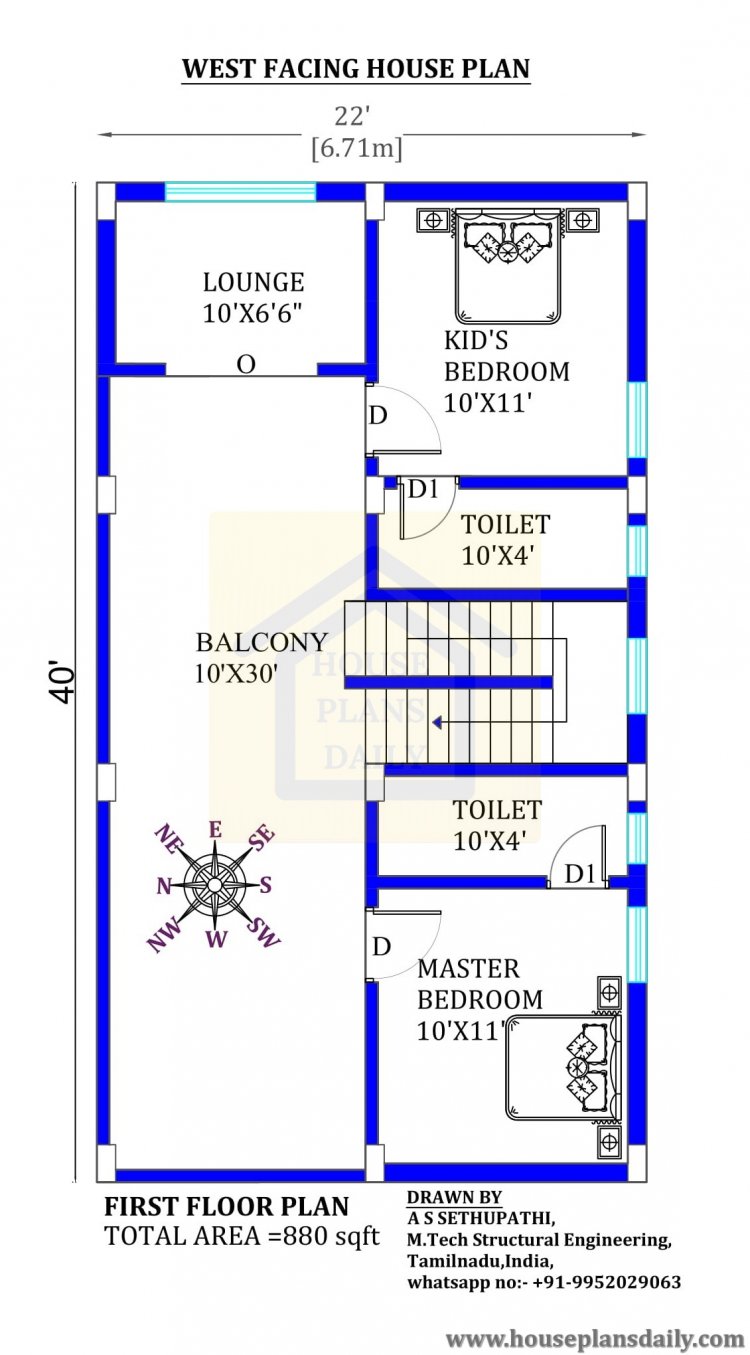

22×40 First floor West facing vastu house design

880 W FF 1 567x1024 - 22x40 Beautiful West facing vastu house design
22×40 First floor west face house plan

Advertisement

Advertisement

On the first floor of the west facing house plans, the kid’s bedroom with an attached toilet, master bedroom with an attached toilet, family lounge area, and balcony are available.  Each dimension is given in the feet and inches.  This is a 3bhk south facing floor plan is given with furniture’s details.

Advertisement

The kid’s bedroom is placed in the direction of the southeast corner. The kid’s attached bathroom is placed in the direction of the south. The master bedroom is placed in the direction of the southwest corner.  The master bedroom attached toilet is placed in the direction of the south.  The family lounge room area is placed in the direction of the northeast corner.

The dimension of the kid’s room is 10’ x 11’. The dimension of the attached toilet is 10’ x 4’.  The dimension of the family lounge area is 10’ x 6’6”.  The master bedroom dimension is 10’ x 11’.  The master bedroom attached toilet dimension is 10’ x 4’. The dimension of the balcony is 10’ x 30’.

Download the west home design files

FILES 13 1024x473 - 22x40 Beautiful West facing vastu house design
Download the west home design files

Advertisement

Advertisement

The above west facing house plan is very simple and compact for the people who searching under 1000 sq ft.  And also, this west facing house plan is given in vastu.

The major benefits of the west facing house plans are will have more wealth and prosperity.  And also, north face direction houses are indicated the kubera resides. Most persons hope that vastu is a good one for the house.  We are providing all house plans with vastu shastra.

According to the vastu shastra, we have given more house plans on our website.  1bhk house plans, 2bhk house plans, 3bhk house plans, Duplex house plans, G+ 1 home plans, G+ 2 house plan, small house plans, and 4bhk houses plans are available on our website.

If you are not able to get the download button, then click the exit mobile version after reloading. In the normal website version, you will get the download button. Thank you so much for visiting our website and downloading the CAD drawings and PDF files.
