30x60 North Facing Simple Home Design | Chota Ghar Ka Design

30x60 Simple Home Design is shown in this article. This Home Design includes the Ground and the first floor. The pdf and dwg files are available below.

30x60 North Facing Simple Home Design | Chota Ghar Ka Design
30x60 North Facing Simple Home Design | Chota Ghar Ka Design
30x60 North Facing Simple Home Design | Chota Ghar Ka Design
30x60 North Facing Simple Home Design | Chota Ghar Ka Design

The below-shown image is the ground and first floor plan of a 30x60 house plan 2 floor. The built-up area of the first and the ground floor is 1344 Sqft and 1344 Sqft respectively. The ground floor includes a hall, a master bedroom, a kitchen with a dining area, and a spacious car parking area whereas the first floor includes a master bedroom and a kid's bedroom with an open terrace.

ghar ka design photo

North Facing Home Design

The built-up area or the plinth area is the gross area of the house. The total size of the house, including the carpet area, the thickness of the walls, balcony, terrace, ducts, and utility area is said to be built-up area. Generally, the built-up area is 10-15 percent more than the carpet area of the house.

  • The home should be well-ventilated for better light and air.
  • The interior design must b done keeping in mind the space utilization.
  • Good quality materials should be used for construction.
  • The kitchen and living area should be spacious.
  • Quality fittings must be used.

Look into this Video for More House Plan Design Ideas - Subscribe to Our Channel

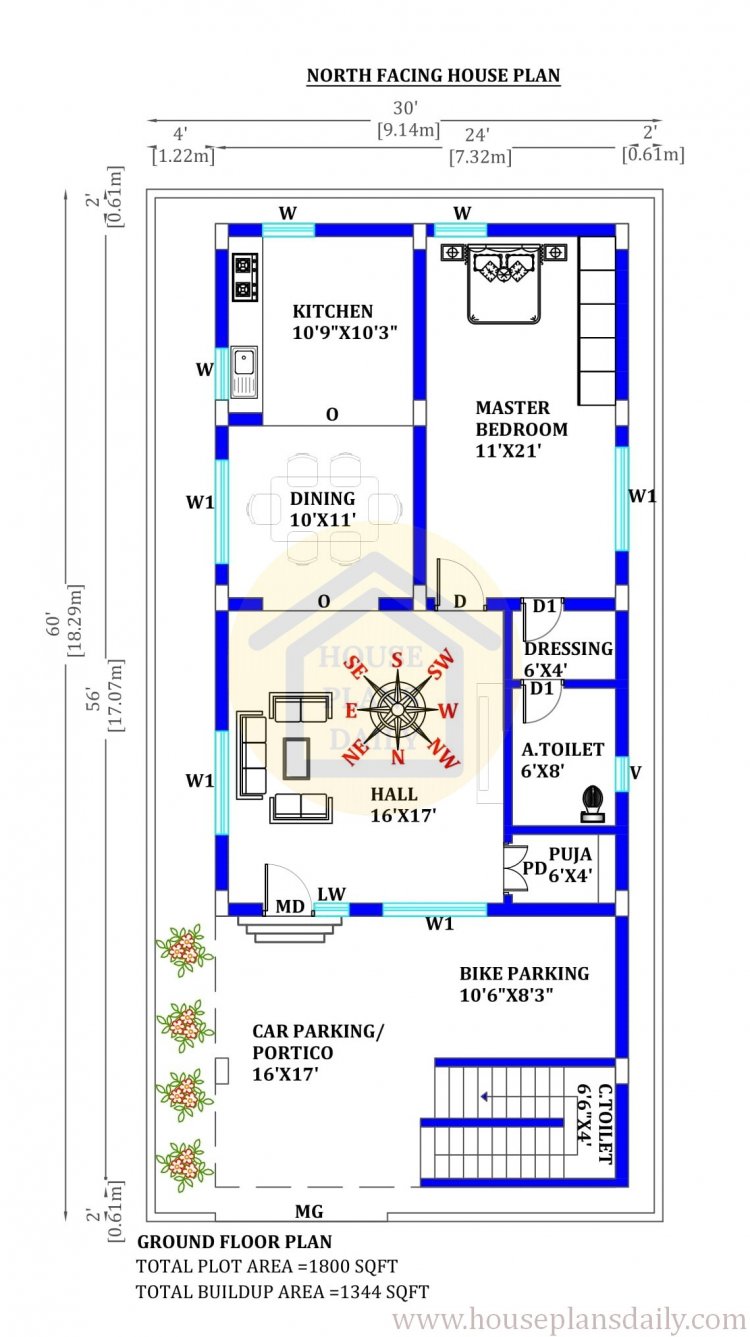

 North Facing Simple Home Design-Ground Floor

Home Design North Facing

The above image is the ground floor of a 30x60 North Facing Simple Home Design. It includes a hall, a master bedroom with an attached toilet, an open kitchen with a dining area, a common toilet, and a spacious car and bike parking area. The total plot area of this ground floor is 1800 Sqft and the built-up area is 1344 Sqft respectively. All the dimensions of each room are mentioned in the plan for a better idea. The Furnitures are also placed as per Vastu for reference.

 The Hall or the living area is 16x17 feet in size with the sofa placement facing west. The master bedroom is 11x21 feet in size with bed placement facing north. The kitchen is 10.9x10.3 feet in size and kept open with a dining area of 10x11 feet in size. The pooja room is 6x4 feet in size as per Vastu compliance. The master bedroom attached toilet is 6x8 feet in size with the commode placement facing south as per Vastu shastra.

The home design also includes a spacious car parking of size 16x17 feet and a bike parking area of size 10.6x8.3 feet. The common toilet is 6.6x4 feet in size provided below the staircase outside the home. All the column placements are shown for your reference. For ventilation purposes, large windows are provided in all the rooms. All the furnitures are placed keeping in mind the Vastu shastra principles.

Refer to these articles

 North Facing Simple Home Design-First Floor

Home Design

Home Design As Per Vastu Shastra

The above image is the first floor of a 30x60 North Facing Simple Home Design. It includes a master bedroom with a dressing area and an attached toilet, a kid's bedroom, and an open terrace area. The total plot area of this floor is 1800 Sqft and the built-up area is 577 Sqft respectively. The dimensions of each room are mentioned in the plan for a better idea. The Furniture items are also placed as per Vastu for reference.

The master bedroom is 11x21 feet in size with bed placement facing north. The kid's bedroom is 10.9x16 feet in size as per Vastu compliance. The master bedroom attached toilet is 6x8 feet in size with the commode placement facing south and the dressing area is 6x4 feet in size as per Vastu shastra.

The above home design also includes an open terrace area. The staircase is provided outside the home for accessibility to the first floor. All the column placements are shown for your reference. For ventilation purposes, large windows are provided in all the rooms. All the furniture items are placed keeping in mind the Vastu shastra principles.

Differentiate between plot area and built-up area?

Plot area is the total area of the land on which the building is constructed including the empty spaces all around the building whereas the built-up area is the area of the land on which the building alone is constructed excluding the empty spaces all around the building.

Download the 30x60 north facing house plan pdf and dwg files for free

house plans pdf

Download and obtain high-quality pdf files, images in jpeg format, and Autocad drawing dwg format of this 30x60 north face house design for free. Thank you for spending your valuable time visiting our website and citing this article. Kindly refer to our other articles for gaining more ideas regarding house plans and designs in each direction. Contact us for customized house plans and elevation designs.
