33×33 Beautiful North face home plan with vastu

Free download 33x33 north face home plan files

Advertisement

33×33 north face home plan with vastu is given in this article.  The total area of the ground floor and first floors are 1089 sq ft and 1089 sq ft respectively.  This is G+ 1 north facing house building.  The length and breadth of the north facing house plan are 33’ and 33’ respectively.  This is a 2bhk north facing house plan. On this plan, two houses are available.

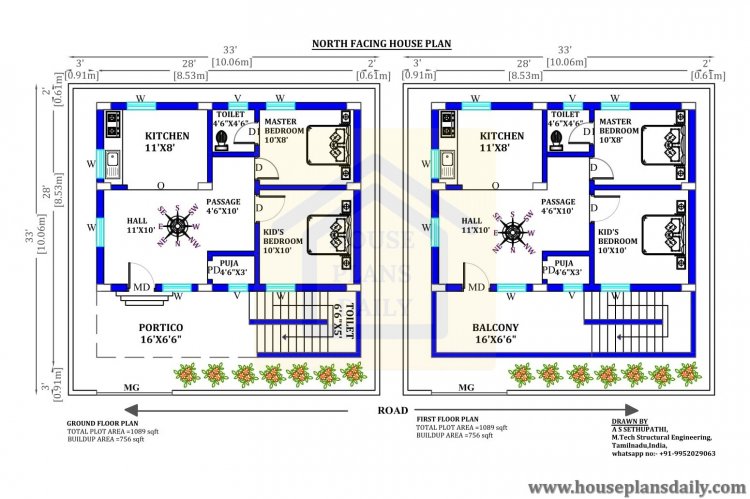

1089 N 1 1024x681 - 33x33 Beautiful North face home plan with vastu
33×33 North face home plan

Advertisement

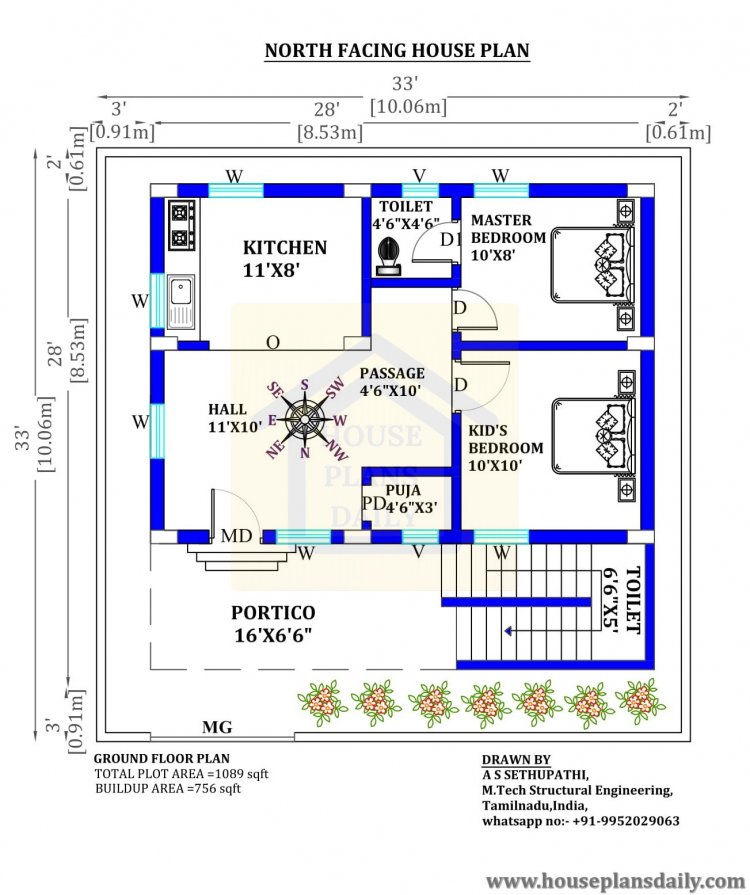

33×33 Ground floor North face home plan

1089 N GF 1 858x1024 - 33x33 Beautiful North face home plan with vastu
33×33 Ground floor North face home plan

On the ground floor of the north face home plan with vastu, the kitchen, master bedroom with an attached toilet, living room, portico, kid’s room, passage, puja room, and common bathroom are available.  Each dimension is given in the feet and inches.  This ground floor plan is given with furniture’s details. This is a 33×33 north facing home design.

The kitchen is placed in the direction of the southeast corner. The passage is placed in the direction of the south.  The master bedroom is placed in the direction of the south corner.  The attached bathroom is placed in the direction of the south.  The living room is placed in the direction of the northeast corner. The puja room is placed in the direction of the north.  The common bathroom is placed in the direction of the west which is placed under the staircase.  The portico is provided in the direction of the northeast corner.

The dimension of the kitchen is 11’ x 8’. The dimension of the kid’s room is 10’ x 10’. The dimension of the master bedroom is 10’ x 8’ and attached bathroom size is 4’6”x 4’6”.  The dimension of the living room is 11’ x 10’.  The dimension of the common toilet is 6’6” x 5’. The dimension of the puja room is 4’6” x 3’.  The dimension of the passage is 4’6” x 10’.  The dimension of the portico is 16’x 6’6”.

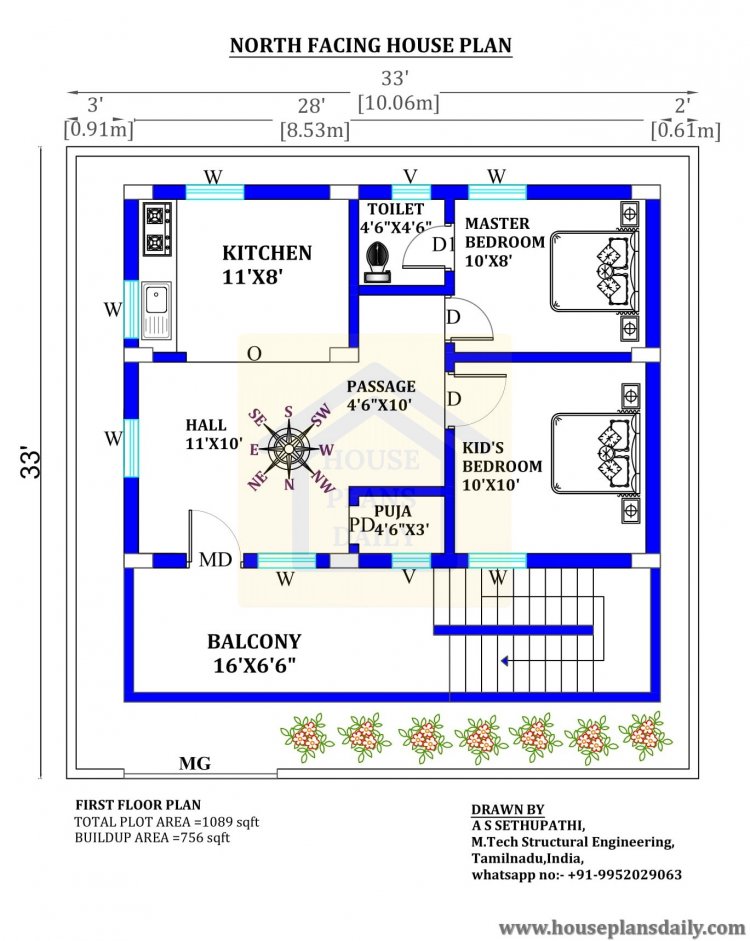

33×33 First floor North face home plan

1089 N FF 1 816x1024 - 33x33 Beautiful North face home plan with vastu
33×33 First floor North face home plan

Advertisement

Advertisement

On the first floor of the north facing 2bhk house plan, the kitchen, master bedroom with an attached toilet, living room, balcony, kid’s room, passage, puja room, and common bathroom are available.  Each dimension is given in the feet and inches.  This first floor plan is given with furniture’s details. On the north facing house vastu plan, two houses are available.

Advertisement

The kitchen is placed in the direction of the southeast corner. The passage is placed in the direction of the south.  The master bedroom is placed in the direction of the south corner.  The attached bathroom is placed in the direction of the south.  The living room is placed in the direction of the northeast corner. The puja room is placed in the direction of the north.  The common bathroom is placed in the direction of the west which is placed under the staircase.  The balcony is provided in the direction of the northeast corner.

The dimension of the kitchen is 11’ x 8’. The dimension of the kid’s room is 10’ x 10’. The dimension of the master bedroom is 10’ x 8’ and the attached bathroom size is 4’6”x 4’6”.  The dimension of the living room is 11’ x 10’.  The dimension of the common toilet is 6’6” x 5’. The dimension of the puja room is 4’6” x 3’.  The dimension of the passage is 4’6” x 10’.  The dimension of the balcony is 16’x 6’6”.

Download the 33×33 north facing house plan

FILES 15 1024x474 - 33x33 Beautiful North face home plan with vastu
Download the 33×33 north facing house plan

Advertisement

Advertisement

The above north facing house plan is very simple and compact for the people who searching under 1200 sq ft.  According to the vastu, we have added more house plans on our website.  1bhk house plans, 2bhk house plans, 3bhk house plans, Duplex house plans, G+ 1 vastu house plans, G+ 2 house plans, small house plans, and 4bhk houses plans are available on our website.

If you are not able to get the download button, then click the exit mobile version after reloading. In the normal website version, you will get the download button. Thank you so much for visiting our website and downloading the CAD drawings and PDF files.
