60x40 North Facing Floor Plan

60x40 north facing floor plan is given in this article. Two houses are available on this floor plan. The total area of the ground floor and first floors are 2400 sq ft and 2400 sq ft respectively.  The total constructed area is 1687 sq ft on the ground floor and first floor. This is G+ 1 house building.  The length and breadth of the house plans are 60’ and 40’ respectively.  This is a 2bhk north facing house plan.  The staircase is provided outside the home.

60x40 North Facing Floor Plan
60x40 North Facing Floor Plan
60x40 North Facing Floor Plan
60x40 North Facing Floor Plan

double bedroom house plans north facing

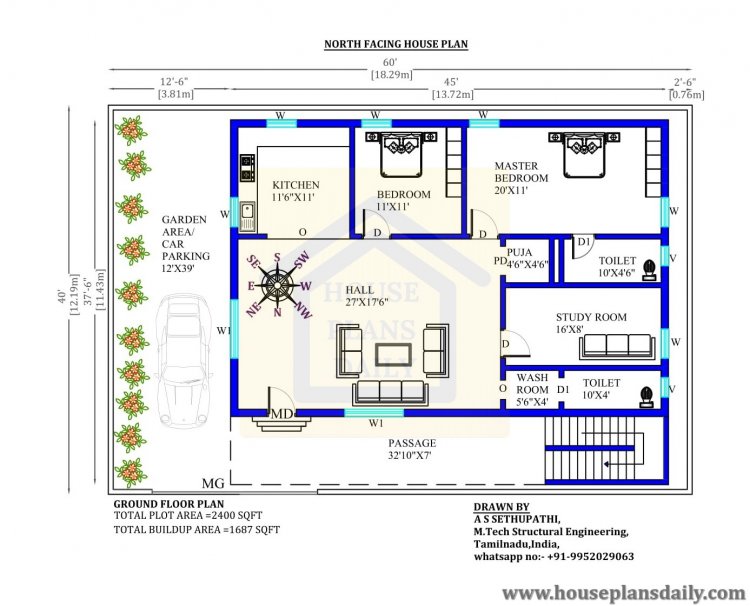

60x40 Ground floor north facing floor plan

house plans north facing

60x40 Ground floor north facing plan

On the ground floor of the north direction house plan, the kitchen, master bedroom with the attached toilet, guest room, living room, puja room, study room, washroom, garden area, car parking, passage, and common bathroom are available.  Each dimension is given in the feet and inches.  This north house vastu plan is given with furniture details.

The kitchen is placed in the direction of the southeast corner.  The master bedroom is placed in the direction of the southwest corner.  The master bedroom attached toilet is placed in the direction of the west. The living room is placed in the direction of the northeast corner.

The common bathroom is placed in the direction of the west. The washroom is placed in the direction of the west.  The study room is placed in the direction of the west.  The portico and car parking is placed in the direction of the east side.  The puja room is placed in the direction of the south. The guest room is placed in the direction of the south. The passage is provided in the direction of the north.

The dimension of the kitchen is 11’6” x 11’. The dimension of the master bedroom is 20’ x 11’.  The dimension of the living room is 27’ x 17’6”.  The dimension of the common toilet is 10’ x 4’.  The dimension of the washroom is 5’6” x 4’. The dimension of the passage is 32’10” x 7’.The dimension of the portico and car parking is 12’ x 13’9”. The dimension of the puja room is 4’6” x 4’6”.  The dimension of the guest room is 11’ x 11’.  The dimension of the attached bathroom is 5’ x 4’.  The dimension of the study room is 16’ x 8’.

60x40 First floor north facing plan

 house plans north face

60x40 First floor north facing plan

On the first floor of the vastu home design north facing, the kitchen, master bedroom with the attached toilet, guest room, living room, dressing room, puja room, utility room, garden area, passage, and common bathroom are available.  Each dimension is given in the feet and inches.  This vastu shastra home plan north facing is given with furniture details.

The kitchen is placed in the direction of the southeast corner.  The master bedroom is placed in the direction of the southwest corner.  The master bedroom attached toilet is placed in the direction of the west. The living room is placed in the direction of the northeast corner.

The common bathroom is placed in the direction of the west. The utility room is placed in the direction of the west.  The puja room is placed in the direction of the west.  The dressing room is placed in the direction of the south. The guest room is placed in the direction of the south. The passage is provided in the direction of the north.

The dimension of the kitchen is 11’6” x 11’. and The dimension of the master bedroom is 20’ x 11’.  The master bedroom’s dressing area dimension is 7’6” x 6’. The dimension of the living room is 27’ x 17’6”.  The dimension of the master bedroom toilet is 8’ x 6’.

The dimension of the utility room is 16’ x 4’6”. The dimension of the passage is 32’10” x 7’.The dimension of the garden is 12’ x 13’9”. The dimension of the puja room is 6’6” x 6’.  The dimension of the guest room is 11’ x 11’.  The dimension of the attached bathroom is 8’ x 6’.  The dimension of the common bathroom is 8’ x 6’.

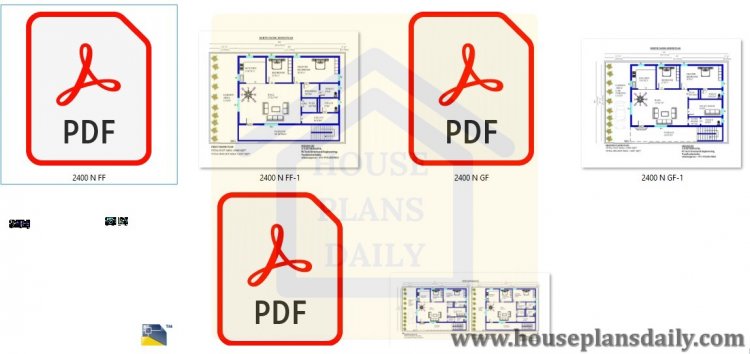

Download the North facing house plans files

home plan dwg file

Download the North facing house plans files

We have provided internal and external links for the north-facing house plans. Thank you so much for visiting our website and downloading the CAD drawings and PDF files.
