Vastu House Plan North Facing | G+4 Home Design

Vastu House Plan North Facing is shown in this article. The plan of the 5-storey house is elaborated below. For more house plans visit www.houseplansdaily.com.

  NORTH FACING HOUSE PLANS   Sep 29, 2024   0   4624  Add to Reading List
Vastu House Plan North Facing | G+4 Home Design
Vastu House Plan North Facing | G+4 Home Design
Vastu House Plan North Facing | G+4 Home Design
Vastu House Plan North Facing | G+4 Home Design
Vastu House Plan North Facing | G+4 Home Design
Vastu House Plan North Facing | G+4 Home Design

Vastu House Plan North Facing

The below-shown image is the house plan design of a 5-storey building. The built-up area of the ground and the remaining floors is 300 Sqft and 742 Sqft respectively. The ground floor includes a master bedroom, a common toilet, and a spacious car parking area. whereas the remaining floors include a hall or living room, a master bedroom with an attached toilet, a kitchen with a utility area, and a balcony.

house plan designs

house layout ideas

Vastu House Plan North Facing-Ground Floor


floor plan designers

simple home plans

The above image is the ground floor of a Vastu house plan north facing. It includes a master bedroom, a common toilet, and a spacious parking area. The total plot area of this ground floor is 706 Sqft and the built-up area is 300 Sqft respectively. This is a simple house design where a staircase is provided inside the house to access the first floor. All the dimensions of each room are mentioned on the plan. The Furniture is also placed as per Vastu for a clear idea.

The master bedroom is 11x11 feet in size. The common toilet is 4x8.6 feet in size. The parking area is 22.6x16.5 feet in size.  This home design also includes a garden. All the column placements are shown for your reference. For ventilation purposes, large windows are provided in all the rooms. All the furniture is placed keeping in mind the Vastu shastra principles.

Refer to these articles

5 Storey House Plan North Facing-First Floor

house plan layouts

home architecture plans

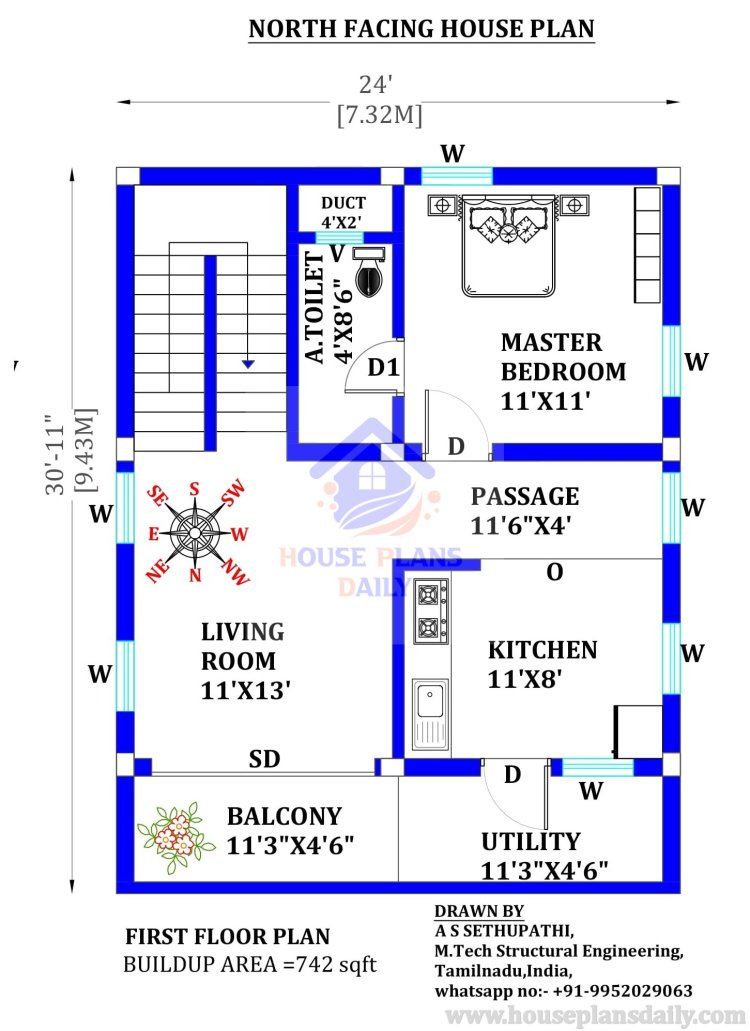

The above image is the first floor of a Vastu house plan north facing. It includes a hall or living room, a master bedroom with an attached toilet, a kitchen with a utility area, and a balcony. The total plot and the built-up area of this floor are 742 Sqft respectively. The dimensions of each room are mentioned in the plan for a better idea. The Furniture items are also placed as per Vastu for reference.

The living room is 11x13 feet in size. The master bedroom is 11x11 feet in size with bed placement facing north. The Kitchen is 11x8 feet in size. The master bedroom attached toilet is 4x8.6 feet in size. The kitchen utility area is 11.3x4.6 feet in size.

The staircase is provided inside the home for accessibility to the second floor. All the column placements are shown for your reference. For ventilation purposes, large windows are provided in all the rooms. All the furniture items are placed keeping in mind the Vastu shastra principles.

North Facing House Plan-Second, Third, and Fourth Floor

modern house layouts

new home floor plans

home design layouts

modern home design plans

home floor plan designs

home drawing plans

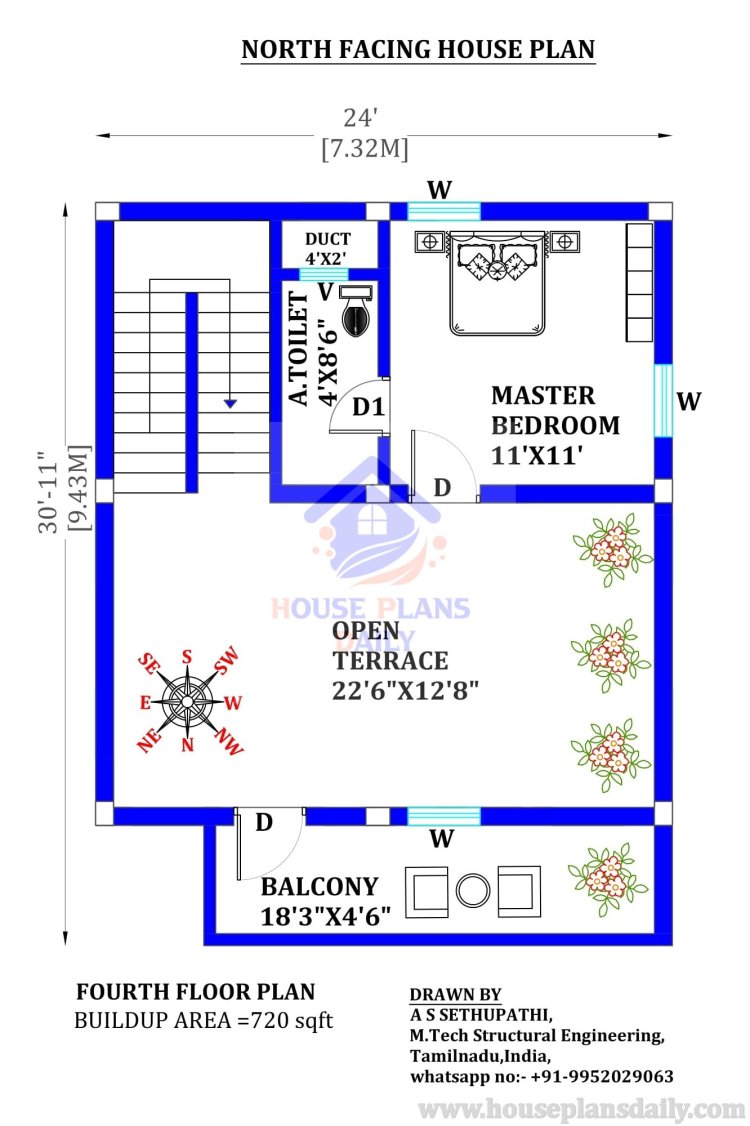

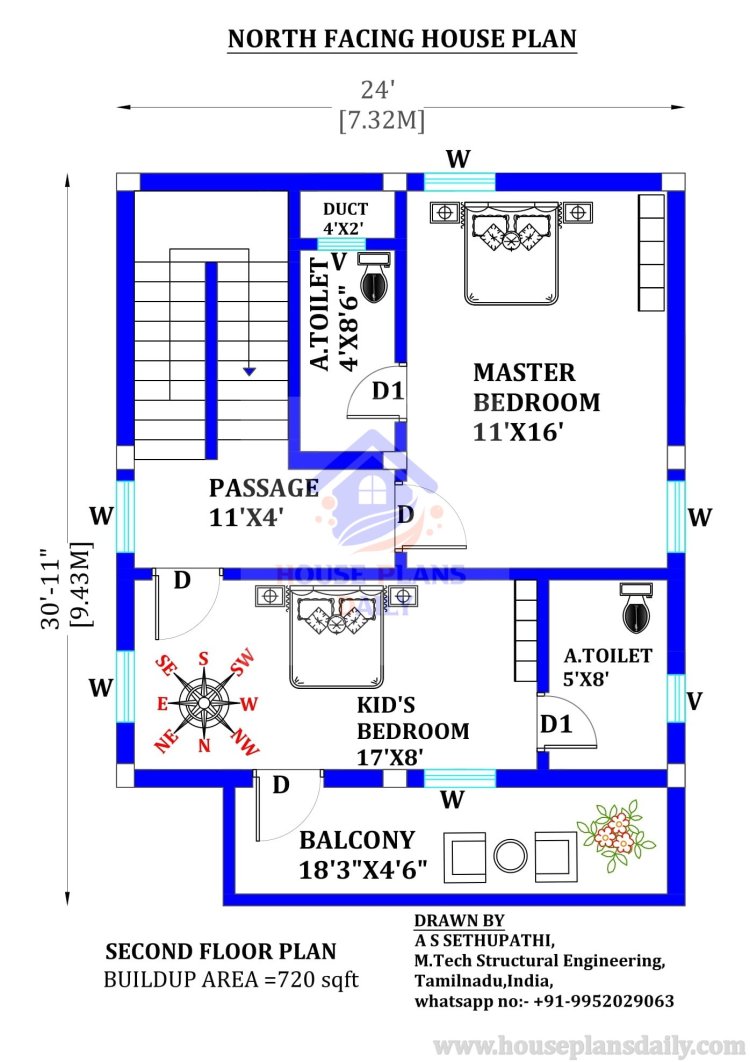

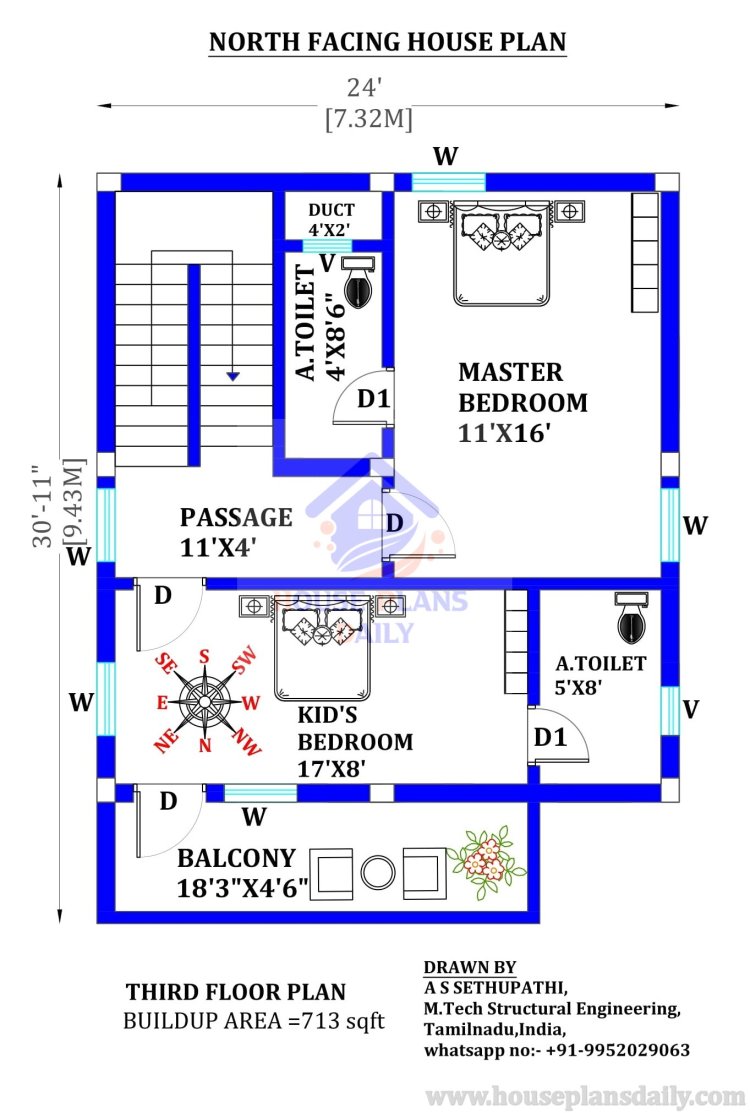

The above images are the second, third and fourth floors of a north facing house plan. Each floor plan includes a master bedroom with an attached toilet, a kid's bedroom with an attached toilet, and a balcony. The built-up area of these floors are 720, 713, and 720 Sqft respectively. The dimensions of each room are mentioned in the plan for a better idea. The Furniture items are also placed as per Vastu for reference.

The master bedroom is 11x16 feet in size. The master bedroom toilet is 4x8.6 feet in size. The kid's bedroom is 17x8 feet in size and the attached toilet is 5x8 feet in size. The balcony area is 18.3x4.6 feet in size.

The staircase is provided inside the home for accessibility to the second floor. All the column placements are shown for your reference. For ventilation purposes, large windows are provided in all the rooms. All the furniture items are placed keeping in mind the Vastu shastra principles.

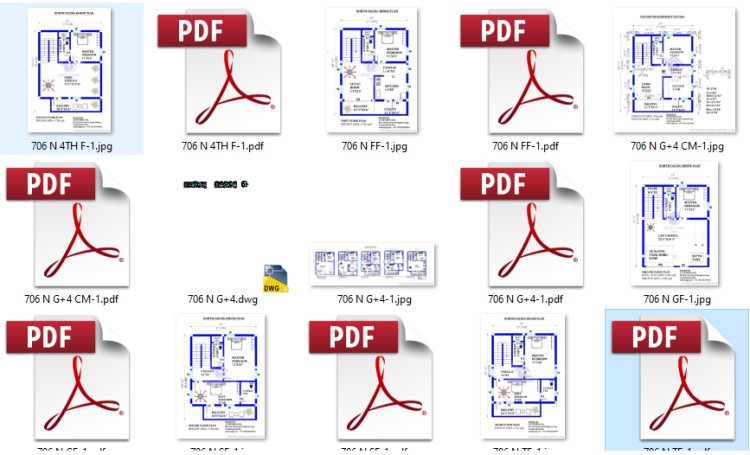

Download the floor plan pdf and dwg files for free

house plans pdf

home plans pdf

Download and obtain high-quality pdf files, images in jpeg format, and Autocad drawing dwg format of this house design for free. Thank you for spending your valuable time visiting our website and citing this article. Kindly refer to more articles for gaining more ideas regarding house plans and designs in each direction. Contact us for customized house plans, interior designs, and elevation designs.
