26x40 South Facing Vastu Home Plan

26x40 south facing vastu home plans are shown in this article.  The total area of the ground floor and first floors are 1040 sq ft and 1040 sq ft respectively. Two houses are available on this plan.  This is G+ 1 house building.  The built up area of the first floor and ground floor south side vastu plan model is 784 sq ft and 784 sq ft respectively. The length and breadth of the plan are 26’ and 40’ respectively.  This is a 2bhk south facing house plan.

26x40  South Facing Vastu Home Plan
26x40  South Facing Vastu Home Plan
26x40  South Facing Vastu Home Plan
26x40  South Facing Vastu Home Plan

best vastu plan for south facing house

26x40 Ground floor south facing vastu home plans

best vastu plan

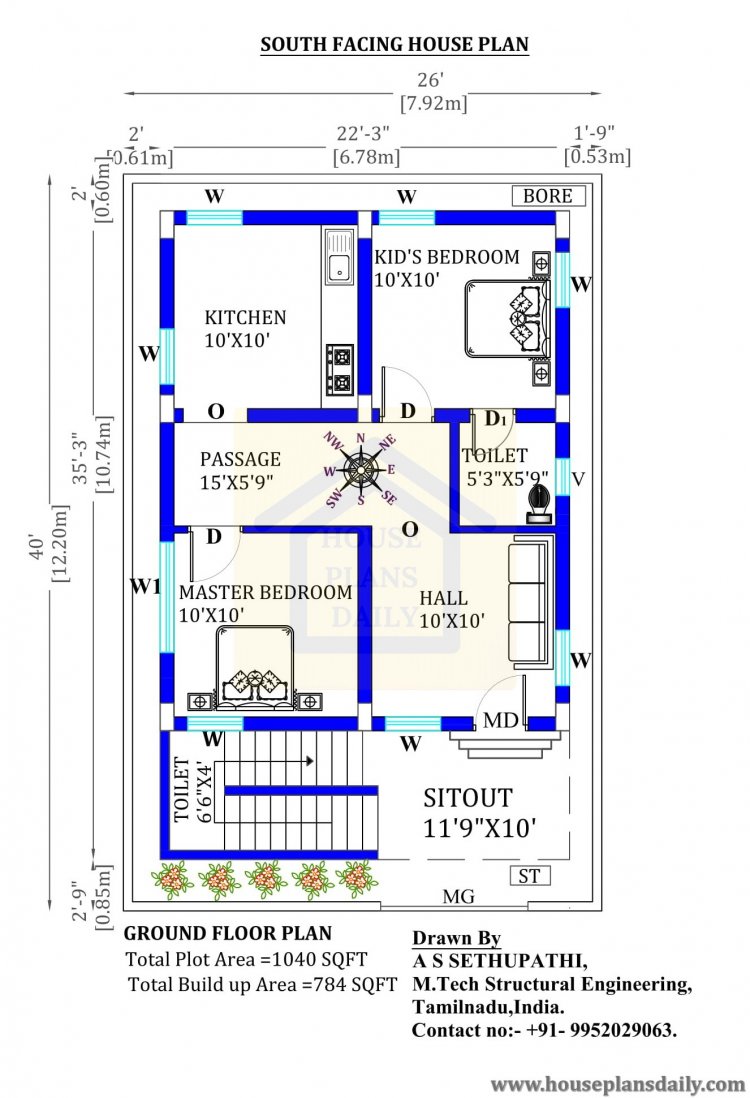

26x40 Ground floor south facing vastu home plan

On the ground floor of the south facing house plans 26 x 40, the kitchen, master bedroom, living hall, sit out, kids room with the attached toilet, passage, and common bathroom are available.  Each dimension is given in the feet and inches.  This ground floor plan is given with furniture details.

The kitchen is placed in the direction of the northwest corner. The passage is placed in the direction of the west. The master bedroom is placed in the direction of the west corner. The kid’s bedroom is placed in the direction of the northeast corner. The kid’s attached bathroom is placed in the direction of the east.  The living room is placed in the direction of the southeast corner. The common bathroom is placed in the direction of the west which is placed under the staircase.  The sit-out is provided in the direction of the southeast corner.

The dimension of the kitchen is 11’ x 10’. The dimension of the kid’s room is 10’ x 10’. The dimension of the master bedroom is 10’ x 10’. The kid’s attached bathroom size is 5’3”x 5’9”.  The dimension of the living room is 10’ x 10’.  The dimension of the common toilet is 6’6” x 4’. The dimension of the passage is 15’ x 5’9”.  The dimension of the sit-out is 11’9” x 10’.

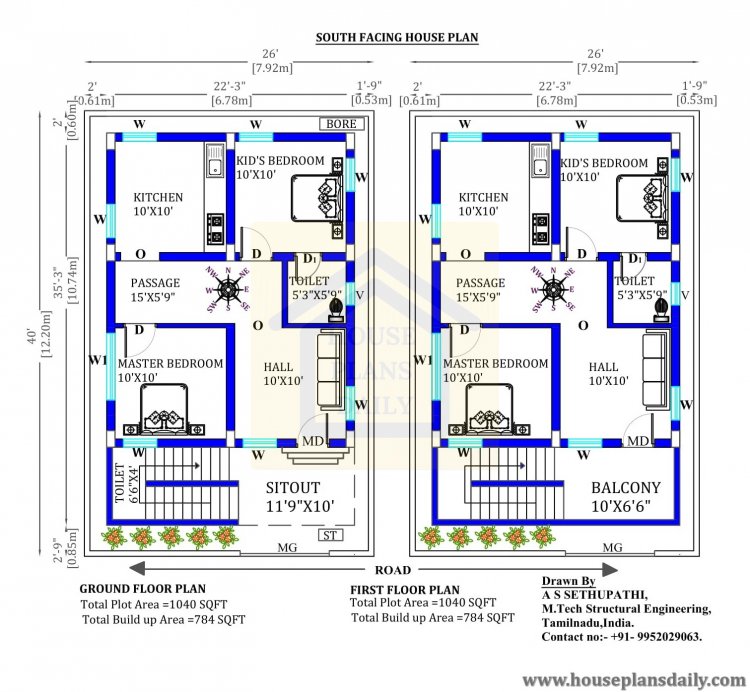

26x40 First floor south facing vastu home plan

south floor plan

26x40 First floor south facing vastu home plan

On the first floor of the south vassal house plan, the kitchen, kid’s bedroom with an attached toilet, living room, balcony, master bedroom, passage, and common bathroom are available.  Each dimension is given in the feet and inches.  This first floor south-facing plan is given with furniture details.

The kitchen is placed in the direction of the northwest corner. The passage is placed in the direction of the west. The master bedroom is placed in the direction of the west corner. The kid’s bedroom is placed in the direction of the northeast corner. The kid’s attached bathroom is placed in the direction of the east.  The living room is placed in the direction of the southeast corner. The common bathroom is placed in the direction of the west which is placed under the staircase.  The sit-out is provided in the direction of the southeast corner.

The dimension of the kitchen is 11’ x 10’. The dimension of the kid’s room is 10’ x 10’. The dimension of the master bedroom is 10’ x 10’. The kid’s attached bathroom size is 5’3”x 5’9”.  The dimension of the living room is 10’ x 10’.  The dimension of the common toilet is 6’6” x 4’. The dimension of the passage is 15’ x 5’9”.  The dimension of the sit-out is 11’9” x 10’.

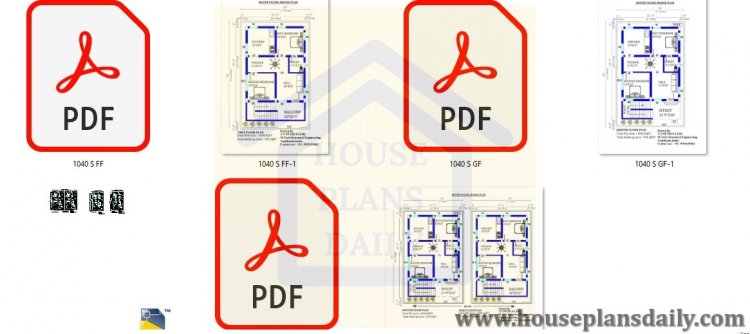

Download the south facing house plan AutoCAD 2D DWG drawing files for free

free house plan pdf

Download the south facing house plan AutoCAD 2D DWG drawing files for free

The above south-facing plans are very simple and compact for the people who searching for under 1200 sq ft.  According to the vastu, we have added more house plans on our website.  1bhk house plans, 2bhk house plans, 3bhk house plans, Duplex house plans, G+ 1 house plans, G+ 2 house plans, small house plans, and 4bhk house plans are available on our website. Thank you so much for visiting our website and downloading the CAD drawings and PDF files.

Download PDF and DWG Files
