20x40 South Facing Vastu House Design

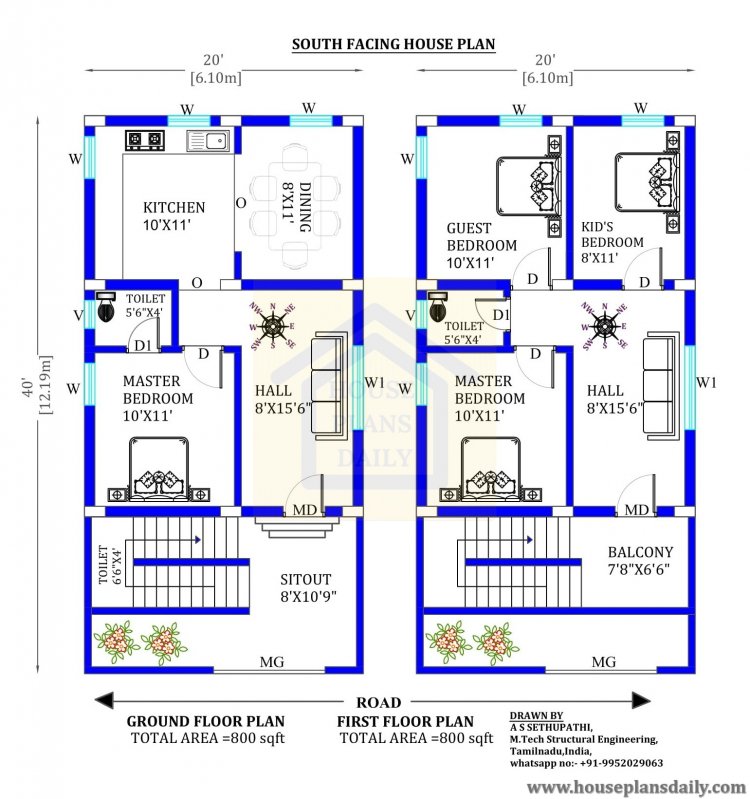

20x40 south facing vastu design is shown in this article.  The total area of the ground floor and first floors are 800 sq ft and 800 sq ft respectively.  This is G+ 1 house building.  The length and breadth of the are 20’ and 40’ respectively.  This is a 4bhk south facing house plan. The staircase is provided outside the home.

20x40 South Facing Vastu House Design
20x40 South Facing Vastu House Design
20x40 South Facing Vastu House Design
20x40 South Facing Vastu House Design

20 40 house plans south facing with vastu

20x40 Ground floor south facing vastu design

 house plans south facing with vastu

20x40 Ground floor south facing vastu plan

On the ground floor of the south side house plan, the kitchen, master bedroom with the attached toilet, living room, sit-out, dining area, and common bathroom are available.  Each dimension is given in the feet and inches.  This ground floor south face house plan drawing is given with furniture details.

The kitchen is placed in the direction of the northwest corner. The dining area is placed in the direction of the northeast corner.  The master bedroom is placed in the direction of the west.  The attached bathroom is placed in the direction of the west.  The living room is placed in the direction of the east. The common bathroom is placed in the direction of the west which is placed under the staircase.  The sit-out is placed in the direction of the southeast corner.

The dimension of the kitchen is 10’ x 11’. The dimension of the master bedroom is 10’ x 11’ and the attached bathroom size is 5’6” x 4’.  The dimension of the living room is 8’ x 15’6”.  The dimension of the common toilet is 6’6” x 4’. The dimension of the dining area is 8’ x 11’. and The dimension of the sit-out is 8’x 10’9”.

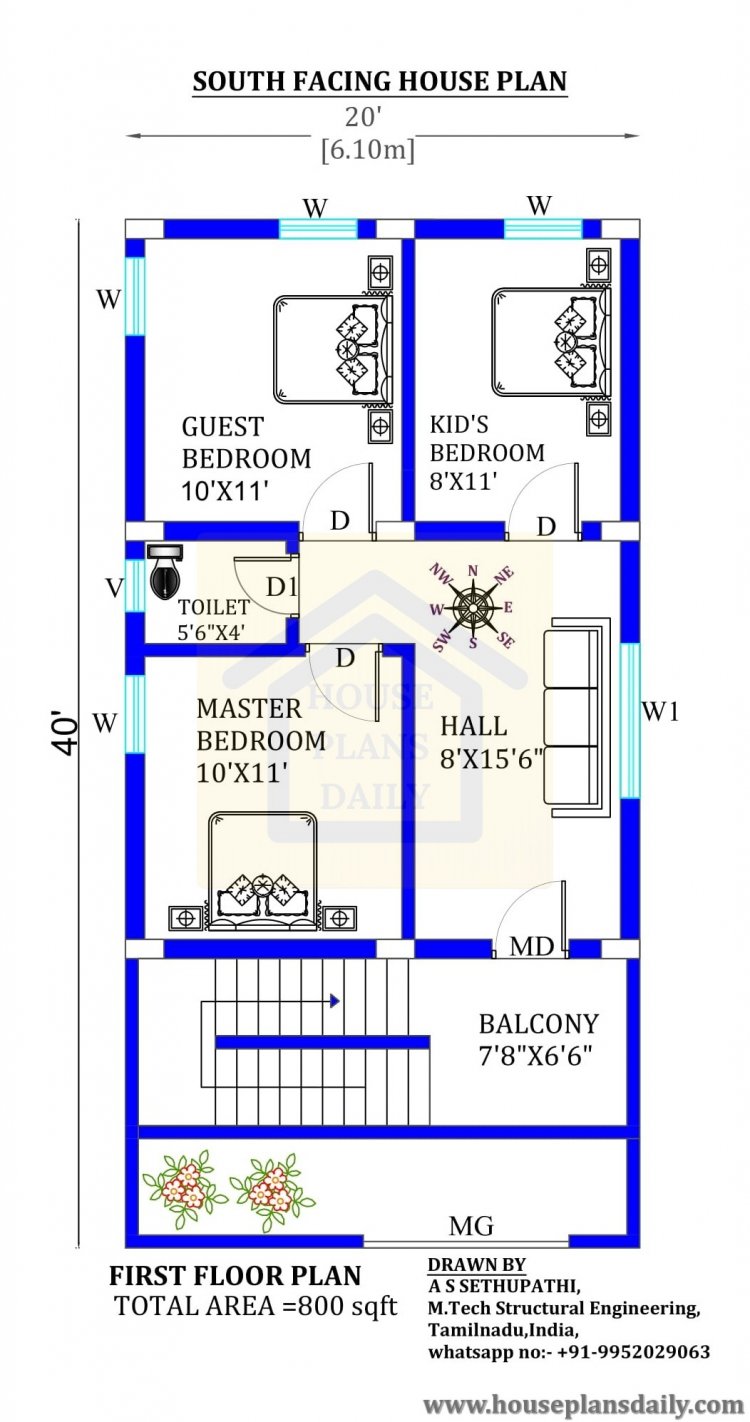

20x40 First floor south facing vastu plan

20 40 house plans south facing

20x40 First floor south facing vastu plan

On the first floor of the south facing house vastu plan, the guest room, master bedroom with the attached toilet, living room, balcony, kids bedroom area, and common bathroom are available.  Each dimension is given in the feet and inches.  This ground floor south facing plan is given with furniture details.

The guest room is placed in the direction of the northwest corner. The kid’s room area is placed in the direction of the northeast corner.  The master bedroom is placed in the direction of the west.  The attached bathroom is placed in the direction of the west.  The living room is placed in the direction of the east. The common bathroom is placed in the direction of the west which is placed under the staircase.  The balcony is placed in the direction of the southeast corner.

The dimension of the guest bedroom is 10’ x 11’. The dimension of the master bedroom is 10’ x 11’ and the attached bathroom size is 5’6” x 4’.  The dimension of the living room is 8’ x 15’6”.  The dimension of the common toilet is 6’6” x 4’. The dimension of the kid’s room area is 8’ x 11’. and The dimension of the balcony is 7’8” x 6’6”.

Download the south facing house plan files for free

south face floor plan pdf

Download the south facing house plan files for free

The above south facing house plan is very simple and compact for the people who searching for under 1000 sq ft.  And also, this south facing house plan is given in vastu. People believe that south facing house plans are allows positive energy to the home.

According to the vastu, we have added more house plans on our website.  1bhk house plans, 2bhk house plans, 3bhk house plans, Duplex house plans, G+ 1 house plans, G+ 2 house plans, small house plans, and 4bhk house plans are available on our website. Thank you so much for visiting our website and downloading the CAD drawings and PDF files.
