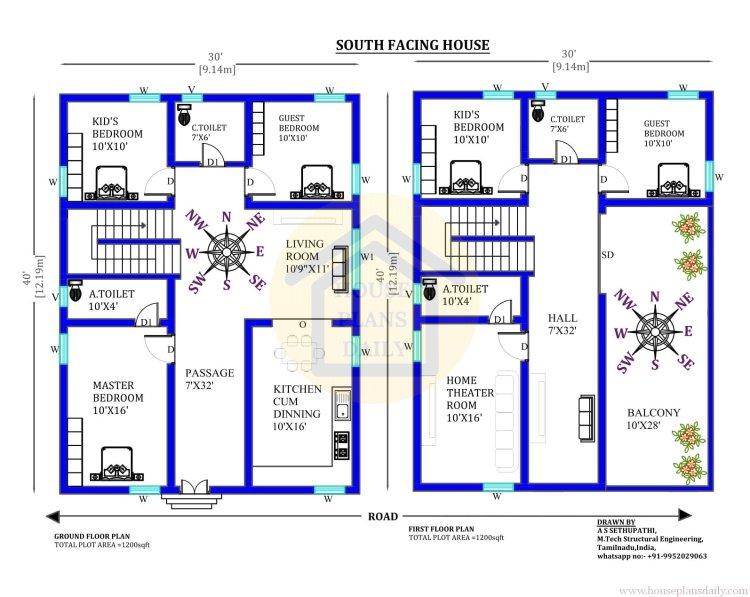

South Face House Vastu is shown below with two floors i.e ground and the first floor. The total plot area of both floors is 1200 sqft.

House Planning 30x40 | South Face House Vastu | 3bhk House
House Planning 30x40 | South Face House Vastu | 3bhk House
House Planning 30x40 | South Face House Vastu | 3bhk House
House Planning 30x40 | South Face House Vastu | 3bhk House

House Planning 30x40 | South Face House Vastu | 3bhk House

30 40 house plan is shown in this article. The pdf and dwg files can be downloaded for free. The download button is available below. For downloading more free 40 by 30 house plans refer to more articles. The built-up area of the ground and first floor is 1200  Sqft and 1200 Sqft respectively. The Staircase is provided inside the house. The given south facing house consists of two floors i.e ground and the first floor.

House Planning 30x40

vastu for house south facing

Vastu for a South-Facing House-Ground Floor

South Face House Vastu

3bhk house planning

The above image is the ground floor of the 40 by 30 house plan. The ground floor consists of a hall or living room, a master bedroom with an attached toilet, a kid's bedroom, a guest bedroom, a kitchen cum dining, and a common toilet. The dimensions of each room are clearly mentioned with furniture positions.

The hall or living area is 10.9x11 feet in size and placed in the north-east direction. The master bedroom of the 3bhk house plan is 10x16 feet in size and placed in the southwest direction with an attached toilet. The attached toilet is 10x4 feet in size and placed in the northwest direction. The kid's bedroom is 10x10 feet in size. The guest bedroom is 10x10 feet in size. The kitchen cum dining is 10x16 feet in size and placed in the southeast direction as per Vastu Shastra principles.

The car parking space can be used in multiple ways such as sitout, two-wheeler parking, and or accommodating water tanks and borewells. As per Vastu shastra the underground water tanks, sumps and borewells should be placed in the northeast direction.

Refer to these articles

Vastu for House South Facing-First Floor

3bhk House

30 40 house plan

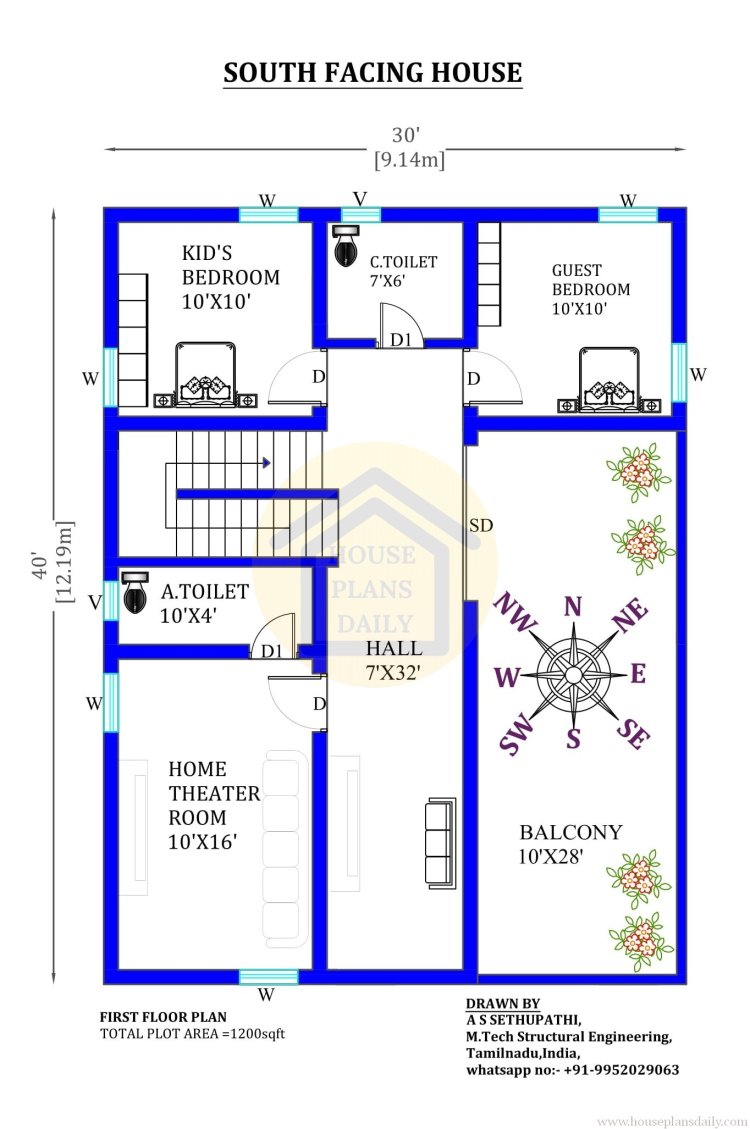

The above image is the first floor of in vastu south facing house. The first floor consists of a hall or living room, a home theatre room with an attached toilet, a kid's bedroom, a guest bedroom, a common toilet, and a balcony. The dimensions of each room are clearly mentioned with furniture positions. The furniture is placed as per Vastu Shastra principles.

The hall or living area is 7x32 feet in size and placed in the north-east direction. The home theatre room of the 40 30 house plan is 10x16 feet in size and placed in the southwest direction with an attached toilet. The attached toilet is 10x4 feet in size and placed in the northwest direction. The kid's bedroom is 10x10 feet in size.

In the east direction, a spacious balcony is attached to the hall or living room. This 3 bhk house planning is well planned to keep in mind the purpose of ventilation by providing large windows.

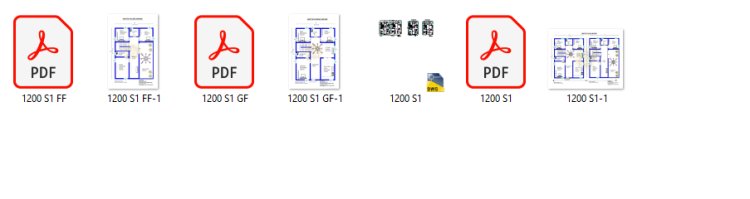

Download the plan for 3bhk house pdf and dwg files for free

house plans pdf

Download and obtain high-quality pdf files, images in jpeg format, and Autocad drawing dwg format of this plan of 3bhk house for free. Thank you for spending your valuable time visiting our website and citing this article. Kindly refer to more articles for gaining more ideas regarding house plans and designs in each direction. Contact us for customized house plan in, interior designs, and elevation designs
