40X45 G+1 5BHK East facing duplex house plans are given in this article. You can Download this east facing duplex house plan AUTOCAD file and PDF Format file for just RS 9. This duplex house design is very useful for people looking for East facing duplex house plan ideas. Click the download button below.

East facing duplex house plans| 5bhk home design
East facing duplex house plans| 5bhk home design
East facing duplex house plans| 5bhk home design
East facing duplex house plans| 5bhk home design

 East facing duplex house plans

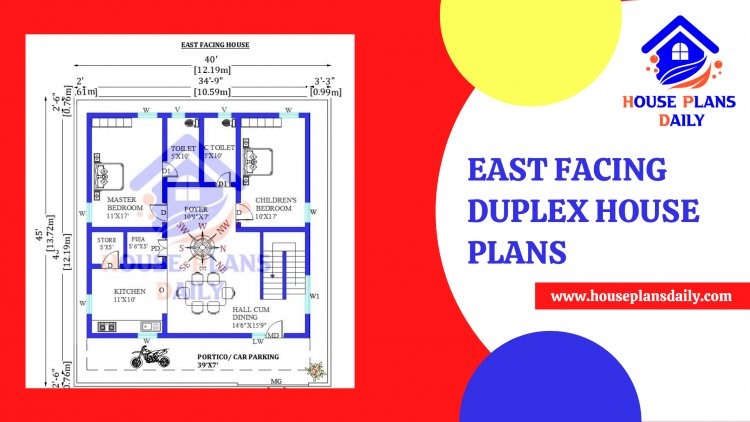

G+1 5BHK East facing duplex house plans-Ground Floor

 duplex house plans

G+1 5BHK East facing duplex house plans-Ground Floor

The total plot area of this east facing duplex house plan is 1800 sqft. The Build-up area of this duplex home design is 1390 sqft. On this duplex home design ground floor plan, the master bedroom is placed in the southwest direction with an attached toilet. The dimension of the Master bedroom is 11'X17'. The size of the attached toilet is 5'X10'.Children's bedroom or Kids bedroom is kept in the northwest direction of the house. Its dimension is 10'X17'.The common toilet is placed in the west direction. The size of the common toilet is 5'X10'.

The kitchen is available in the southeast direction of the house. As per vastu shastra making the kitchen in the southeast direction is very auspicious. The room size of the kitchen is 11'X10'. The storeroom is in the size 5'X5' which is available near the kitchen. Puja room is placed in the south direction and its dimension is 5'6"X5'.

Hall cum dining is placed in the northeast direction. The size of the hall cum dining is 14'6"X15'9". The size of the foyer is 10'9"X7'.The Staircase is available inside the house in the north direction. A portico or the car parking space is available outside of the house. And its size is 39'X7'.

G+1 5BHK East facing duplex house plans-First Floor

 East face duplex house plans

G+1 5BHK East facing duplex house plans-First Floor

The total land area of this east facing duplex house plan is 1800 sqft. The Build-up area of this duplex home design is 1390 sqft. On this duplex home design first floor plan, the master bedroom is available in the southwest direction with an attached toilet. The size of the Master bedroom is 11'X17'. The size of the attached toilet is 5'X10'.

The children's bedroom or Kid's bedroom is placed in the northwest direction of the house. Its dimension is 10'X17'.The common toilet is kept in the west direction. The size of the common toilet is 5'X10'.The Guest bedroom is available in the southeast direction of the house with an attached toilet. The size of the Guest bedroom is 11'X10'. The size of the attached toilet is 5'X10'.

The living room is placed in the northeast direction. The size of the Living room is 14'6"X15'9". The size of the foyer is 10'9"X7'.The Staircase is available inside the house in the north direction. The Balcony is placed in the east direction. And its size is 33'6"X5'.

Download G+1 5BHK East facing duplex house plans CAD Drawing and PDF File

floor plans dwg files

Download G+1 5BHK East facing duplex house plans CAD Drawing and PDF File

Download G+1 5BHK East facing duplex house plans CAD Drawing and PDF File by clicking the button below. You can easily download this duplex house design cad drawing file.

Thank you So much for downloading the House plan CAD drawing files from my website. Please refer your friends too if anyone needs house plan ideas. Also, read more articles on this website you get plenty of home design ideas to build your dream house

Download PDF and DWG Files
