Modern Villa Design is described in this article. The below-given villa design includes elevation design in the top, front, and side views.
Modern Villa Design | 2800 Sqft Villa with Elevation Design
The below-shown image is the ground and first floor plan of a east facing house plan vastu. The built-up area of the ground and the first floor is 1044 Sqft and 1044 Sqft respectively. The ground floor includes two houses with a hall or living area cum dining area, a master bedroom, a kitchen with utility area, and a common toilet whereas the first floor also includes two houses with a hall or living area, a master bedroom with an attached toilet, a kid's bedroom with an attached toilet, and a balcony.
house plans vastu east facing
Look into this Video for More House Plan Design Ideas - Subscribe to Our Channel
Vastu House Plans East Facing House-Ground Floor
east facing vastu house plan

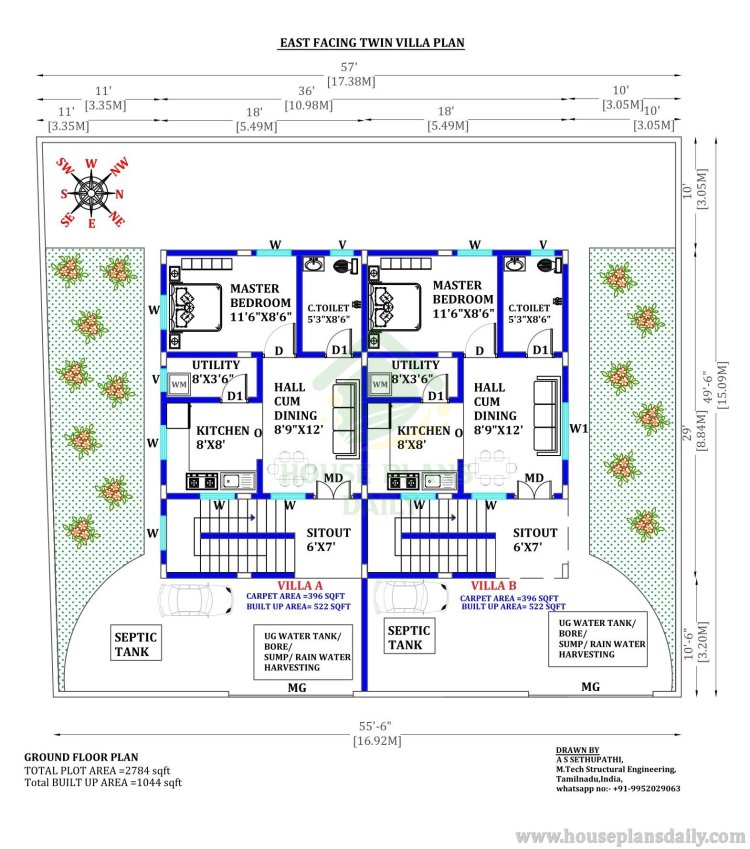

The above-shown image is the ground floor of a Villa design modern. It includes two houses with a hall cum dining area, a master bedroom, a kitchen with utility area, and a common toilet. The total plot area of this ground floor is 2784 Sqft and the built-up area is 1044 Sqft respectively. This is a duplex house design where a staircase is provided outside the house to access the first floor. All the dimensions of each room are mentioned on the plan. The Furniture is also placed as per Vastu for a clear idea.
The Hall or the living area cum dining area is 8.9x12 feet in size with the sofa placement facing east. The master bedroom is 11.6x8.6 feet in size with bed placement facing north. The kitchen is 8x8 feet in size with a utility area of size 8x3.6 feet. The common toilet is of size 5.3x8.6 feet in size.
The master bedroom attached toilet is 4x10 feet in size with the commode placement facing south as per Vastu shastra. This home design also includes a garden. All the column placements are shown for your reference. For ventilation purposes, large windows are provided in all the rooms. All the furniture is placed keeping in mind the Vastu shastra principles.
Modern Villa Design-First Floor
east facing vastu house plans

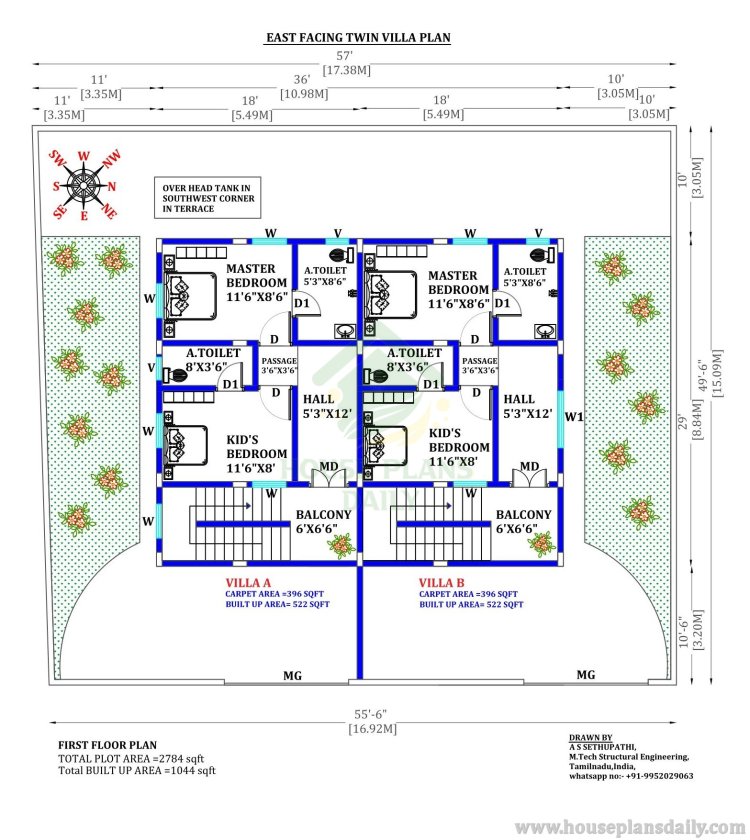

The above shown image is the first floor of a designing a villa . It includes a hall or living area, a master bedroom with an attached toilet, a kid's bedroom with an attached toilet, and a balcony. The total plot area of this floor is 2784 Sqft and the built-up area is 1044 Sqft respectively. The dimensions of each room are mentioned in the plan for a better idea. The Furniture items are also placed as per Vastu for reference.
The hall or living area is 5.3x12 feet in size. The master bedroom is 11.6x8.6 feet in size with bed placement facing north. The kid's bedroom is 11.6x8 feet in size as per Vastu compliance. The master bedroom attached toilet is 5.3x8.6 feet in size with the commode placement facing north and the kids' bedroom attached toilet is 8x3.6 feet in size.
The above home design also includes an open terrace. The staircase is provided inside the home for accessibility to the first floor. All the column placements are shown for your reference. For ventilation purposes, large windows are provided in all the rooms. All the furniture items are placed keeping in mind the Vastu shastra principles.
Refer to these articles
- East Face House Plans with Vastu | East Face House Plan Vastu
- 4500 Sqft Plans of House Designs | East and North Facing Vastu Plan
- East Facing House Vastu Plan | Design for the House
- House Plans Vastu East Facing | 30 40 House with Design
- 30 40 House Plan East Facing | 2bhk House Plan with Vastu
Normal House Front Elevation Design

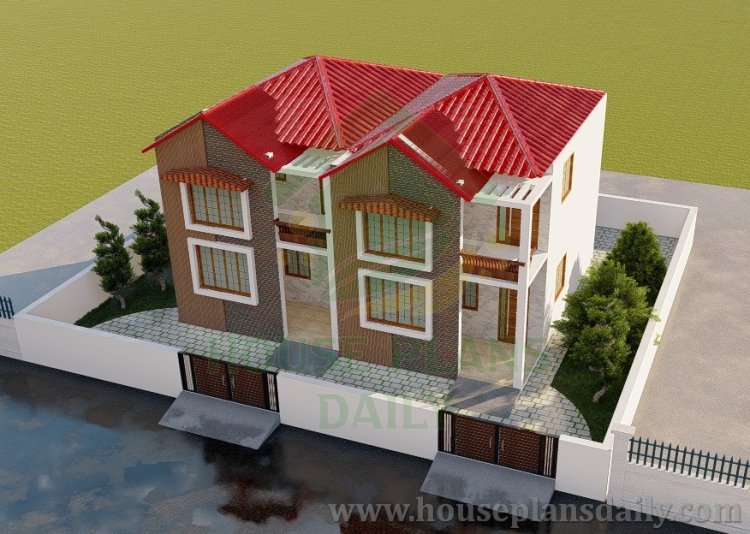

The image above shows the side, front, and top view of a designing home elevation. The design consists of two floors. The ground floor has a single house with a car parking area. The compound wall surrounds the house on all sides with a main gate at the front for easy access. The first floor consists of a house with a balcony that has elegant iron railings. The elevation design uses a combination of light and dark color paints and materials to give a stunning look. To allow enough light inside the house, long windows have been provided.

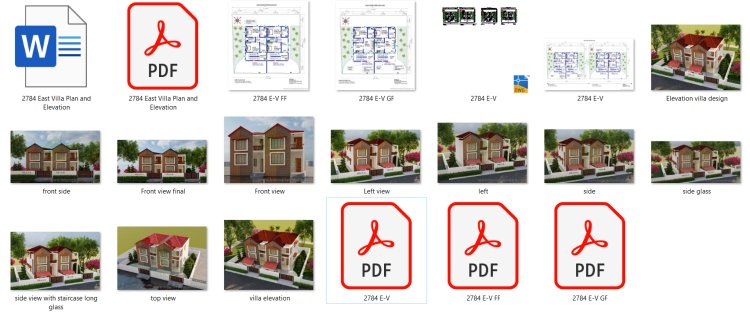

Download the designs for house front pdf and dwg files for free
Download and obtain high-quality pdf files, images in jpeg format, and Autocad drawing dwg format of this front elevation designs for houses for free. Thank you for spending your valuable time visiting our website and citing this article. Kindly refer to more articles for gaining more ideas regarding house plans and designs in each direction. Contact us for customized house plans, interior designs, and elevation designs.
