North Facing 27x40 House Plan

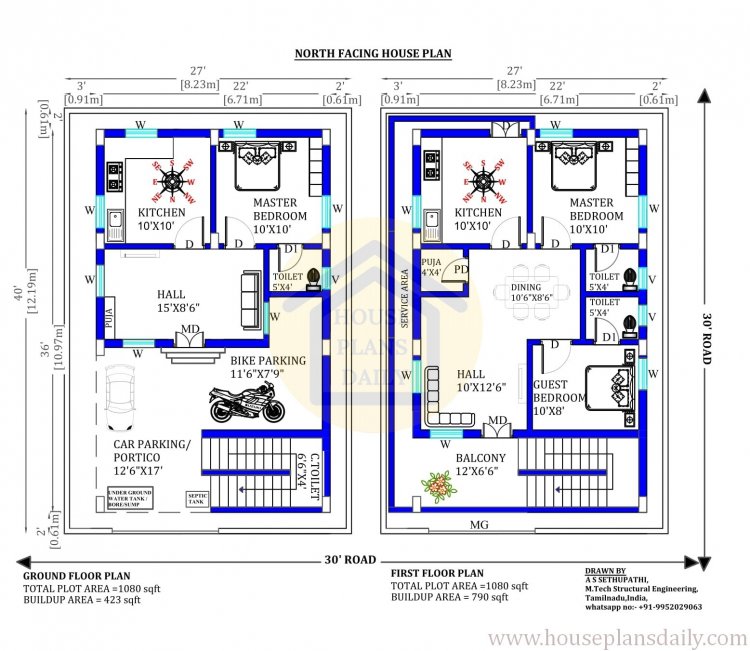

The above image is a north-facing 27x40 house plan with both ground and first floor plans. The built-up areas of the ground and first floors are 423 Sqft and 790 Sqft respectively. The ground floor consists of a spacious sit-out with multipurpose car and bike parking spaces. The dimensions of each room are clearly mentioned with furniture positions.

North Facing 27x40 House Plan-Ground Floor

North facing house plan

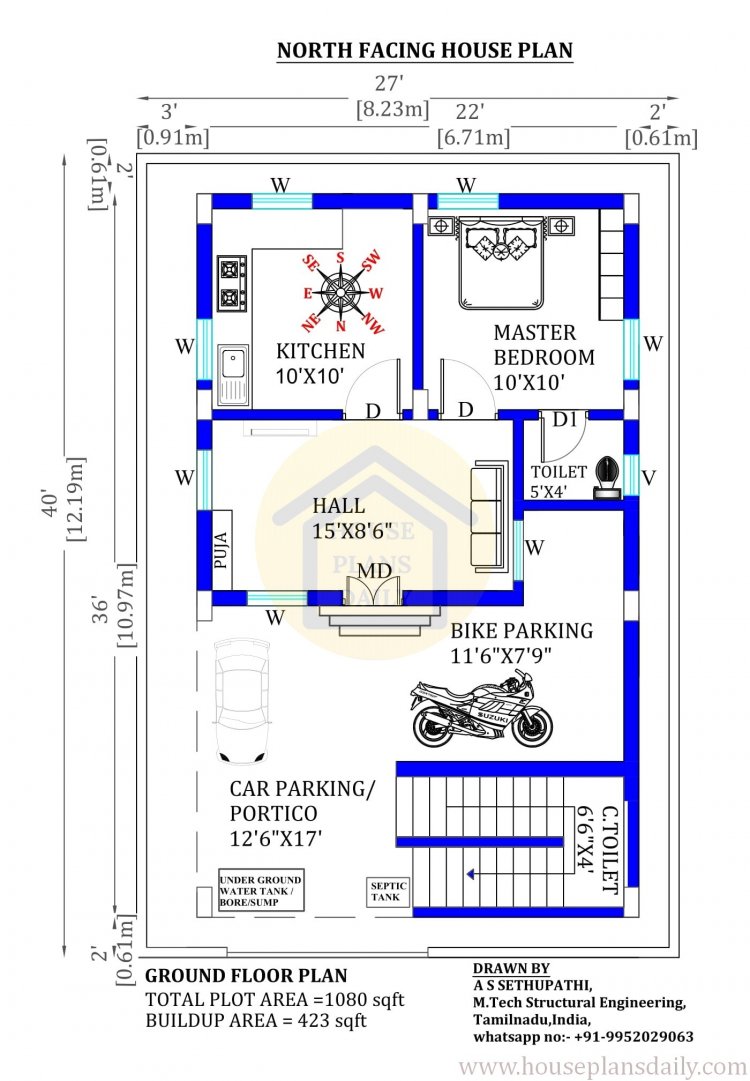

The above image is the ground floor plan of a north-facing house. The ground floor consists of a hall or living room, a master bedroom with an attached toilet, a kitchen, a common toilet, and a spacious bike and car parking area. The dimensions of each room are clearly mentioned with furniture positions.

The hall or living area is 15x8.6 feet in size and placed in the north direction. The master bedroom is 10x10 feet in size and placed in the southwest direction with an attached toilet. The attached toilet is 5x4 feet in size and placed in the southwest direction. The kitchen is 10x10 feet in size and placed in the east direction as per Vastu sastra.

The common toilet is 6.6x4 feet in size and placed below the staircase in the northwest direction. A spacious bike and car parking is planned for the house of 11.6x7.9 feet and 12.6x17 feet in size. As per Vastu shastra, the underground water tanks and sumps are placed in the north direction. The column positions are also clearly mentioned on the above house plan as per Vastu.

North Facing House Plan-First Floor

Simple Home Design North Facing

The above image is the first floor of a north-facing house plan as per vastu shastra. The first floor consists of a hall or living room, a master bedroom with an attached toilet, a guest bedroom, a common toilet, a kitchen, a dining area, and a spacious balcony. The dimensions of each room are clearly mentioned with furniture positions.

The hall or living area is 10x12.6 feet in size and placed in the north direction. The master bedroom is 10x10 feet in size and placed in the west direction with an attached toilet. The attached toilet is 5x4 feet in size and placed in the west direction. The guest bedroom is 10x8 feet in size and placed in the northwest direction. The kitchen is 10x10 feet in size and placed in the east direction as per Vastu Sastra. The spacious balcony area is 12x6.6 feet in size and placed in a north direction.

The common toilet is 5x4 feet in size and placed in the west direction. This home design is well planned, keeping in mind the purpose of ventilation by providing large windows.

Download 27x40 small house design north facing pdf and dwg files for free

Download and get high-quality pdf files, images in jpeg format and AutoCAD drawing Dwg format of a 790 sq ft house plans Vastu north facing for free. Thank you so much for reading this article. For obtaining more ideas on north-facing home designs refer to other articles.
