20x40 West Facing Duplex House Plans Per Vastu

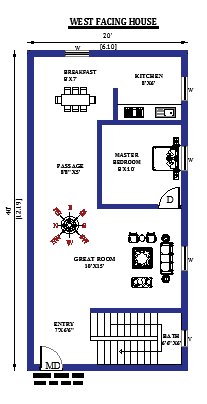

20x40 Ground Floor West Facing Duplex House Plans per Vastu

On the ground floor duplex small house plans, entry room, great room, passage, common bathroom, kitchen, breakfast area, and the master bedroom is available. You get a more modern duplex house plan from our website. The total constructed area of the ground floor is 800 SQFT with Vastu shastra. The staircase provides inside the home in the west south corner.

The dimension of the entry area is 7' x 6'6". The dimension of the common bathroom is 6'6" x 6'. The dimension of the great room is 10' x 15'. The dimension of the passage is 8'8" x 5'. The breakfast area dimension is 8' x 7'. The dimension of the kitchen is 8' x 6'. The dimension of the master bedroom is 8' x 10'.

The entry room is provided in the direction of the west face. The common bathroom is provided in the southwest direction. The great room is provided in the north direction. The passage is provided in the north direction. The kitchen is provided in the direction of the southeast. The breakfast area is provided in the direction of the northeast. This ground floor is given with furniture. The dimensions are given in the feet and inches.

20x40 First Floor West Facing Duplex House Plans per Vastu

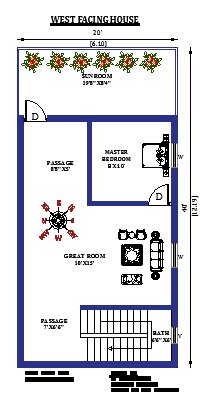

20x40 First Floor West Facing Duplex House Plans per Vastu

On the first-floor duplex small house plans, sunroom, great room passage, common bathroom, and the master bedroom is available. This is a simple small house plan with Vastu. The total constructed area of the first floor is 800 SQFT with Vastu shastra.

The dimension of the passage area is 7' x 6'6". The dimension of the common bathroom is 6'6" x 6'. The dimension of the great room is 10' x 15'. The dimension of the other passage is 8'8" x 5'. The dimension of the sunroom area is 19'8" x 8'4". The dimension of the master bedroom is 8' x 10'.

The passage is provided in the direction of the west face. The common bathroom is provided in the southwest direction. The great room is provided in the north direction. The other passage is provided in the north direction. The sunroom is provided in the east direction. This first floor is given with furniture details. The dimensions are given in feet and inches. The staircase provides near the passage.

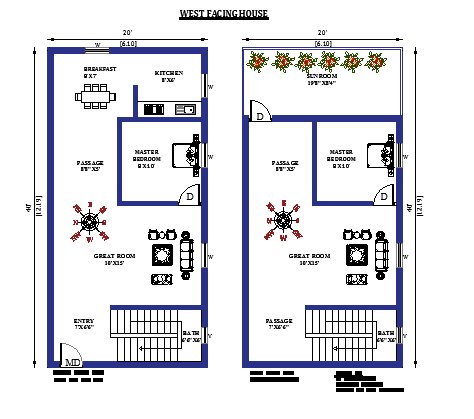

Download the West facing duplex house plans per Vastu files for free

Download the West facing duplex house plans per Vastu files for free

I hope you like these west-facing duplex house plans. We are providing free AutoCAD DWG drawing files, Image files, and PDF files. You can get those files for free. On our website, modern duplex house plans, small house plans, and house plans with Vastu are available.

If you want more house plans details check our www.houseplansdaily.com website. On this, we have given articles about west-facing, south-face, north-face, and east-face house plans. And also we have added books link. These books are specially designed for Vastu homes. Thank you for visiting our website.
