39x58 South Facing House Plan with Vastu

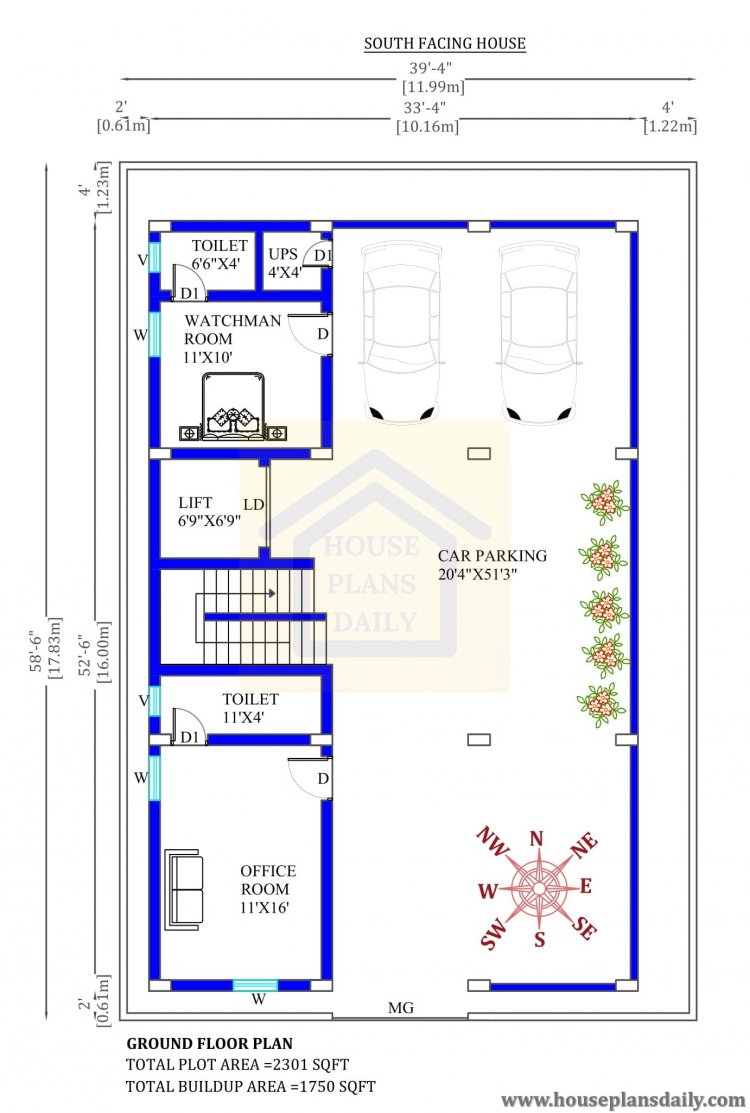

39x59 Ground floor South face house plan with vastu

On the ground floor south facing house plan with vastu, the car parking, lift, UPS room, office room with an attached toilet, and watchman room with an attached toilet are available. The total built-up area of the 4bhk south facing house plan with office room is 1750 sq ft.

The office room is placed in the direction of the west. And also, the attached toilet is placed in the direction of the west. The watchman room is placed in the direction of the northwest corner. The car parking is placed in the direction towards south and north.

The dimension of the office room is 11' x 20'6" and the attached bathroom size is 11' x 5'3". The dimension of the lift is 7'6" x 4'. The dimension of the UPS room is 3'6" x 4'. The dimension of the car parking is 20'4" x 51'3". The dimension of the watchman room is 11' x 10' and the attached toilet dimension is 11' x 5'.

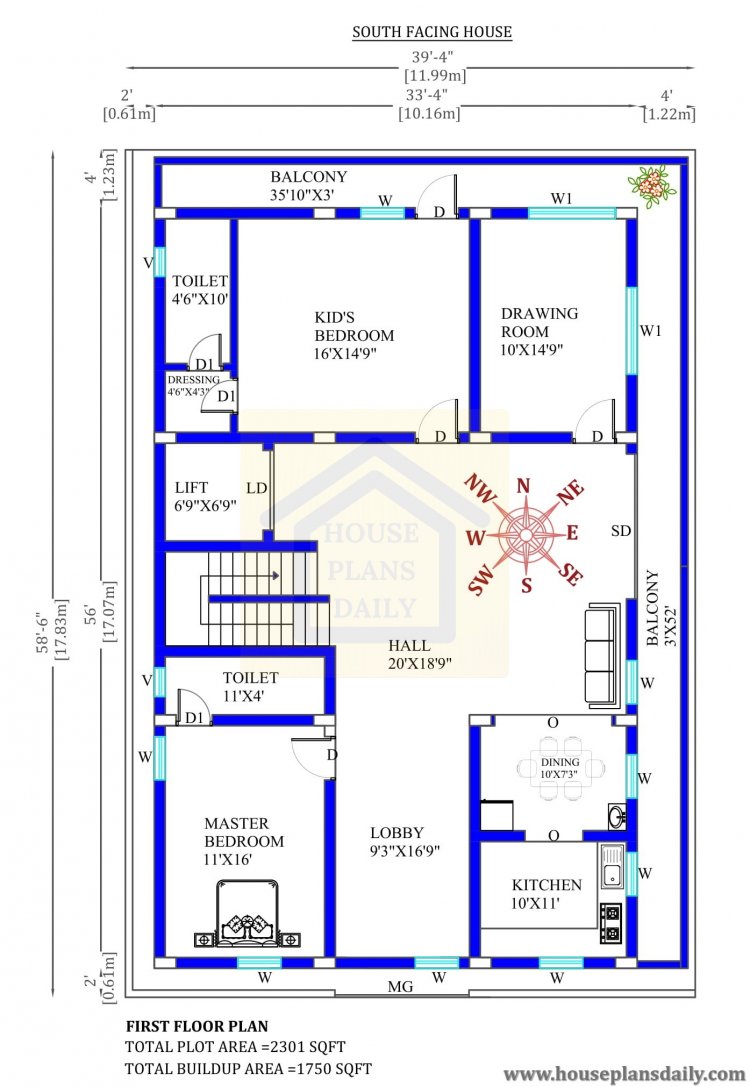

39x58 First floor South face house plan with vastu

39x58 First floor South face house plan with vastu

On the first floor south face house plan with vastu, kitchen, lobby, master bedroom with an attached toilet, lift, dining area, living hall, drawing room, kid’s room with an attached toilet, and balconies are available. This is a 4bhk south facing house plan.

The kitchen is placed in the direction of the southeast.  The dining area is placed in the direction of the east.  The lobby is placed in the direction of the living hall. The master bedroom with an attached toilet is placed in the direction of the southwest.  The lift is placed in the direction of the west.  The drawing room is placed in the direction of the northeast.  The kid’s room is placed in the direction of the north.  And also, an attached toilet is placed in the direction of the northwest with a dressing room.

The dimension of the kitchen is 10’ x 11’.  The dimension of the dining area is 10’ x 7’3”.  The dimension of the lobby is 9’3” x  16’9”.  The dimension of the master bedroom is 11’ x 16’.  And also, the attached toilet size is 11’ x 4’.  The dimension of the living hall is 20’ x 18’9”.  The dimension of the lift is 6’9” x 6’9”.  The dimension of the kid’s room is 16’ x 14’9”.  Attached bathroom dimension is 4’6’ x 10’.  The dimension of the dressing area is 4’6” x 4’3”.  The dimension of the drawing room is 10’ x  14’9”.  The dimension of the side and back side balconies are 3’ x 52’ and 35’10” x 3’ respectively.

39x58 Second floor South face house plan with vastu

On the second floor of south facing house plan with puja room, kitchen, lobby, master bedroom with an attached toilet, lift, store room, living hall, drawing room, kids room with an attached toilet, and balconies are available.

The kitchen is placed in the direction of the southeast.  The storeroom area is placed in the direction of the south.  The lobby is placed in the direction of the living hall. The master bedroom with an attached toilet is placed in the direction of the southwest.  The lift is placed in the direction of the west.  The puja room is placed in the direction of the northeast.  The kids room is placed in the direction of the north.  And also, an attached toilet is placed in the direction of the northwest with a dressing room. It is a 4bhk south facing house plan.

The dimension of the kitchen is 10’ x 16’.  The dimension of the storeroom is 4’ x 10’.  The dimension of the lobby is 9’3” x  6’.  The dimension of the master bedroom is 11’ x 16’.  And also, the attached toilet size is 11’ x 4’.  The dimension of the living hall is 20’ x 18’9”.  The dimension of the lift is 6’9” x 6’9”.  The dimension of the kid’s room is 16’ x 14’9”.  The attached bathroom dimension is 4’6’ x 10’.  The dimension of the dressing area is 4’6” x 4’3”.  The dimension of the puja is 10’ x  14’9”.  The dimension of the side and backside balconies are 3’ x 52’ and 35’10” x 3’ respectively.

39x58 Second floor South face house plan with vastu

Download the south face house plan with vastu PDF files, Image files, and AutoCAD files for free

Download the south face house plan with vastu PDF files, Image files, and AutoCAD files for free

We hope you like this house. On our website, you can get more house designs with vastu shastra. Small house plans, east facing house plans, west facing, south facing, and north facing house plans are available on this website. Thank you for visiting our websites.
