30 by 40 House Plans | Design for Duplex House South Facing

30 by 40 House Plans | Design for Duplex House South Facing

house planning 30x40 is shown in this article. The pdf and dwg files can be downloaded for free. The download button is available below. For downloading more free house with plans refer to more articles. The plot area of the ground and first floor is 1200 Sqft and 1200 Sqft respectively. The Staircase is provided inside the house. The given house design duplex and consists of two floors i.e ground and the first floor.

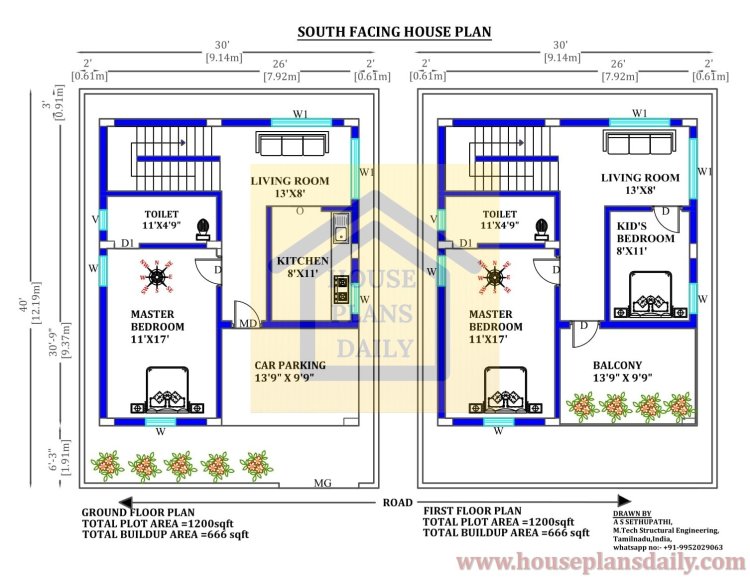

30 by 40 House Plans

30 by 40 house plans with car parking

Ground Floor

Design for Duplex House South Facing modern duplex house design

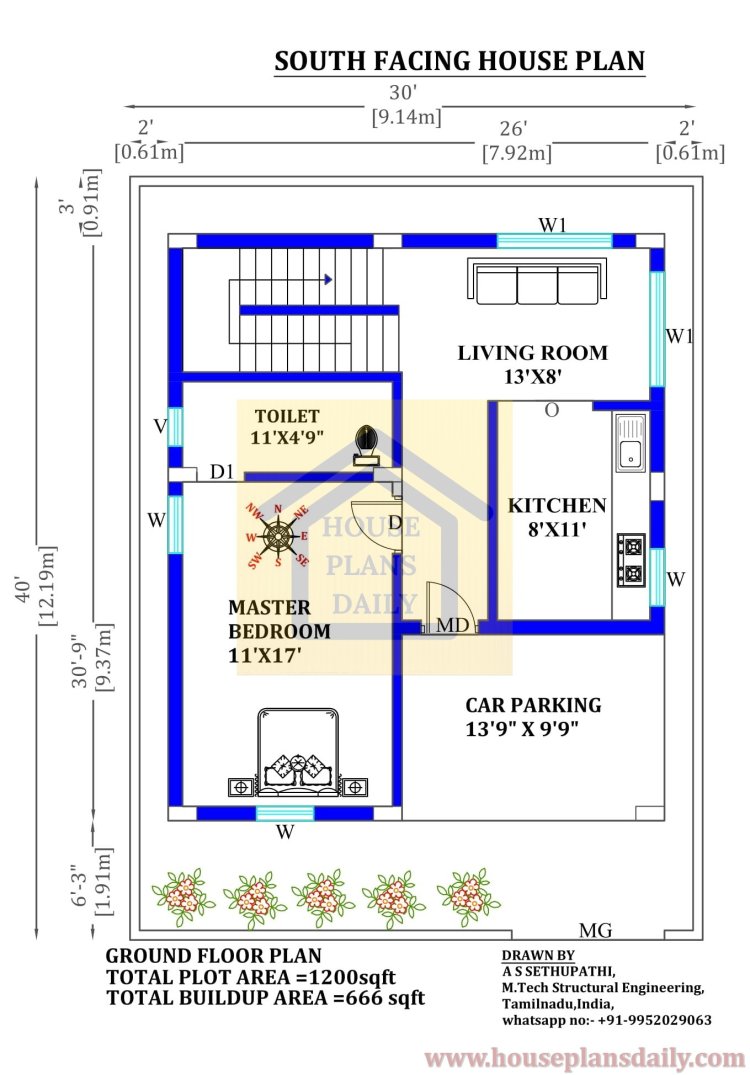

The above image is the ground floor of the 30 40 house plan. The ground floor consists of a hall or living room, a master bedroom with an attached toilet, a kitchen, and a car parking space. The dimensions of each room are clearly mentioned with furniture positions.

The hall or living area is 13x8 feet in size and placed in the north-east direction. The master bedroom of the house design for duplex is 11x17 feet in size and placed in the southwest direction with an attached toilet. The attached toilet is 11x4.9 feet in size and placed in the northwest direction. The kitchen is 8x11 feet in size and placed in the southeast direction as per Vastu Shastra principles.

The spacious car parking is 13.9x9.9 feet in size. The car parking space can be used in multiple ways such as sitout, two-wheeler parking, and or accommodating water tanks and borewells. As per Vastu shastra the underground water tanks, sumps and borewells should be placed in the northeast direction.

Refer to these articles

30 by 40 House Plans with Car Parking South Facing-First Floor

house plans for 30x40

south face house vastu plan

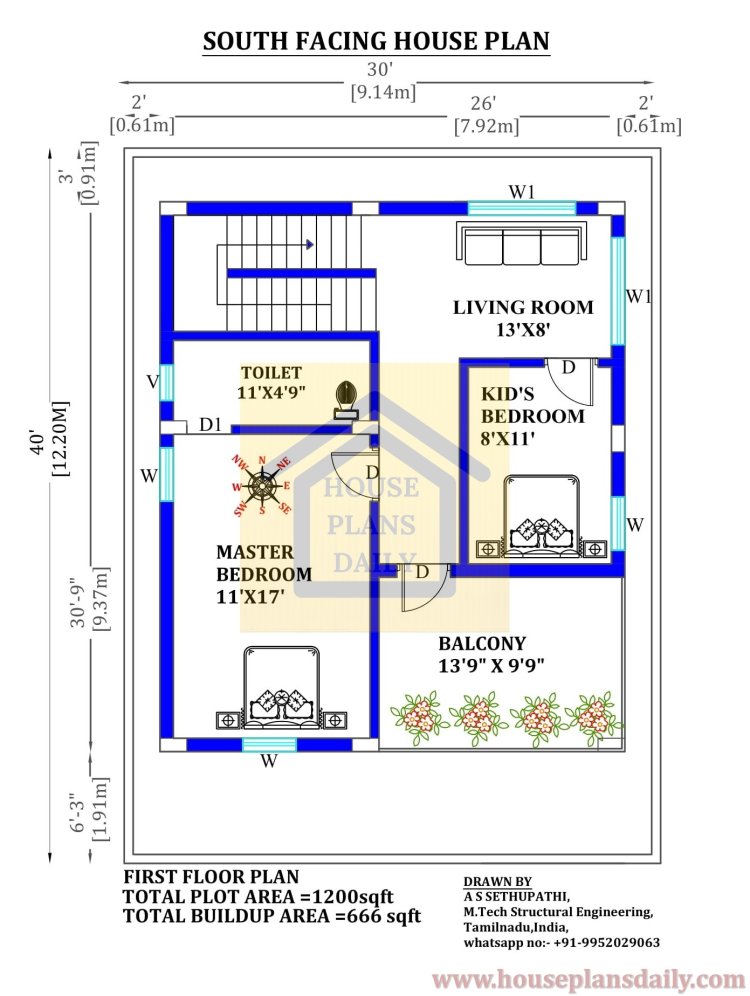

The above image is the first floor of 30 x 40 house plans. The first floor consists of hall or living room, a master bedroom with an attached toilet, a kid's bedroom, and a balcony. The dimensions of each room are clearly mentioned with furniture positions. The furniture is placed as per Vastu Shastra principles.

The hall or living area is 13x8 feet in size and placed in the north-east direction. The master bedroom of the design for duplex house is 11x17 feet in size and placed in the southwest direction with an attached toilet. The attached toilet is 11x4.9 feet in size and placed in the northwest direction. The kid's bedroom is 8x11 feet in size.

In the east direction, a spacious balcony is attached to the hall or living room. This east-facing house vastu plan is well planned to keep in mind the purpose of ventilation by providing large windows.

Download the house duplex design pdf and dwg files for free

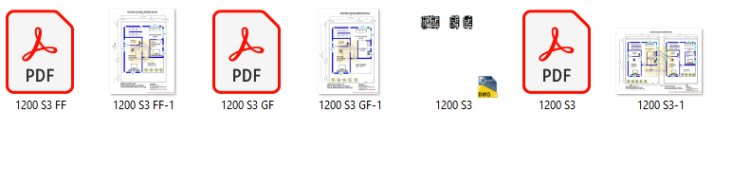

30 by 40 house plans with car parking pdf

Download and obtain high-quality pdf files, images in jpeg format, and Autocad drawing dwg format of this south face house vastu plan for free. Thank you for spending your valuable time visiting our website and citing this article. Kindly refer to more articles for gaining more ideas regarding house plans and designs in each direction. Contact us for customized house plan in, interior designs, and elevation designs.
