G+2 TINY HOUSE PLAN DESIGN DRAWING

G+2 Tiny House Plan Design

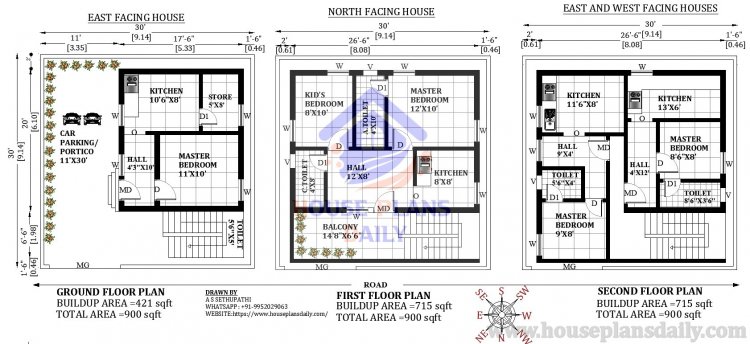

These three tiny floor plan is drafted as per vastu shastra. The ground floor plan has a buildup area of 421 sqft. The first-floor plan has a buildup area of 715 sqft. The second-floor area has a built-up area of 715 sqft. Click this link to buy the book with more wonderful house plans as per vastu shastra. Click here.

The ground floor plan of this 30'x30' house plan consists of three sections bedroom, kitchen, hall, and toilet. This plan is as per Vastu shastra. The ground floor plan has a hall, master bedroom, store, hall, and car parking. The first-floor plan has a hall, kid's bedroom, master bedroom, toilet, and balcony. The second-floor plan has a kitchen, master bedroom, hall, and toilet.

30'X30' EAST FACING GROUND FLOOR TINY HOUSE PLAN

G+2 Tiny House Plan

30'X30' EAST FACING GROUND FLOOR TINY HOUSE PLAN

This is a 30'x30' house plan. This is an east-facing tiny house plan with a single bedroom. This is a 1bhk tiny house plan. This plan consists of a master bedroom, kitchen, hall, and toilet. The car parking has a size of 11'x30'. The master bedroom has a size of 11'x10'. The hall has a size of 4'3"x10'.

The hall is seen in the east direction. The master bedroom is available in the west direction. The store is in the southwest direction. The kitchen is in the southeast direction. The car parking is in the east direction. The toilet seen in the outside area is in the northwest direction.

30'x30' NORTH FACING FIRST FLOOR TINY HOUSE PLAN

This is a north-facing tiny house plan. It is a 2bhk house plan. The plan consists of the master bedroom, kid's bedroom, toilet, balcony, kitchen, and hall. This 30'x30' house plan has a master bedroom of 12'x10'. The tiny house plan has also a balcony of 14'6"x6'6". The kitchen has a size 8'x8'.

House Plan Design

30'x30' NORTH FACING FIRST FLOOR TINY HOUSE PLAN

The master bedroom has a size of 12'x10'. The kitchen has a size of 8'x8'. The kitchen has a size of 8'x8'. The toilet has a size of 4'x5'. The hall has a size of 12'x8'. The balcony is seen on the front side. The balcony is in the north direction. The kitchen is in the west direction. The kid's bedroom is in the southeast direction. The hall is in the east direction.

30'X30' WEST FACING SECOND FLOOR HOUSE PLAN

Tiny Home Plan Design

30'X30' WEST FACING SECOND FLOOR HOUSE PLAN

This is a west-facing house plan as vastu shastra. This 2bhk house plan with two house plans. The build-up area of the plan is 715 sqft. The total area of the plan is 900sqft. The plan has 2 house plans which have a master bedroom, kitchen, hall, and toilet. One house plan is east facing house plan and another house plan is west facing house plan.

The size of the master bedroom is 8'6"x8'. The size of the kitchen is 11'6"x8'. The toilet has a size of 8'6"x3'6". The hall has a size of 9'x4'. A staircase is also seen in near the toilet. Another house plan is also seen with a master bedroom with a size of 9'x8'. The kitchen has a size of 13'x6'. The hall has a size of 9'x4'.

The hall is in the east direction. The kitchen is in the southeast direction. The master bedroom is available in the northwest direction. Another master bedroom is available in the west direction. The kitchen is available in the direction of the southeast direction.

DOWNLOAD THE EAST AND WEST TINY HOUSE PLAN AUTOCAD AND PDF FILES FOR FREE

floor plan pdf free download

You can download this drawing Autocad DWG and PDF files for free. After downloading the RAR file you get the above house plan drawing Autocad, pdf files, and image format. Thank you for downloading my house plan drawings.
