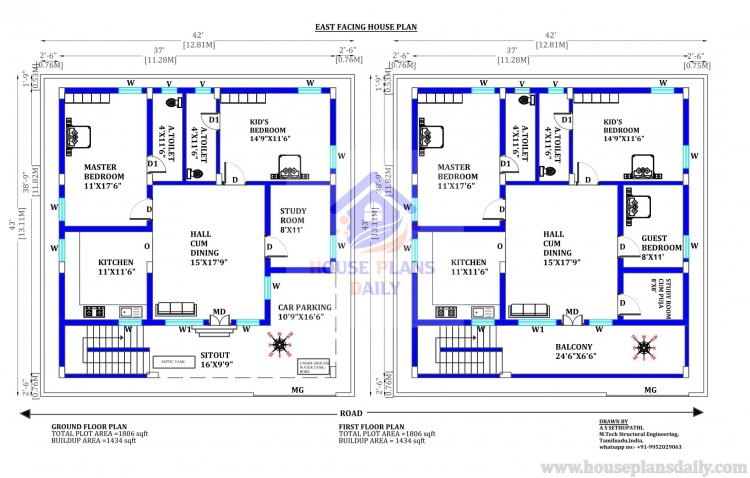

A House plan with structural drawing is given in this article. This is an 1800 sqft house plan. In this 1800 sqft house design, two houses are available. On this ground floor, car parking is available. Two bedrooms are available on the ground floor, and 3 bedrooms are available on the first floor. The total plot area is 1806 sqft, and the built-up area of the ground floor and first floor is 1434 sqft.

structural drawing for house plans

home floor plans with structural drawings

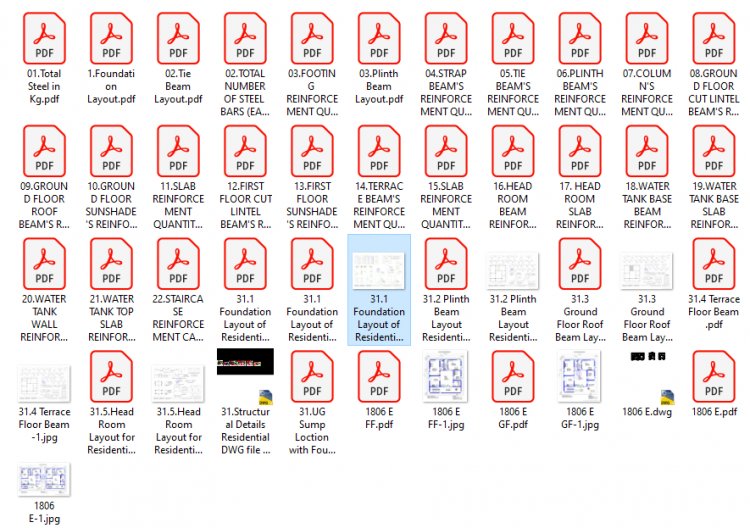

In this 1800sqft house plan with structural details, the plinth beam layout, foundation layout, water tank wall reinforcement, staircase reinforcement, UG sump, and its foundation layout, beam reinforcement, base slab, total steel in kg, footing reinforcement, column reinforcement, sunshade reinforcement, headroom beam reinforcement, headroom slab reinforcement, terrace floor beam, ground floor cut lintel beam reinforcement, tie beam reinforcement, and other details are given.

1800 sq ft house plan with car parking | *1800 sqft house plan with car parking | 1800 sq ft 2 floor house plans | 1800 sq ft house plans single floor | 1800 square feet house plans india | east facing vastu plan | east facing house plan | east facing house plans for 30x40 site | east facing house plan 2bhk | east facing house plans kerala style |east facing house plan 3bhk | east facing house vastu plan 2bhk | simple 1800 sq ft house plans | 1800 sq ft 2bhk house plan with dining and car parking 1800sqft house plans with structural details

1800 Sq Ft 2 Floor House Plans

plany doma so strukturnym chertezhom

house plan drawing samples

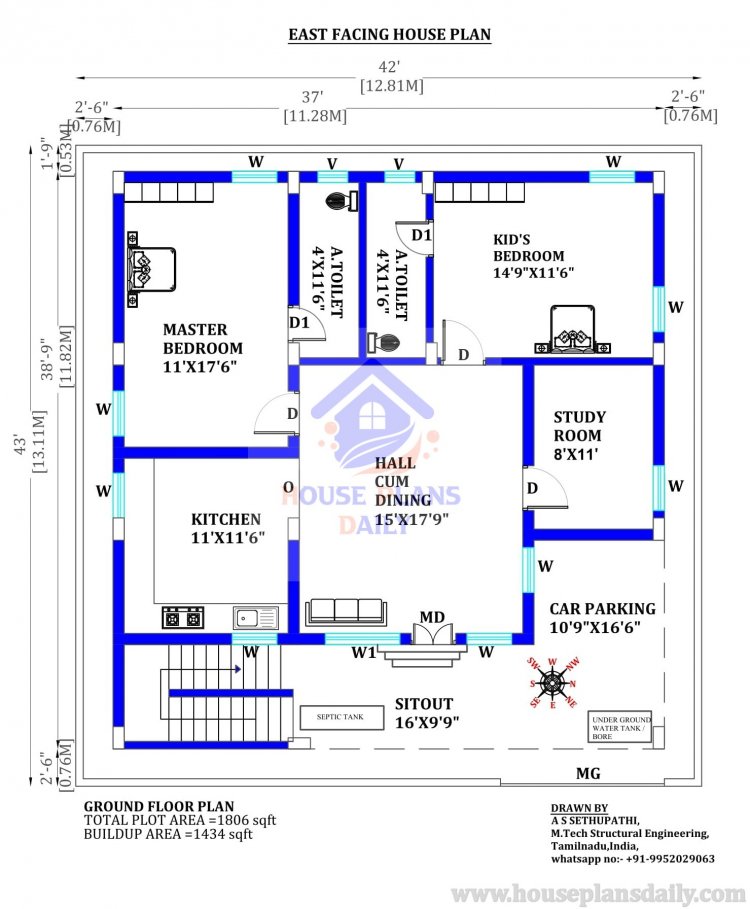

The length and breadth of the 1800 sq ft modern house plans are 42’ and 43’ respectively. On this ground floor 1800 sq ft house plan with car parking, the living room cum dining, kitchen, car parking, sit out, kid’s bedroom with an attached toilet, master bedroom with an attached toilet, and study room is available.

structural drawing details

house plans structural drawing

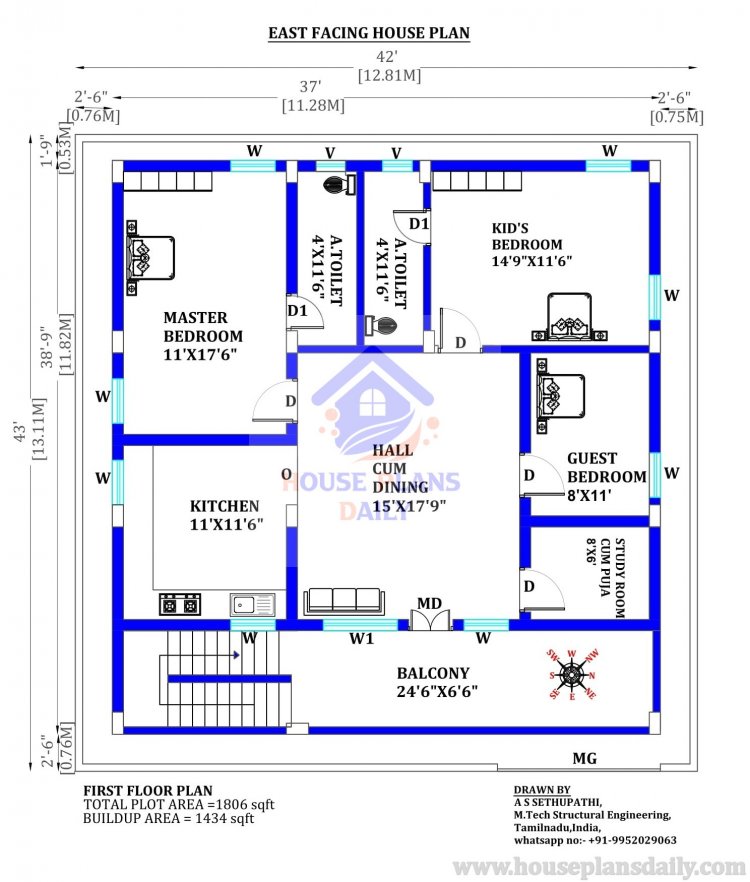

On this first floor 1800 sq ft house plans with 3 bedrooms, the living room cum dining, kitchen, master bedroom with an attached bathroom, kid’s bedroom with an attached bathroom, guest room, study room, and balcony is available.

1800sqft House Plans with Structural Details

planos de casas con dibujo estructural

structural design for residential house pdf

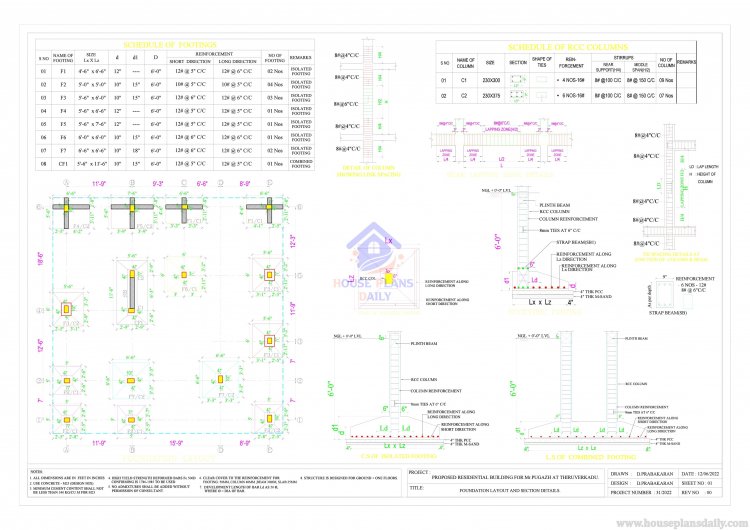

In the above image, a foundation detail drawing is given. The dimensions of each foundation layout, section drawing, and footing detail drawing are given. The length, breadth, depth, ties, reinforcement details, strap beam, tie spacing, and other details are given.

House Plans Structural Drawing

sanrachanaatmak draing ke saath ghar kee yojana

structural design for residential house

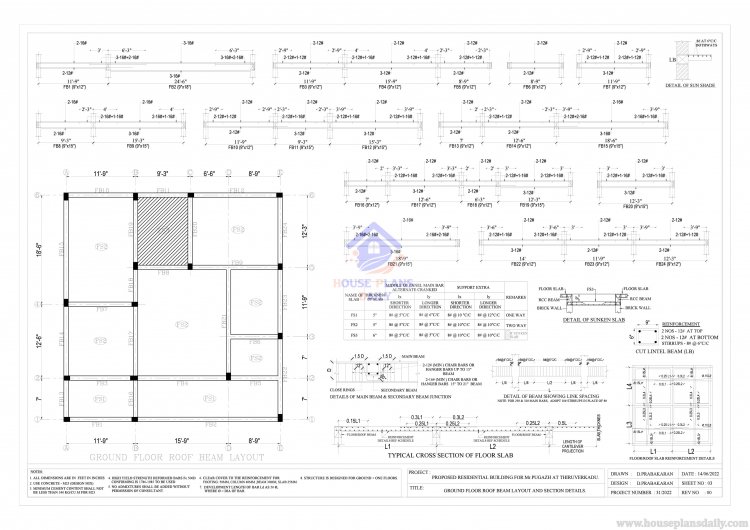

In the above image, the floor slab detail drawings are given. Here, the thickness of each slab, and its shorter direction, and longer directions are given. A detail of the beams is given. Each beam reinforcement detail is mentioned.

This kind of house is useful to people who are searching for house plans with structural drawings, 1800 Sqft house plans, 1800 sqft house design, 1800 sqft home plans, 1800sqft house plans with structural details, 1800sqft house plans with structural drawings, 1800 sq ft 2 floor house plans, 1800 sq ft house plans with 3 bedrooms, 1800 sq ft house plans single floor, simple 1800 sq ft house plans, 1800 sq ft house plans 3 bedrooms, 1800 sq ft modern house plans, 1800 sq ft 3 bedroom ranch house plans, and ranch house plans 1800 to 2000 sq ft.
