Normal Village House Design 3 floors | North Facing House

Normal Village House Design 3 floors is shown in this article. The plan of the 3-storey house is elaborated below. For more house plans visit www.houseplansdaily.com.

DUPLEX HOUSE PLANS Sep 17, 2024 0 5374 Add to Reading List

Normal Village House Design 3 floors | North Facing House

Normal Village House Design 3 floors | North Facing House

House plan two bedroom is shown in this article. The pdf and dwg files can be downloaded for free. The download button is available below. For downloading more free house plans refer to more articles. The built-up area of the ground, the first, second, and third floors is 582 Sqft, 832 sqft, 832 sqft, and, 832 sqft respectively. The Staircase is provided inside the house. The given simple house plan consists of five floors.

Normal Village House Design 3 floors

village normal house front elevation designs

Normal Village House Design-Ground Floor

North Facing House

house design 3 floor

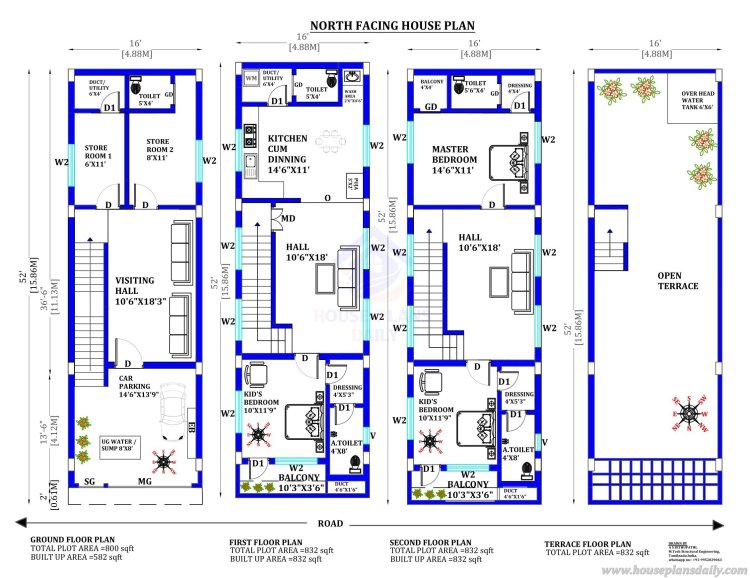

The above image is the ground floor of the duplex house design. The ground floor consists of a visiting hall, a store room 1, a store room 2 with an attached toilet, and spacious car parking. The dimensions of each room are clearly mentioned with furniture positions.

The visiting hall is 10.6x18.3 feet in size. The store room 1 is 6x11 feet in size. The store room 2 is 8x11 feet in size placed in south west direction. The car parking is 14.6x13.9 feet in size.

The car parking space can be used in multiple ways such as sitout, two-wheeler parking, and or accommodating water tanks and borewells. As per Vastu shastra the underground water tanks, sumps and borewells should be placed in the northeast direction.

Refer to these articles

North Facing House Plan-First Floor

house design 3 floor

north facing house plan

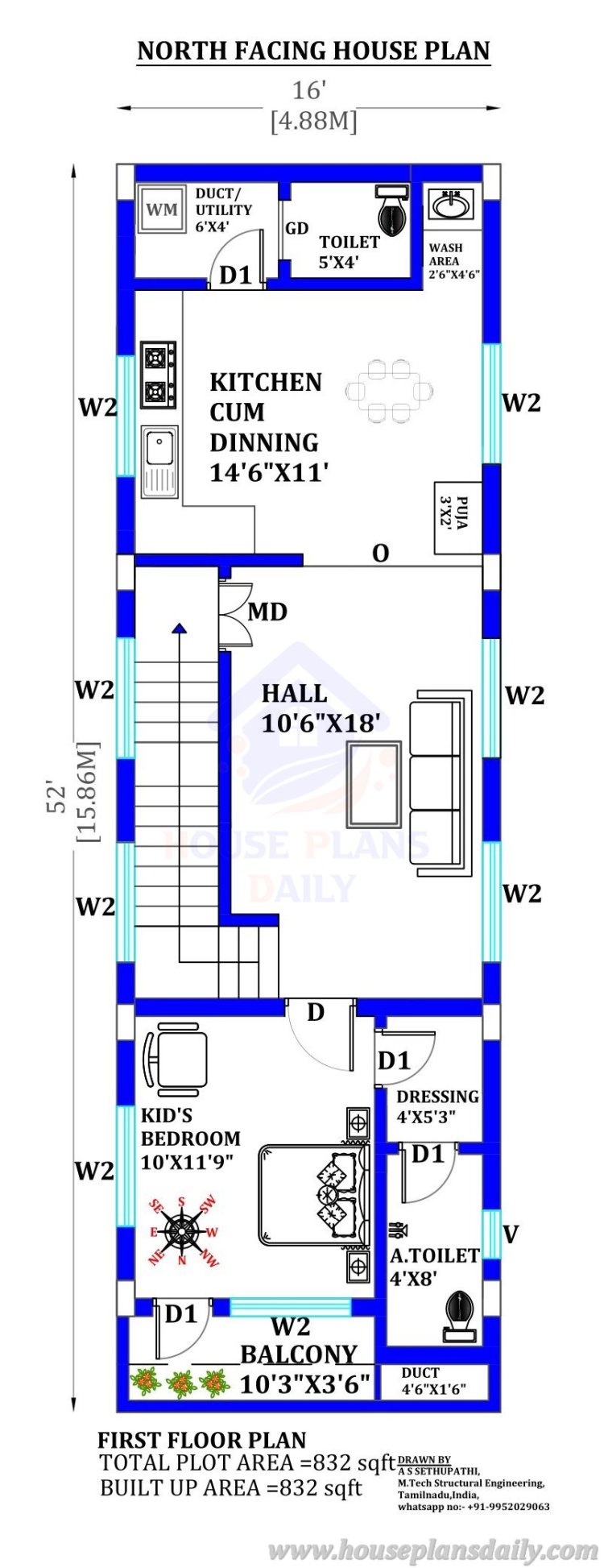

The above image is the first floor of house plan 3bhk. The first floor consists of a hall or living room, a kid's bedroom with an attached toilet, a kitchen cum dining with a utility area, and a balcony. The dimensions of each room are clearly mentioned with furniture positions. The furniture is placed as per Vastu Shastra principles.

The hall or living area is 10.6x18 feet in size and placed in the north-east direction. The kid's bedroom is 10x11.9 feet in size and placed in the southwest direction with an attached toilet. The attached toilet is 4x8 feet in size and placed in the northwest direction. The kitchen cum dining is 14.6x11 feet in size. The utility area is 6x4 feet in size.

In the east direction, a spacious balcony is attached to the hall or living room. This 3 floor house design is well planned to keep in mind the purpose of ventilation by providing large windows.

3 Floor House Design in India-Second Floor

simple house plan

house plan two bedroom

The above image is the second floor of north facing house plan vastu. The second floor consists of a hall, a master bedroom with an attached toilet, a kid's bedroom with an attached toilet, and a balcony. The dimensions of each room are clearly mentioned with furniture positions. The furniture is placed as per Vastu Shastra principles.

The hall or living room is 10.6x18 feet in size. The master bedroom is 14.6x11 feet in size and placed in the southwest direction with an attached toilet. The attached toilet is 5.6x4 feet in size and is placed in the northwest direction. The kid's bedroom is 10x11.9 feet in size with an attached toilet of size 4x8 feet.

In the north direction, a spacious balcony is attached to the kid's bedroom. This simple house design is well planned to keep in mind the purpose of ventilation by providing large windows.

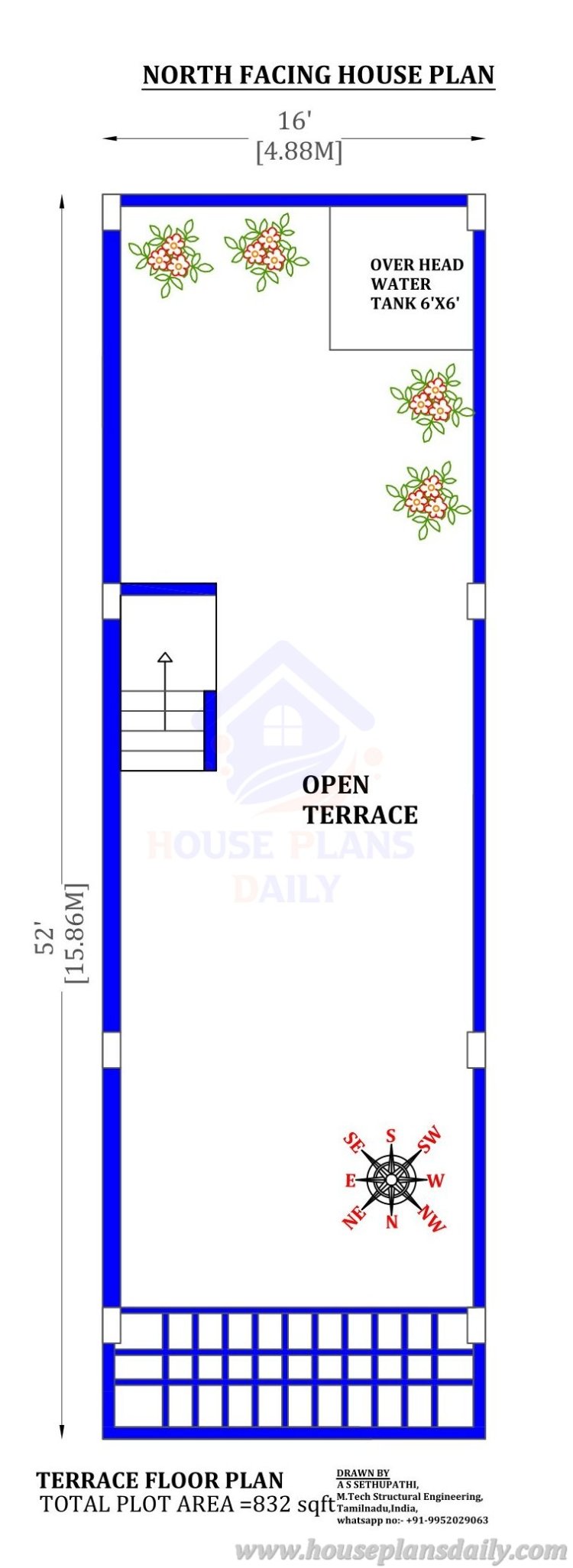

Terrace Floor Plan

terrace floor plan

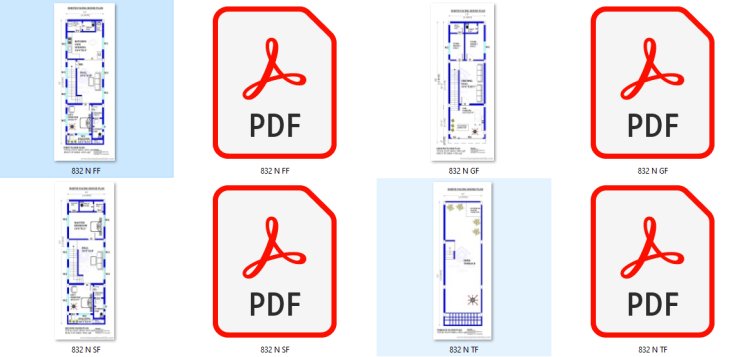

Download the house design pdf and dwg files for free

house plans pdf

Download and obtain high-quality pdf files, images in jpeg format, and Autocad drawing dwg format of this home design for free. Thank you for spending your valuable time visiting our website and citing this article. Kindly refer to more articles for gaining more ideas regarding house plans and designs in each direction. Contact us for customized house plan in, interior designs, and elevation designs

Download the Files Now
