west facing house plan with vastu is shown in this article. The pdf and dwg files can be downloaded for free. The download button is available below. For downloading more free house plans refer to more articles. The built-up area of the ground and first floor is 1060 Sqft and 1060 Sqft respectively. The Staircase is provided outside the house. The given house designs small consists of two floors i.e ground and the first floor.

Vastu House Plan for West Facing

vastu west facing house plan

Vastu for West Facing House Plan -Ground Floor

Ghar Ka Naksha

west face house plan vastu

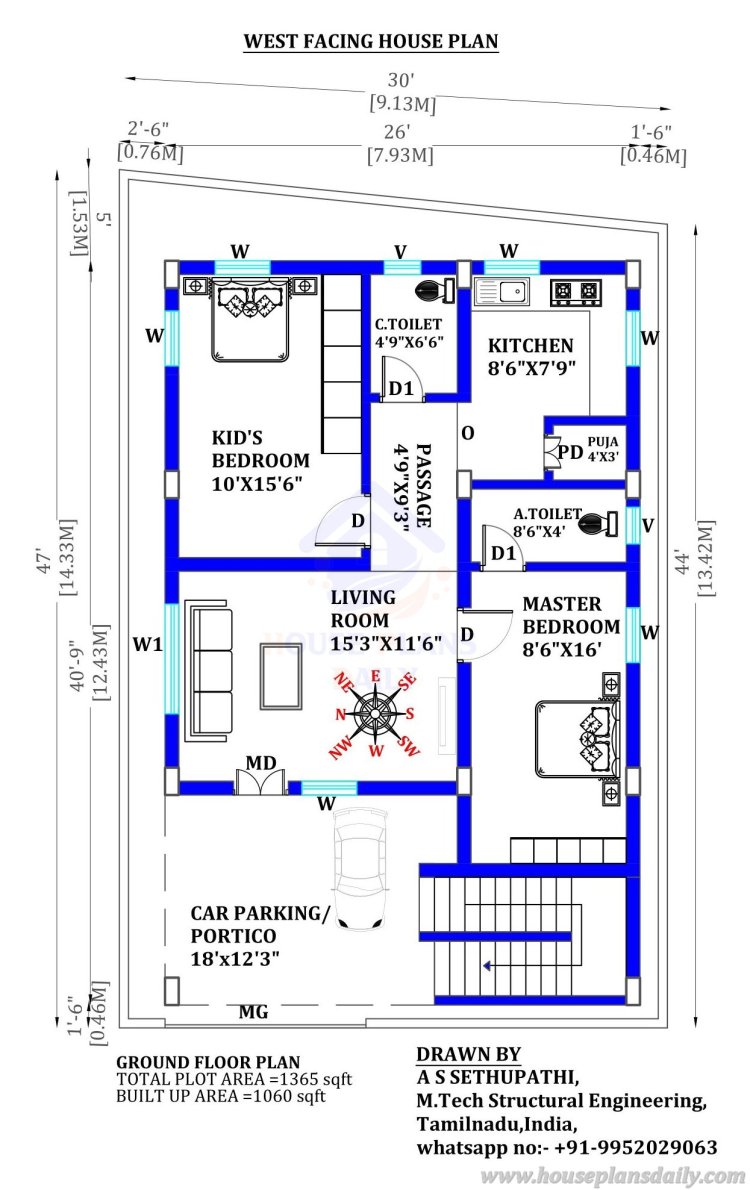

The above image is the ground floor of the house designs simple. The ground floor consists of a hall or living room, a master bedroom with an attached toilet, a kid's bedroom, a puja room, a kitchen, a common toilet, and car parking. The dimensions of each room are clearly mentioned with furniture positions.

The hall or living area is 15.3x11.6 feet in size and placed in the north-west direction. The master bedroom of the ghar ka naksha (घर का नक्शा) is 8.6x16 feet in size and placed in the southwest direction with an attached toilet. The attached toilet is 8.6x4 feet in size and placed in the northwest direction. The kid's bedroom is 10x15.6 feet in size. The kitchen is 8.6x7.9 feet in size and placed in the southeast direction as per Vastu Shastra principles.

The spacious car parking is 18x12.3 feet in size. The car parking space can be used in multiple ways such as sitout, two-wheeler parking, and or accommodating water tanks and borewells. As per Vastu shastra the underground water tanks, sumps and borewells should be placed in the northeast direction.

Refer to these articles

Vastu West facing House Plan-First Floor

house designs small

west facing house plan with vastu

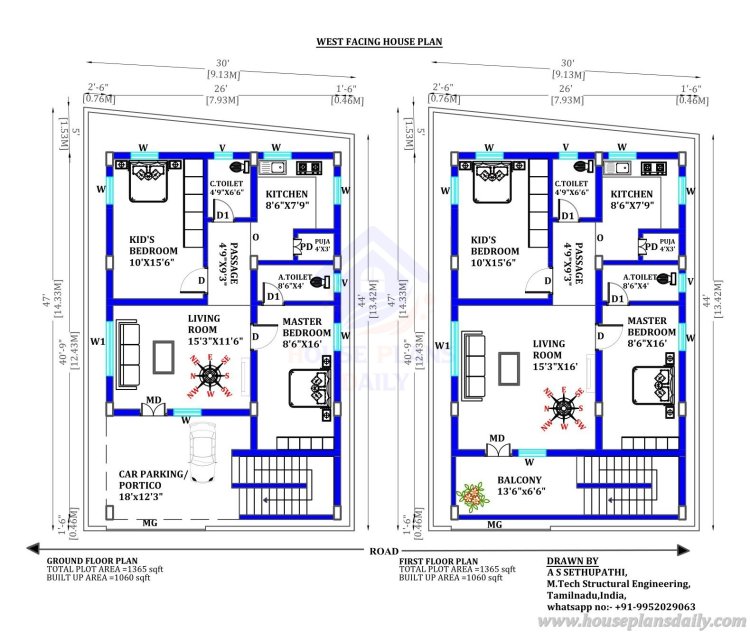

The above image is the first floor of makan naksha. The first floor consists of hall or living room, a master bedroom with an attached toilet, a kid's bedroom, a puja room, a kitchen, a common toilet, and a spacious balcony. The dimensions of each room are clearly mentioned with furniture positions. The furniture is placed as per Vastu Shastra principles.

The hall or living area is 15.3x11.6 feet in size and placed in the north-west direction. The master bedroom of the simple ghar ka naksha is 8.6x16 feet in size and placed in the southwest direction with an attached toilet. The attached toilet is 8.6x4 feet in size and placed in the northwest direction. The kid's bedroom is 10x15.6 feet in size. The kitchen is 8.6x7.9 feet in size and placed in the southeast direction as per Vastu Shastra principles.

In the east direction, a spacious balcony is attached to the hall or living room. This plan of 2 bhk house is well planned to keep in mind the purpose of ventilation by providing large windows.

Download the ghar ka naksha pdf and dwg files for free

simple ghar ka naksha photo

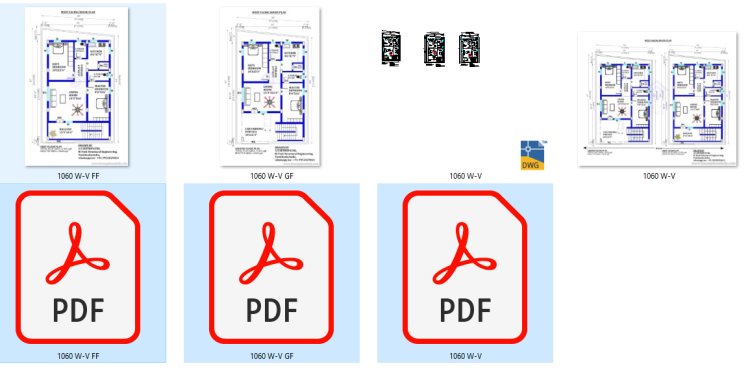

Download and obtain high-quality pdf files, images in jpeg format, and Autocad drawing dwg format of this ghar ka naksha photo for free. Thank you for spending your valuable time visiting our website and citing this article. Kindly refer to more articles for gaining more ideas regarding house plans and designs in each direction. Contact us for customized house plans, interior designs, and elevation designs.

Download the Files Now
