22x40 South Facing Vastu Home Design

22x40 south facing vastu home design is shown in this article.  The total area of the ground floor and first floors are 880 sq ft and 880 sq ft respectively.  This is G+ 1 south facing house design.  The length and breadth of the south facing plan are 22’ and 40’ respectively.  This is a 4bhk south facing house plan. This house plan is included with puja room. The staircase is provided outside the home.

22x40 South Facing Vastu Home Design
22x40 South Facing Vastu Home Design
22x40 South Facing Vastu Home Design
22x40 South Facing Vastu Home Design

south face house design

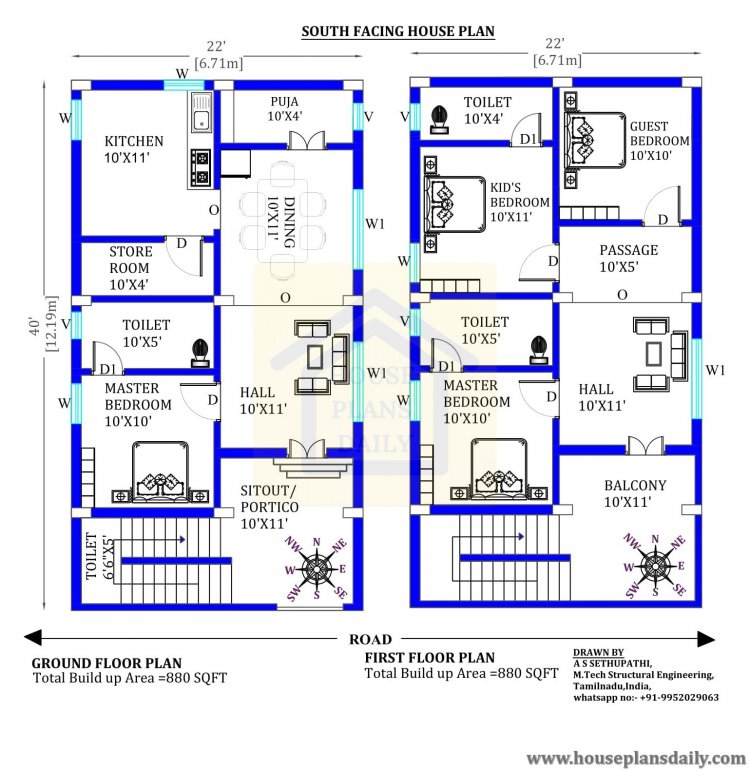

22x40 Ground floor south facing vastu home design

south plan as per vastu

22x40 Ground floor south facing vastu home design

On the ground floor of the south facing plan, the kitchen, storeroom, master bedroom with an attached toilet, living room, sit-out,  portico, dining area, puja room, and common bathroom are available.  Each dimension is given in the feet and inches.  This ground floor plan is given with furniture details. On these files, south facing floor plans are given.

The kitchen is placed in the direction of the northwest corner. The dining area is placed in the direction of the east corner.  The master bedroom is placed in the direction of the west corner.  The attached bathroom is placed in the direction of the west.  The living room is placed in the direction of the east corner. The storeroom is placed in the direction of the west. The common bathroom is placed in the direction of the west which is placed under a staircase.  The sit-out is placed in the direction of the southeast.

The dimension of the kitchen is 10’ x 11’. The dimension of the master bedroom is 10’ x 10’ and the attached bathroom size is 10’x 5’.  The dimension of the living room is 10’ x 11’.  The dimension of the common toilet is 6’6” x 5’. The dimension of the storeroom is 10’ x 4’.  The dimension of the dining area is 10’ x 11’.  The dimension of the sit-out is 10’x 11’. The dimension of the puja room is 10’ x 4’.

22x40 First floor south facing vastu house design

south home design

22x40 First floor south facing vastu house design

On the first floor of the south-facing house design, the master bedroom with an attached toilet, balcony, passage, kid’s room with an attached toilet, guest room, and living room are available.  Each dimension is given in the feet and inches.  This first-floor plan is given with furniture details. From our website, you can get more south-facing house plans.

The kid’s room is placed in the direction of the west. The kid’s bathroom is placed in the direction of the northwest corner.  The passage is placed in the direction of the east corner.  The master bedroom is placed in the direction of the west corner.  The attached bathroom is placed in the direction of the west.  The living room is placed in the direction of the east corner. The balcony is placed in the direction of the southeast.  The guest room is placed in the direction of the northeast corner.

The dimension of the kid’s room is 10’ x 11’.  The dimension of the kid’s toilet is 10’ x 4’. The dimension of the master bedroom is 10’ x 10’ and the attached bathroom size is 10’x 5’.  The dimension of the living room is 10’ x 11’.  The dimension of the guest room is 10’ x 10’. The dimension of the passage is 10’ x 5’.  The dimension of the balcony is 10’ x 11’.

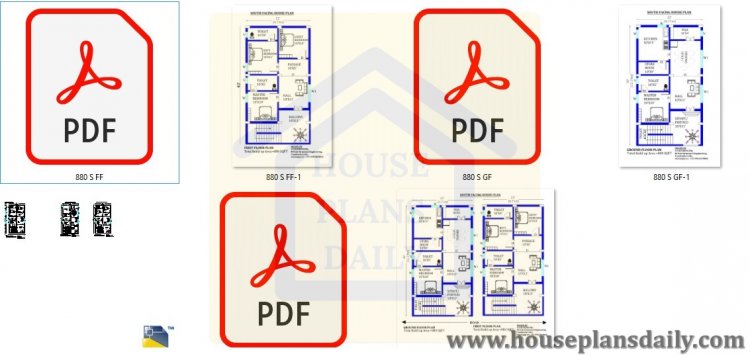

Download the south facing house plan of the Image files, PDF files, and AutoCAD 2D DWG drawing files for free

free home design pdf

The above south facing house plan is very simple and compact for the people who searching for under 700 sq ft.  And also, this south facing house plan is given in vastu.

People believe that south facing house plans are allows positive energy to the home.  Most people hope that vastu is a good one for the house.  We are providing all house plans with vastu shastra.

According to the vastu, we have added more house plans on our website.  1bhk house plans, 2bhk house plans, 3bhk house plans, Duplex house plans, G+ 1 south facing house plans, G+ 2 house plan, small house plans, and 4bhk houses plans are available on our website. Thank you so much for visiting our website and downloading the CAD drawings and PDF files.

Download PDF and DWG Files
