40x60 South Facing Home Plan Design As Per Vastu Shastra

40x60 south facing home plan design as per vastu shastra is given in this article. The length and breadth of the south facing house plan with the office are 40' and 60' respectively. This is a G+ 2 south facing house plan building. The total built up area of the ground floor, first floor, and the second floor is 1750 SQFT. The total area of the land is 2400 SQFT.

40x60 South Facing Home Plan Design As Per Vastu Shastra
40x60 South Facing Home Plan Design As Per Vastu Shastra
40x60 South Facing Home Plan Design As Per Vastu Shastra
40x60 South Facing Home Plan Design As Per Vastu Shastra
40x60 South Facing Home Plan Design As Per Vastu Shastra

40x60 South Facing Home Plan Design As Per Vastu Shastra

40x60 Ground Floor South Facing Home Plan Design As Per Vastu Shastra

40x60 South Facing Home Plan

40x60 Ground Floor South Facing Home Plan Design As Per Vastu Shastra

On the 40x60 ground floor south facing house plan drawing, the car parking, lift, office room with an attached toilet, watchman room with an attached toilet, and ups room are available. The construction area of the ground floor is 1750 SQFT. Each dimension is given in the feet and inch. It is a G+ 2 south facing house plan.

The car parking is located in the direction of the east face. The lift is provided in the direction of the west. The office room is placed in the direction of the west and an attached bathroom is placed in the direction of the west. The watchman room is placed in the direction of the west and an attached bathroom is placed in the direction of the northwest corner. The UPS room is placed in the direction of the north.

The dimension of the car parking is 20'4" x 51'3". The dimension of the lift is 6' x 6'. The dimension of the office room is 11' x 16'. The dimension of the office room toilet is 11' x 4'". The dimension of the watchman room is 11' x 10'. And also, an attached bathroom dimension is 6'6" x 4'. The dimension of the UPS room is 4' x 4'.

40x60 First Floor South Facing Home Plan Design As Per Vastu Shastra

40x60 South Facing House Plan

40x60 First Floor South Facing Home Plan Design As Per Vastu Shastra

On the 40x60 first floor south facing house plan drawing, the living hall, passage, lift, kitchen, dining area, master bedroom with an attached toilet, drawing room, kid's room with an attached toilet, lift, and balcony are available. The construction area of the ground floor is 1750 SQFT. Each dimension is given in the feet and inch. It is a G+ 2 south facing house plan.

The common lift located in the direction of the east face. The passage is provided in the direction of the south. The kitchen is placed in the direction of the southeast corner and the dining area is placed in the direction of the east. The master bedroom is placed in the direction of the west and an attached bathroom is placed in the direction of the west.

The living area is placed in the direction of the east. The personal lift is provided inside a home in the direction of the west. The kid's room is placed in the direction of the north and an attached toilet is placed in the direction of the west. The drawing room is placed in the northeast corner. The balcony is placed in the direction of the north.

The dimension of the common lift is 6' x 6'. The dimension of the passage is 9'8" x 13'4". The dimension of the kitchen is 10' x 11'. The dimension of the dining area is 10' x 7'3". The dimension of the master bedroom is 11' x 10'. The dimension of the attached toilet is 4'6" x 10'. The dimension of the living area is 20' x 23'6". The dimension of the personal lift is 3'9" x 3'9". The dimension of the kid's room is 16' x 10'. The dimension of the attached toilet is 4'6" x 10'. The dimension of the drawing room is 10' x 10'. The dimension of the balcony is 35'10" x 3'.

40x60 Second Floor South Facing Home Plan Design As Per Vastu Shastra

40x60 South Facing Home Plan Design

40x60 Second Floor South Facing Home Plan Design As Per Vastu Shastra

On the 40x60 second floor south facing home plan design as per vastu shastra, passage, kitchen, common lift, master bedroom with an attached toilet, hall cum dining area, personal lift, pooja room, kid's room with an attached toilet, and balconies are available. In this, the south facing house plan with pooja room is given. The dimension and direction details are given in the above drawing.

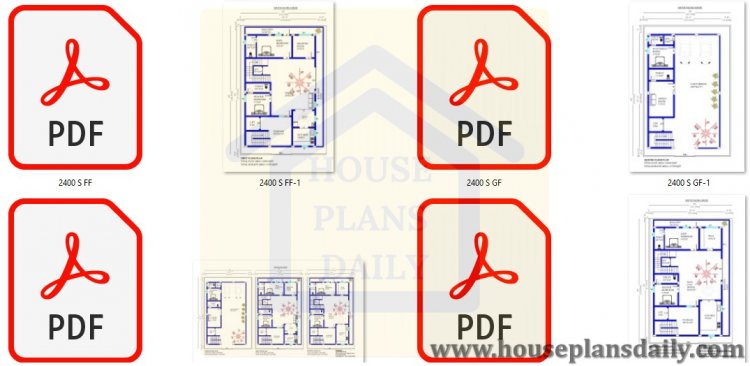

Download South Facing House Plan Drawings

download south facing home plan

Download South Facing House Plan Drawings

From our website, you can get free AutoCAD 2D drawing files, image files, and PDF files. On our website, east facing, north facing, south facing, and west facing house plans are available with Vastu shastra. One bedroom house plan, 2BHK small house plans, 3BHK modern duplex house plan, and small home designs are available. Each house is designed with Vastu shastra. These external and internal links are given for south facing house plan drawing.  Thank you for visiting our website.
