40×60 Beautiful South facing Vastu home plan

Free Download south facing vastu home plan

Advertisement

40×60 south facing vastu home plan is given in this article. This is a 4bhk south facing house plan. This is G+ 2 south facing house plan with an office room. The total built up area of each floor is 1750 sq ft. The total land area is 2400 sq ft. Lift is available on this plan.

2400 S1 pdf 1 1024x641 - 40x60 Beautiful South facing Vastu home plan
40×60 south facing vastu home plan

Advertisement

40×60 Ground floor South facing Vastu home plan

2400 S1 GF 1 4 699x1024 - 40x60 Beautiful South facing Vastu home plan
40×60 ground floor south facing vastu home plan

On the ground floor south facing vastu home plan, the car parking, lift, UPS room, office room with an attached toilet, and watchman room with an attached toilet are available. The total built up area of the south facing house plan with office room is 1750 sq ft.

The office room is placed in the direction of the west. And also, the attached toilet is placed in the direction of the west. The lift is placed in the direction of the southwest corner. The UPS room is placed in the direction of the east. The watchman room is placed in the direction of the northwest corner. The car parking is placed in the direction towards south and north.

The dimension of the office room is 11′ x 20’6″ and the attached bathroom size is 11′ x 5’3″. The dimension of the lift is 7’6″ x 4′. The dimension of the UPS room is 3’6″ x 4′. The dimension of the car parking is 20’4″ x 51’3″. The dimension of the watchman room is 11′ x 10′ and attached toilet dimension is 11′ x 5′.

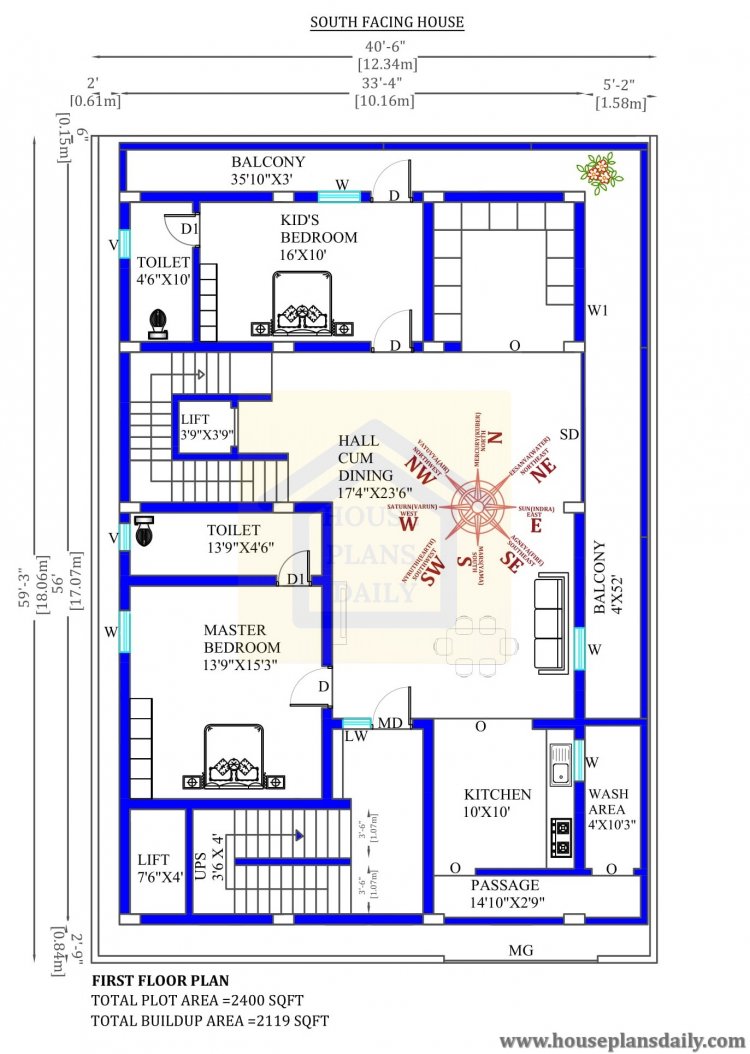

40×60 First floor South facing Vastu home plan

2400 S1 FF pdf 1 1 728x1024 - 40x60 Beautiful South facing Vastu home plan
40×60 First floor South facing Vastu home plan

Advertisement

Advertisement

On the first floor south facing vastu home plan, lift, UPS room, passage, kitchen, wash area, master bedroom with an attached toilet, balcony, hall cum dining area, personal lift, kid’s room with an attached toilet, and kid’s balcony are available. It is a 4bhk south facing house plan.

Advertisement

The kitchen is placed in the direction of the southeast. The wash area is available in the east direction. The lift and UPS rooms are placed in the direction of the west. The master bedroom is placed in the direction of the west with an attached toilet. The hall cum dining area is placed in the direction of the south. The kid’s room is placed in the direction of the north. The personal lift is placed in the direction of the west.

The dimension of the office lift is 7’6″ x 4′. The dimension of the UPS room is 3’8″ x 4′. The dimension of the kitchen is 10′ x 10′. The dimension of the wash area is 4′ x 10’3″. The dimension of the passage is 14’10” x 2’9″. The dimension of the master bedroom is 13’9″ x 15’3″. And also, the attached toilet room is 13’9′ x 4’6″. The hall cum dining area dimension is 17’4″ x 23’6″. The dimension of the balcony is 4′ x 5’2″. The dimension of the kid’s room is 16′ x 10’3″. And also, an attached toilet size is 4’6′ x 10′. The personal lift size is 3’9″ x 3’9″. The dimension of the kid’s balcony is 35’10’ x 3′.

40×60 Second floor South facing Vastu home plan

2400 S1 SF 1 727x1024 - 40x60 Beautiful South facing Vastu home plan
39×59 Second floor South facing Vastu home plan

Advertisement

Advertisement

On the second floor south facing vastu home plan, lift, UPS room, passage, kitchen, wash area, master bedroom with an attached toilet, balcony, hall cum dining area, puja room, personal lift, kid’s room with an attached toilet, and kid’s balcony are available. It is a 4bhk south facing house plan. South facing house plan with puja room is available on this floor.

The kitchen is placed in the direction of the southeast. The puja room is placed in the direction of the northeast corner. The wash area is available in the east direction. The lift and UPS rooms are placed in the direction of the west. The master bedroom is placed in the direction of the west with an attached toilet. The hall cum dining area is placed in the direction of the south. The kid’s room is placed in the direction of the north. The personal lift is placed in the direction of the west.

The dimension of the office lift is 7’6″ x 4′. The dimension of the UPS room is 3’8″ x 4′. The dimension of the kitchen is 10′ x 12’9″. The dimension of the wash area is 4′ x 10’3″. The dimension of the passage is 14’10” x 2’9″. The dimension of the master bedroom is 13’9″ x 15’3″. And also, the attached toilet room is 13’9′ x 4’6″. The hall cum dining area dimension is 17’4″ x 23’6″. The dimension of the balcony is 4′ x 5’2″. The dimension of the kid’s room is 16′ x 10′. And also, an attached toilet size is 4’6′ x 10′. The personal lift size is 3’9″ x 3’9″. The dimension of the puja room is 10′ x 10′. The dimension of the kid’s balcony is 35’10’ x 3′.

Download the South facing vastu home plan PDF, Image, and AutoCAD files for free

files 9 1024x496 - 40x60 Beautiful South facing Vastu home plan
Download the South facing vastu home plan PDF, Image, and AutoCAD files for free

You get more house plans from our website which helps to get your dream house. East, west, south, and north direction house plans are available on this website.

If you are not able to get the DOWNLOAD button, then click the EXIT version. After reloading, you will get a normal version. Then you can download the all files for free. Thank you for visiting our website.
