In this article, the commercial floor plans with north facing plans are given. This is a G+ 4 story building. The total plot area of this commercial plan is 2050 sqft.
Meera
Sep 12, 2024
Commercial Floor Plan
In this article, the commercial floor plans with north facing plans are given. This is a B+ 4 story building. The total plot area of this commercial plan is 2050 sqft. Car parking area is provided in the base floor. On the ground and first floor, commercial area is provided. On the second and third floor, house plans are available. Each floor consists of two houses. For more details, check out our website www.houseplansdaily.com.
Commercial Plan | North Facing Plan
commercial building plan
In this commercial plan, the basement floor built-up area is 1804 sqft. A basement floor is provided for car parking with lift. A wide area is available to park the cars, and bikes. The ground floor and first floors are provided for commercial area.

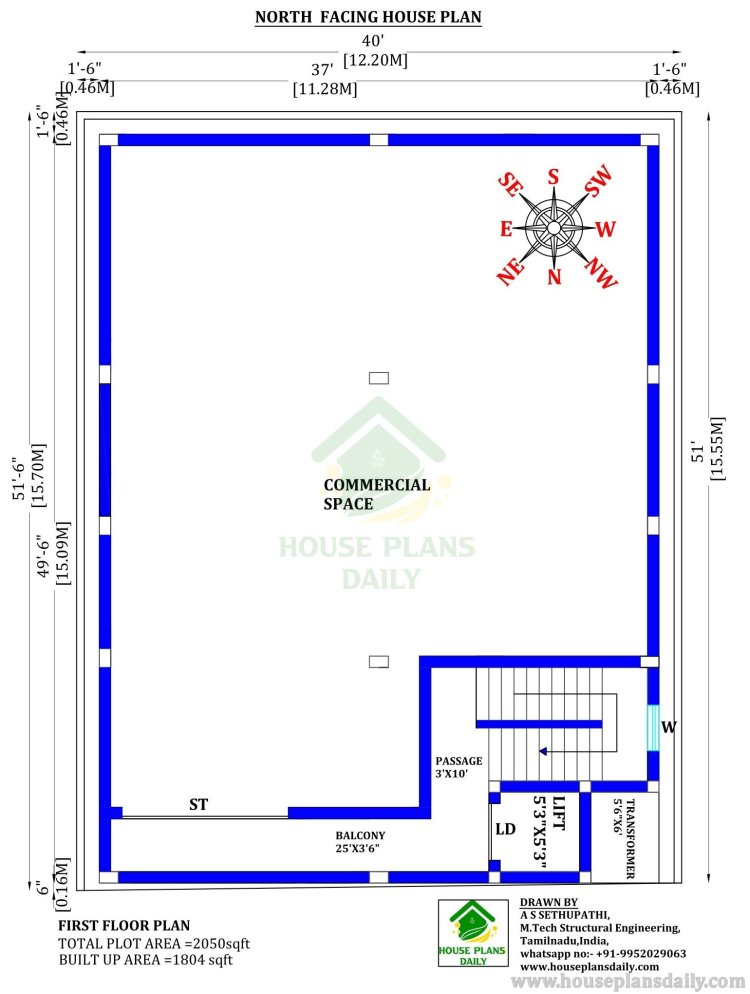

The length and breadth of the commercial plan is 40’ and 51’6” respectively. The ground floor, and first floor plans are provided for the commercial area. The total built-up area of this commercial space is 1804 sqft.
In this commercial floor plan, ramp, passages, balcony, lift, and transformer rooms are available. The dimension of the entrance passage is 12’9”x5’3”. The dimension of the lift is 5’3”x5’3”. The dimension of the staircase passage is 3’x10’. The dimension of the balcony is 25’x3’6”. The dimension of the transformer room is 5’6”x6’.
commercial plan
commercial floor plan
North Facing Plan | 2BHK North Facing House Plan
2bhk north facing house plan
In second floor layout, 2bhk north facing house plan is given Here, the hall, dining area, master bedroom with the attached toilet, kitchen with utility area, kid’s bedroom with the attached toilet, passage, and balcony is available.
In this north facing plan 1, the dimension of the hall area is 17’x9’3”. The dimension of the kitchen is 7’x11’. The dimension of the utility area is 7’x3’6”. The dimension of the master bedroom is 10’x11’. The dimension of the dining area is 10’6”x6’. The dimension of the master bedroom’s attached toilet is 6’x3’6”. The dimension of the kid’s bedroom is 9’x11’3”. The dimension of the kid’s attached toilet is 3’9”x6’. The dimension of the passage is 5’x12’9”.
In this floor plan, the hall is provided in the north direction. The kitchen is provided in the southeast corner. The master bedroom is provided in the southwest corner. The master bedroom’s attached toilet is provided in the south direction. The kid’s bedroom is provided in the east side, and its toilet is provided in the east direction. The dining area is provided in the south direction.
In this north facing plan 2, the dimension of the hall cum dining area is 10’9”x18’. The dimension of the kitchen is 7’x11’. The dimension of the utility area is 7’x3’6”. The dimension of the master bedroom is 10’x11’. The dimension of the master bedroom’s attached toilet is 6’x3’6”. The dimension of the kid’s bedroom is 9’x11’3”. The dimension of the kid’s attached toilet is 3’9”x6’. The dimension of the passage is 5’3”x6’.
Refer to These Articles
2BHK North Facing Home
2bhk north facing house plan

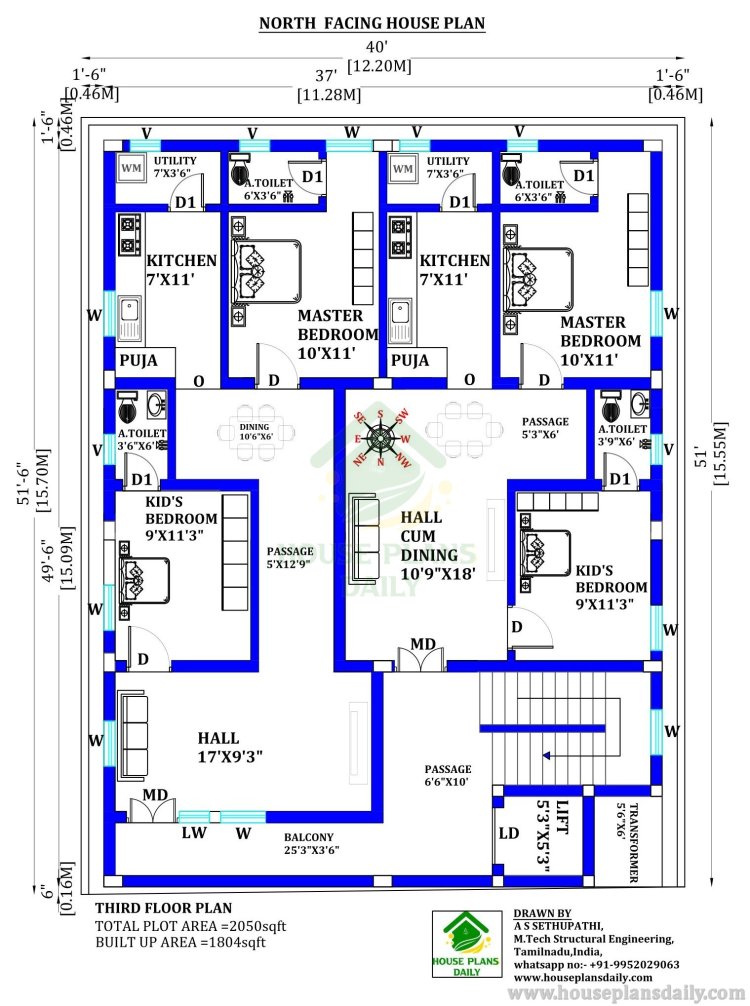

In third floor layout, 2bhk north facing home plan is given Here, the hall, dining area, master bedroom with the attached toilet, kitchen with utility area, kid’s bedroom with the attached toilet, passage, and balcony is available.
In this 2bhk north facing home 1, the dimension of the hall area is 17’x9’3”. The dimension of the kitchen is 7’x11’. The dimension of the utility area is 7’x3’6”. The dimension of the master bedroom is 10’x11’. The dimension of the dining area is 10’6”x6’. The dimension of the master bedroom’s attached toilet is 6’x3’6”. The dimension of the kid’s bedroom is 9’x11’3”. The dimension of the kid’s attached toilet is 3’9”x6’. The dimension of the passage is 5’x12’9”.
In this floor plan, the hall is provided in the north direction. The kitchen is provided in the southeast corner. The master bedroom is provided in the southwest corner. The master bedroom’s attached toilet is provided in the south direction. The kid’s bedroom is provided in the east side, and its toilet is provided in the east direction. The dining area is provided in the south direction.
In this 2bhk north facing home 2, the dimension of the hall cum dining area is 10’9”x18’. The dimension of the kitchen is 7’x11’. The dimension of the utility area is 7’x3’6”. The dimension of the master bedroom is 10’x11’. The dimension of the master bedroom’s attached toilet is 6’x3’6”. The dimension of the kid’s bedroom is 9’x11’3”. The dimension of the kid’s attached toilet is 3’9”x6’. The dimension of the passage is 5’3”x6’.
Download the Commercial Floor Plan pdf and dwg files
commercial floor plan pdf and dwg
Download the commercial floor plan pdf and dwg files from our website. Thank you for spending your valuable time to visiting our website and citing this article. For more articles, check out our website house plans daily (www.houseplansdaily.com).
