East Facing Duplex House Plan with Elevation Design is elaborated in this article. The given house design is spread over 4087 sqft with built up area of 1095 sqft.
East Facing Duplex House Plan with Elevation Design | 4100 Sqft
The below-shown image is the ground, first floor and basement parking plan of a east facing house. The built-up area of the ground, first floor, and basement parking is 1095 Sqft, 1339 Sqft, and 1132 Sqft respectively. The ground floor includes a hall or living area cum dining area, a master bedroom with attached toilet, kid's bedroom, a kitchen, and a common toilet whereas the first floor also includes a hall or living area, a master bedroom with an attached toilet, a kid's bedroom with an attached toilet, a study room, and a terrace garden.
Look into this Video for More House Plan Design Ideas - Subscribe to Our Channel
East Facing House Plan with Vastu-Ground Floor
The above-shown image is the ground floor of a duplex house design. It includes a hall cum dining area, a master bedroom with an attached toilet, kid's bedroom, a kitchen, and a common toilet. The total plot area of this ground floor is 4087 Sqft and the built-up area is 1095 Sqft respectively. This is a duplex house design where a staircase is provided inside the house to access the first floor. All the dimensions of each room are mentioned on the plan. The Furniture is also placed as per Vastu for a clear idea.
The Hall or the living area cum dining area is 19.6x17 feet in size with the sofa placement facing east. The master bedroom is 14.3x15 feet in size with bed placement facing north. The kid's bedroom is 14.6x10.6 feet in size. The kitchen is 12.3x8.3 feet in size. The common toilet is of size 6.9x4 feet in size.
The master bedroom attached toilet is 7.3x4 feet in size with the commode placement facing south as per Vastu shastra. This home design also includes a garden. All the column placements are shown for your reference. For ventilation purposes, large windows are provided in all the rooms. All the furniture is placed keeping in mind the Vastu shastra principles.
Home Design Duplex House-First Floor
The above shown image is the first floor of a front elevation design double floor . It includes a hall or living area, a master bedroom with an attached toilet, a kid's bedroom with an attached toilet, and a balcony. The total plot area of this floor is 4087 Sqft and the built-up area is 1339 Sqft respectively. The dimensions of each room are mentioned in the plan for a better idea. The Furniture items are also placed as per Vastu for reference.
The hall or living area is 9.6x13 feet in size. The master bedroom is 14.3x15 feet in size with bed placement facing north. The kid's bedroom is 14.6x10.6 feet in size as per Vastu compliance. The master bedroom attached toilet is 7.3x4 feet in size with the commode placement facing north and the kids' bedroom attached toilet is 6.9x4 feet in size.
The above east facing 2bhk house plan also includes an open terrace. The staircase is provided inside the home for accessibility to the first floor. All the column placements are shown for your reference. For ventilation purposes, large windows are provided in all the rooms. All the furniture items are placed keeping in mind the Vastu shastra principles.
East Facing House As Per Vastu-Basement Parking

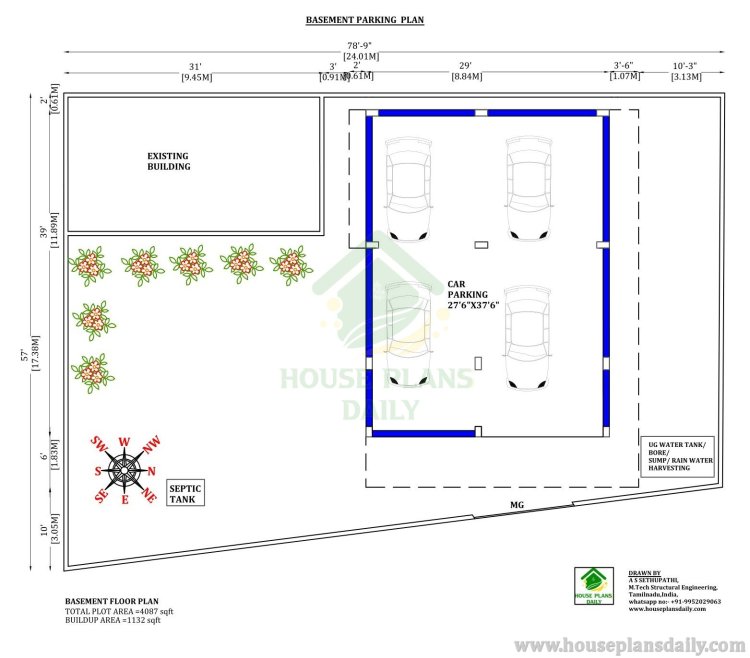

The above image is the basement parking floor of a duplex house plan east facing . It includes a car parking area and an existing building. The total plot area of this floor is 4087 Sqft and the built-up area is 1132 Sqft respectively. The dimensions are mentioned on the plan for a better idea.
Refer to these articles
- East Face House Plans with Vastu | East Face House Plan Vastu
- 4500 Sqft Plans of House Designs | East and North Facing Vastu Plan
- East Facing House Vastu Plan | Design for the House
- House Plans Vastu East Facing | 30 40 House with Design
- 30 40 House Plan East Facing | 2bhk House Plan with Vastu
Normal House Front Elevation Design

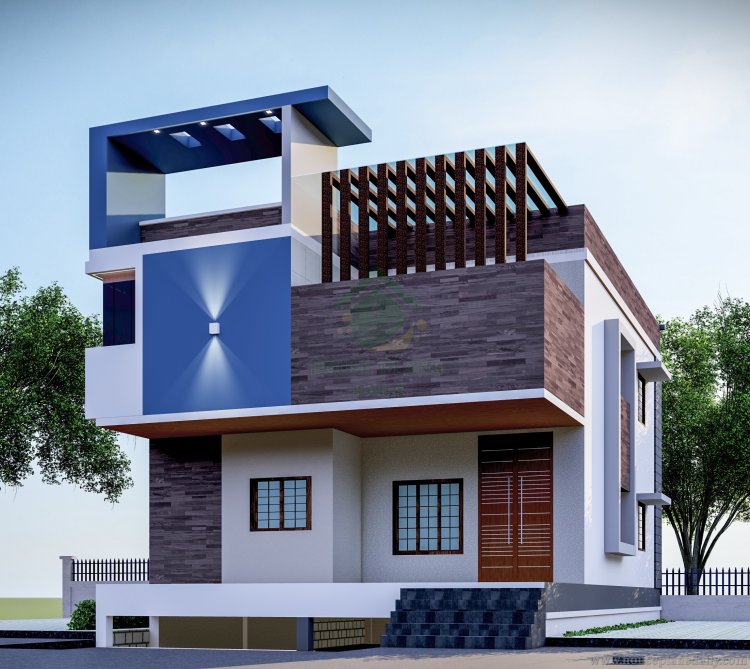

The picture above displays the side, front, and top views of a home elevation design, consisting of two floors. The ground floor features a single house, complete with a car parking area, and is surrounded by a compound wall. The main gate situated at the front provides easy access. On the first floor, there is a house with an elegant balcony featuring iron railings. The use of light and dark color paints and materials gives the elevation design a stunning look. The long windows allow ample light to enter the house.

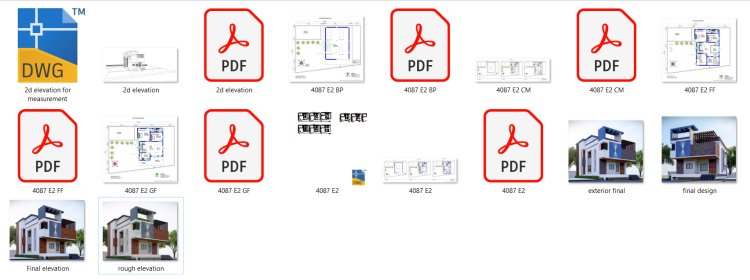

Download the house exterior design pdf and dwg files
Download and obtain high-quality pdf files, images in jpeg format, and Autocad drawing dwg format of this front elevation designs for houses for free. Thank you for spending your valuable time visiting our website and citing this article. Kindly refer to more articles for gaining more ideas regarding house plans and designs in each direction. Contact us for customized house plans, interior designs, and elevation designs.
