Front Elevation Designs for Small Houses in India Double Floor | South Facing House

This article elaborates on the front elevation designs for small houses in India with double floors, including plans for the ground and first floors, as well as the elevation design.

Front Elevation Designs for Small Houses in India Double Floor | South Facing House
Front Elevation Designs for Small Houses in India Double Floor | South Facing House
Front Elevation Designs for Small Houses in India Double Floor | South Facing House
Front Elevation Designs for Small Houses in India Double Floor | South Facing House
Front Elevation Designs for Small Houses in India Double Floor | South Facing House
Front Elevation Designs for Small Houses in India Double Floor | South Facing House

Front Elevation Designs for Small Houses in India Double Floor | South Facing House

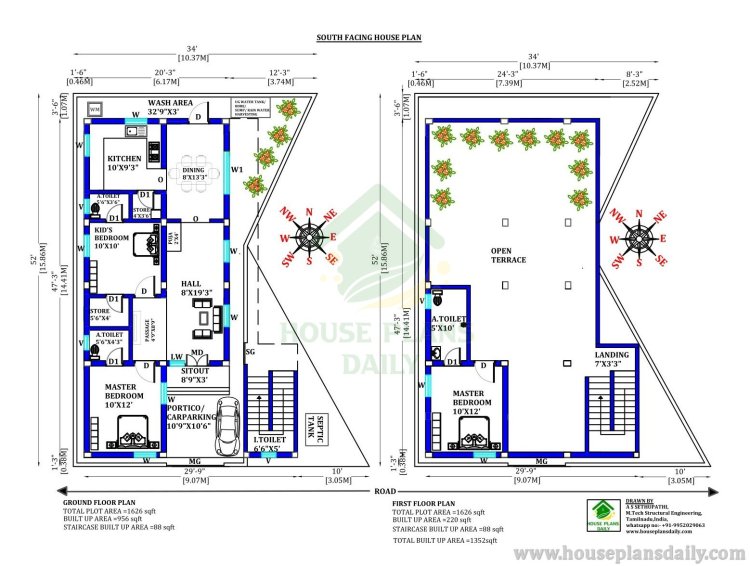

The below-shown image is the ground and first floor plan of a south facing house plan. The built-up area of the ground and first floor is 956 Sqft and 220 Sqft respectively. The ground floor includes a hall or living area, a master bedroom with an attached toilet, kids bedroom with an attached toilet, a kitchen, a dining area, and a car parking area whereas first floor includes a master bedroom with an attached toilet and an open terrace.

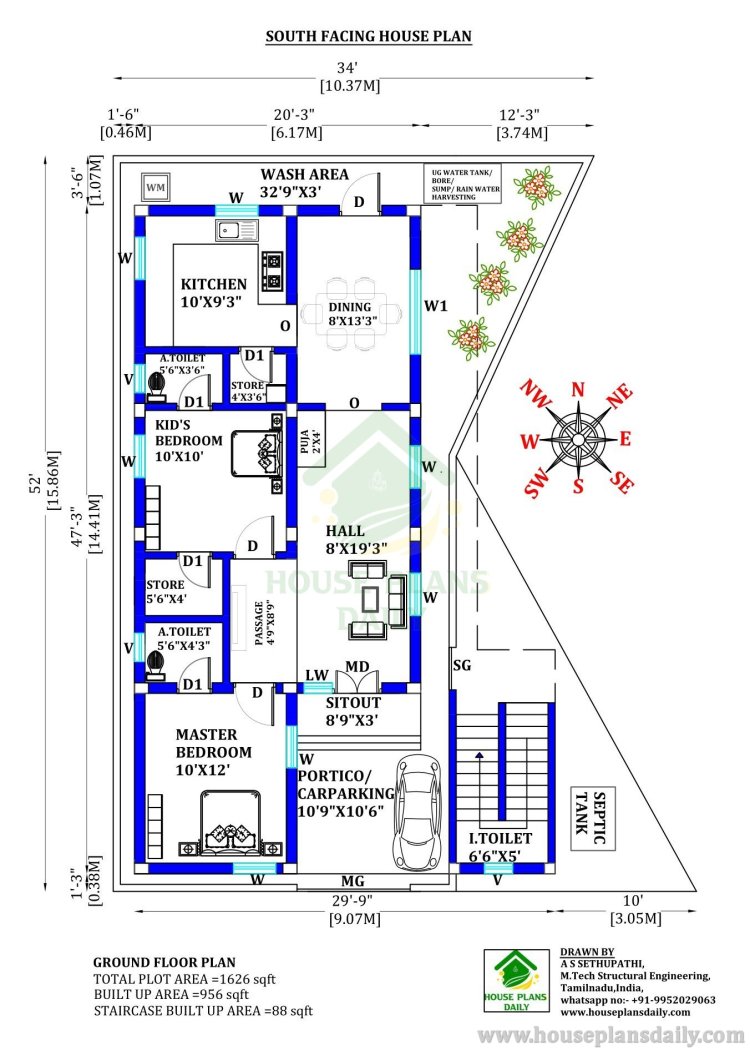

Plan for South Facing House with Car Parking-Ground Floor

The above-shown image is the ground floor of a front design of the house. It includes a hall or living room, a master bedroom with an attached toilet, a kids bedroom with an attached toilet, a kitchen, a dining area, and a car parking area. The total plot area of this ground floor is 1626 Sqft and the built-up area is 956 Sqft respectively. This is a house in front design where a staircase is provided outside the house to access the first floor. All the dimensions of each room are mentioned on the plan. The Furniture is also placed as per Vastu for a clear idea.

The Hall or the living area is 8x19.3 feet in size with the sofa placement facing east. The master bedroom is 10x12 feet in size with bed placement facing north. The attached toilet is 5.6x4.3 feet in size. The kids bedroom is 10x10 feet. The kitchen is 10x9.3 feet in size. The dining area is 8x13.3 feet in size.

This home design also includes a garden. All the column placements are shown for your reference. For ventilation purposes, large windows are provided in all the rooms. All the furniture is placed keeping in mind the Vastu shastra principles.

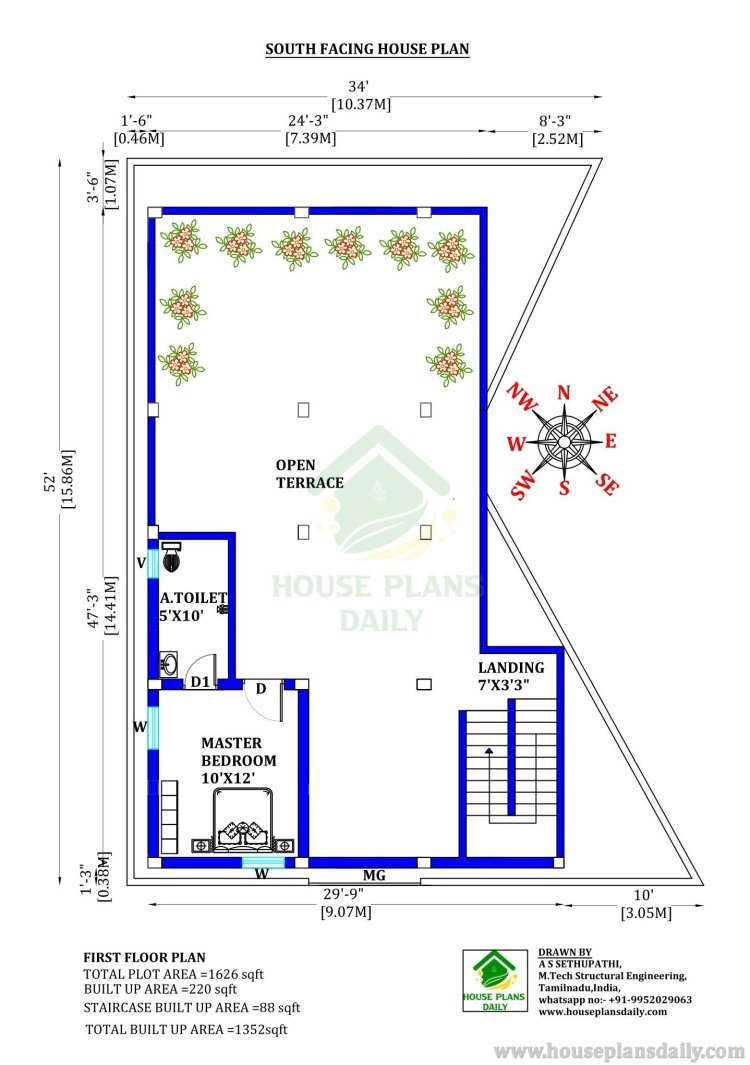

Front Design for House-First Floor

The above shown image is the first floor of a design home front . It includes a master bedroom with an attached toilet, and aa open terrace. The total plot area of this floor is 1626 Sqft and the built-up area is 220 Sqft respectively. The dimensions of each room are mentioned in the plan for a better idea. The Furniture items are also placed as per Vastu for reference.

The master bedroom is 10x12 feet in size with bed placement facing north. And the open terrace is spread over the remaining space.

The above south facing house design also includes an open terrace. The staircase is provided inside the home for accessibility to the first floor. All the column placements are shown for your reference. For ventilation purposes, large windows are provided in all the rooms. All the furniture items are placed keeping in mind the Vastu shastra principles.

Refer to these articles

Normal House Front Elevation Designs

The image above showcases a two-story home elevation design, featuring side, front, and top views. The ground floor comprises a single house with a car parking area, enclosed by a compound wall. The main gate situated at the front provides easy access. On the first floor, there is a house with a charming balcony featuring iron railings. The elevation design looks stunning due to the use of light and dark color paints and materials. The long windows provide ample light to enter the house.

Download the south facing house plans pdf and dwg files

Download and obtain high-quality pdf files, images in jpeg format, and Autocad drawing dwg format of this front design of the house for free. Thank you for spending your valuable time visiting our website and citing this article. Kindly refer to more articles for gaining more ideas regarding house plans and designs in each direction. Contact us for customized house plans, interior designs, and elevation designs.
