House Plan with Shop | Apartment Plan
House plan with shop floor layout
House plan with shop floor layout is given in this article. This is an apartment plan with the total plot area of 2023 sqft. On the ground floor, shops, and car parking is available. On the first floor, two houses are available. On the second floor, two houses are available.
House Plan with Shop Ground Floor Layout

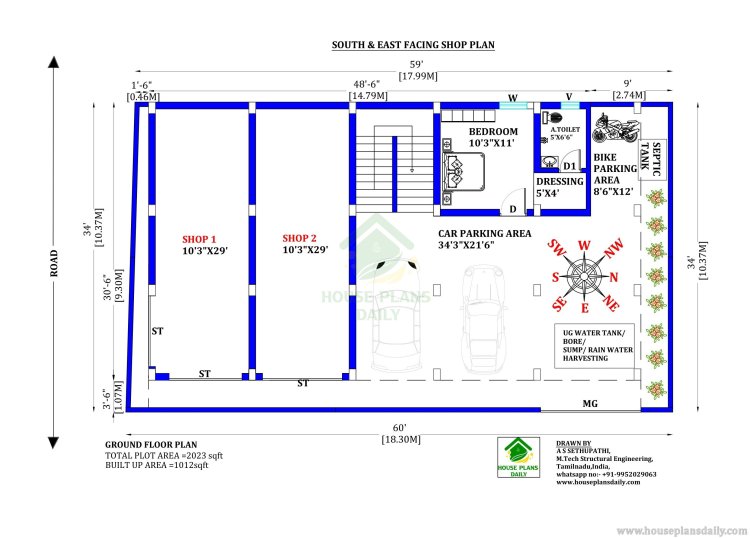

house plan shop ground floor layout
In this house plan shop ground floor layout, two shops, car parking area, bedroom with the attached toilet & dressing area, and bike parking is available. The dimension of the car parking area is 34'3"x21'6". The dimension of the bedroom is 10'3"x11'. The dimension of the attached toilet is 5'x6'6", and the dressing area is 5'x4'. The dimension of the bike parking area is 8'6"x12'.
South and North Facing House | Flat Floor Plan

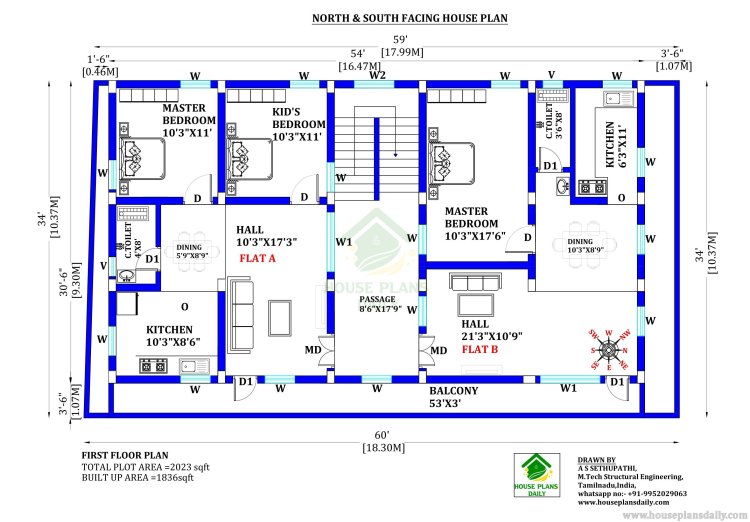

South facing house plan
South facing house plan first floor layouts are given in the above image. This is a first floor layout with the constructed area of 1701 sqft. On this first floor plot, the living room, kitchen, master bedroom with an attached toilet, kid’s bedroom, passage, puja room, common toilet, and outside passage is available.
In this apartment house plan, the dimension of the living room is 10’3”x18’3”. The dimension of the kitchen is 10’3”x8’6”. The dimension of the master bedroom is 10’3”x11’. The dimension of the master bedroom’s attached toilet is 6’x4’6”. The dimension of the kid’s bedroom is 10’3”x11’. The dimension of the common toilet is 6’x4’. The dimension of the passage is 3’9”x9’9”. The dimension of the outside passage is 8’6”x18’9”.
In this south facing house plan, the living room is provided in the north direction. The kitchen is provided in the southeast corner. The master bedroom is provided in the southwest direction. The master bedroom’s attached toilet direction is south. The kid’s bedroom is provided in the northwest. The common toilet direction is south.
North Facing House Plan
North facing house plan layout
North facing house plan layout is given in the above image. The living room cum dining area, kitchen, master bedroom with the attached toilet, outside passage, and entrance area is available.
In this face house plan, the dimension of the living room cum dining area is 10’3”x18’3”. The dimension of the kitchen is 10’3”x11’. The dimension of the entrance area is 11’x6’. The dimension of the master bedroom is 10’3”x17’6”, and the attached toilet is 10’3”x5’. The dimension of the children’s bedroom is 16’x11’, and the attached toilet is 4’x11’. The dimension of the outside passage is 8’6”x18’9”.
In this 1700 sqft house plan, the living room cum dining area is provided in the northeast direction. The kitchen is provided in the northwest corner. The master bedroom is provided in the southwest direction. The master bedroom’s attached toilet direction is south. The entrance area is provided in the southeast.
Refer to These Articles
2bhk Flat Floor Plan | South Face House Plan

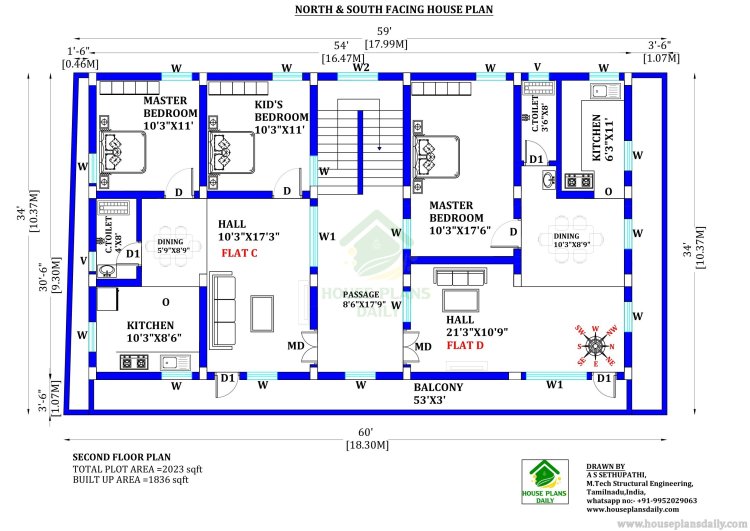

Apartment house plan second floor layouts
Apartment house plan second floor layouts are given in the above image. This is a second floor layout with the constructed area of 1701 sqft. On this second floor flat, the living room, kitchen, master bedroom with an attached toilet, kid’s bedroom, passage, puja room, common toilet, and outside passage is available.
In this south facing floor plan, the dimension of the living room is 10’3”x18’3”. The dimension of the kitchen is 10’3”x8’6”. The dimension of the master bedroom is 10’3”x11’. The dimension of the master bedroom’s attached toilet is 6’x4’6”. The dimension of the kid’s bedroom is 10’3”x11’. The dimension of the common toilet is 6’x4’. The dimension of the passage is 3’9”x9’9”. The dimension of the outside passage is 8’6”x18’9”.
In this 2bhk house plan, the living room is provided in the north direction. The kitchen is provided in the southeast corner. The master bedroom is provided in the southwest direction. The master bedroom’s attached toilet direction is south. The kid’s bedroom is provided in the northwest. The common toilet direction is south.
Apartment Plan | North Face House Plan
Apartment house plan second floor north facing layout
Apartment house plan second floor north facing layout is given in the above image. The living room cum dining area, kitchen, master bedroom with the attached toilet, outside passage, and entrance area is available.
In this north face house plan, the dimension of the living room cum dining area is 10’3”x18’3”. The dimension of the kitchen is 10’3”x11’. The dimension of the entrance area is 11’x6’. The dimension of the master bedroom is 10’3”x17’6”, and the attached toilet is 10’3”x5’. The dimension of the children’s bedroom is 16’x11’, and the attached toilet is 4’x11’. The dimension of the outside passage is 8’6”x18’9”.
In this 1bhk home, the living room cum dining area is provided in the northeast direction. The kitchen is provided in the northwest corner. The master bedroom is provided in the southwest direction. The master bedroom’s attached toilet direction is south. The entrance area is provided in the southeast.
Structural Designs
Download the House Plan with Shop PDF and DWG Files

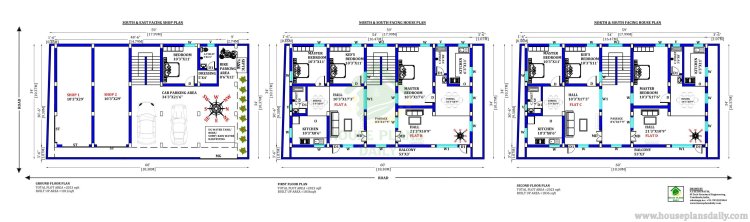

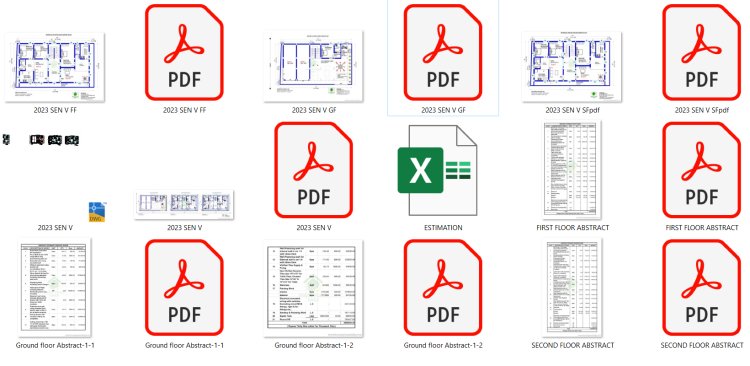

house plan with shop pdf and drawing dwg files
Download the house plan with shop pdf and drawing dwg files from our website. Thank you for spending your valuable time to visiting our website and citing this article. For more articles, check out our website house plans daily (www.houseplansdaily.com). From our website you will get house plans like east facing house plans, north face house plans, south face house plan, west face house plans, vastu plans, electrical drawing, plumbing drawings, elevation ideas, interior ideas, etc.,
