Modern House Plan and Elevation

The below-shown image is the ground and first-floor plan of a Modern House Plan. The built-up area of the ground and the first floor is 1019 Sqft and 1019 Sqft respectively. The ground floor includes a hall or living area with dining, a master bedroom with an attached toilet, a kids' bedroom, a kitchen, a common bathroom and toilet, and a sitout whereas the first floor includes a hall with dining, a master bedroom with an attached toilet, a kid's bedroom, a common bathroom and toilet, a kitchen and a balcony.

north face house plan

house floor plans modern

Look into this Video for More House Elevation Design Ideas - Subscribe to Our Channel

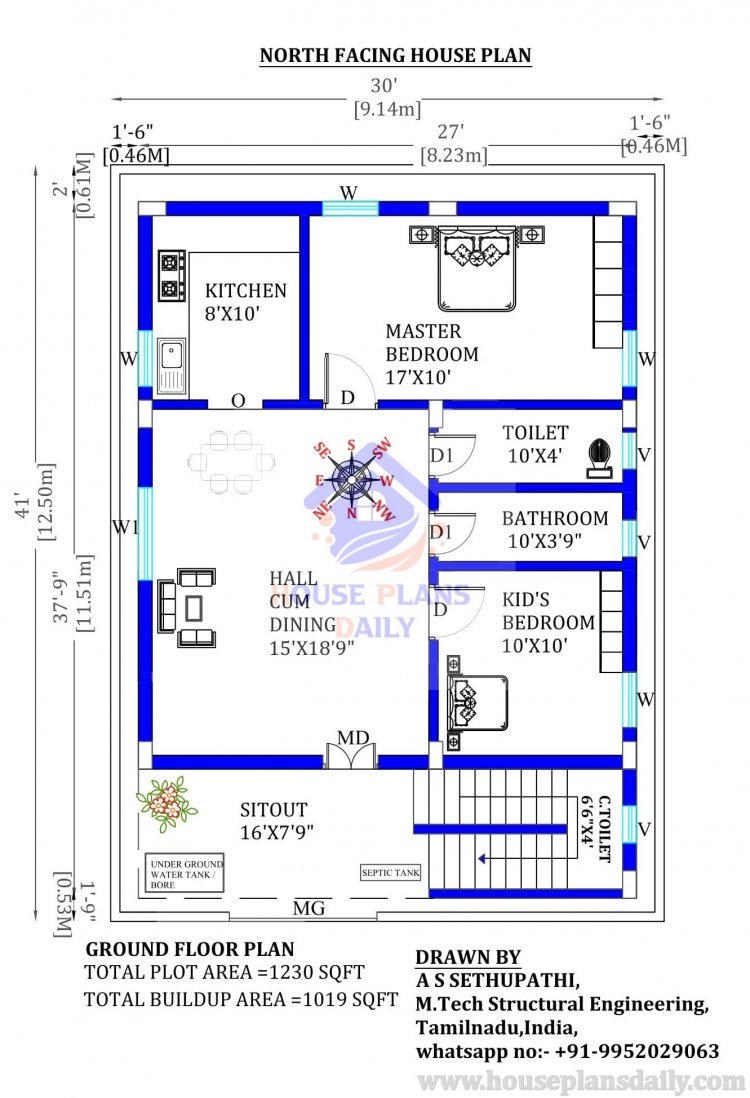

North Facing House Vastu Plan with Staircase-Ground Floor

ghar ka naksha

home designs plans

The above-shown image is the ground floor of a North Facing House Vastu Plan with Staircase. It includes a hall with dining area, a master bedroom with an attached toilet, a kid's bedroom, a common toilet,  a kitchen, and a sitout. The total plot area of this ground floor is 1230 Sqft and the built-up area is 1019 Sqft respectively. This is a two-storey house design where a staircase is provided outside the house to access the first floor. All the dimensions of each room are mentioned on the plan. The Furniture is also placed as per Vastu for a clear idea.

The Hall or the living area cum dining area is 15x18.9 feet in size with the sofa placement facing west. The master bedroom is 17x10 feet in size with bed placement facing north. The kid's bedroom is 10x10 feet in size. The kitchen is 8x10 feet in size. The common toilet is 10x4 feet in size and the bathroom is 10x3.9 feet in size.

2 bhk Double Floor House Plan-First Floor

2bhk house design

simple house plans

The above image is the first floor of a 2 bhk Double Floor House Plan. It includes a a hall with dining area, a master bedroom with an attached toilet, a kid's bedroom, a common toilet,  a kitchen, and a sitout. The total plot area of this first floor is 1230 Sqft and the built-up area is 1019 Sqft respectively. This is a two-storey house design where a staircase is provided outside the house to access the first floor. All the dimensions of each room are mentioned on the plan. The Furniture is also placed as per Vastu for a clear idea.

The Hall or the living area cum dining area is 15x18.9 feet in size with the sofa placement facing west. The master bedroom is 17x10 feet in size with bed placement facing north. The kid's bedroom is 10x10 feet in size. The kitchen is 8x10 feet in size. The common toilet is 10x4 feet in size and the bathroom is 10x3.9 feet in size.

The above home design also includes a balcony. The staircase is provided outside the home for accessibility to the first floor. All the column placements are shown for your reference. For ventilation purposes, large windows are provided in all the rooms. All the furniture items are placed keeping in mind the Vastu shastra principles.

Refer to these articles

2 bhk Double Floor Elevation Design

house elevation design

houses plans and designs

The above-shown image is a side elevation view of a 2bhk double floor elevation design. This image elaborates on the elevation design which consists of two floors. The ground floor consists of a single house with a staircase provided outside the house to access the first floor. The compound wall is also provided on all sides of the house with the main gate at the front for users to move out. The first floor consists of a house with a balcony made of iron material railings to give an elegant elevation design. Light and dark color paints and materials are used to highlight the elevation design. Long windows are provided in order to get enough light inside the house.

Download the Low Cost Home Design pdf and dwg files for free

house plans pdf

custom home designs

Download and obtain high-quality pdf files, images in jpeg format, and Autocad drawing dwg format of this ghar ka naksha for free. Thank you for spending your valuable time visiting our website and citing this article. Kindly refer to more articles for gaining more ideas regarding house plans and designs in each direction. Contact us for customized house plans, interior designs, and elevation designs.
