The below image is a North facing house vastu plan with both ground and first floor ghar ka naksha. The built-up areas of the ground and first floors are 828 Sqft and 313 Sqft respectively. The ground floor consists of a portico with a car parking space and a common toilet outside the house provided below the staircase. The dimensions of each room are mentioned on the plan with furniture positions.
Ghar Ka Naksha
List out the benefits of a north facing house?
- North direction is auspicious for constructing homes
- It attracts money and prosperity since this direction is said to be the direction of kuber
Look into this Video for More House Design Ideas - Subscribe to Our Channel
North Facing House Vastu Plan-Ground Floor
North Facing House Vastu Plan

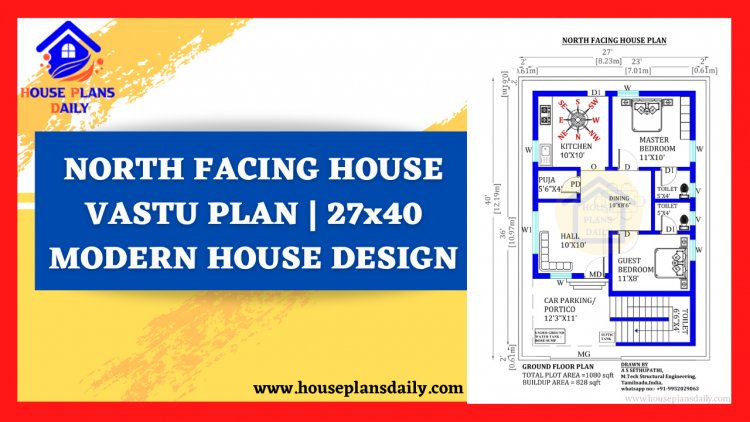

27x40 Modern House Design Ground floor Plan is shown in the above image. The ground floor consists of a hall or living room, a master bedroom with an attached toilet, a guest bedroom with an attached toilet, a pooja room, a kitchen, a dining area, a common toilet, and a car parking area. The furniture postions of each room are clearly shown on the plan with clear dimensions of all the rooms. The Planning of the house is done as per Vastu shastra and the furnitures are also placed as per Vastu shastra principles.
Refer to these Articles,
The hall or living area is 10x10 feet in size with the dining area of size 10.6x8.6 feet attached and placed in the north direction. The master bedroom is 11x10 feet in size and placed in the southwest direction with an attached toilet. The attached toilet is 5x4 feet in size and placed in the southwest direction. The Guest bedroom is 11x8 feet and placed in the northwest direction with an attached toilet of size 5x4 feet. The kitchen is 10x10 feet in size and placed in the southeast direction as per Vastu shastra. The dining area is 10x8.6 feet in size.
The puja room is placed in the direction of east of size 5.6x4 feet. The common toilet is 6.6x4 feet in size and is placed below the staircase in the northwest direction outside the house. A car parking area is planned for the home of 12.3x11 feet in size. As per Vastu shastra, the underground water tanks and sumps are placed in the north direction. The column positions are also clearly mentioned on the above house plan as per Vastu shastra principles.
27x40 Modern House Design

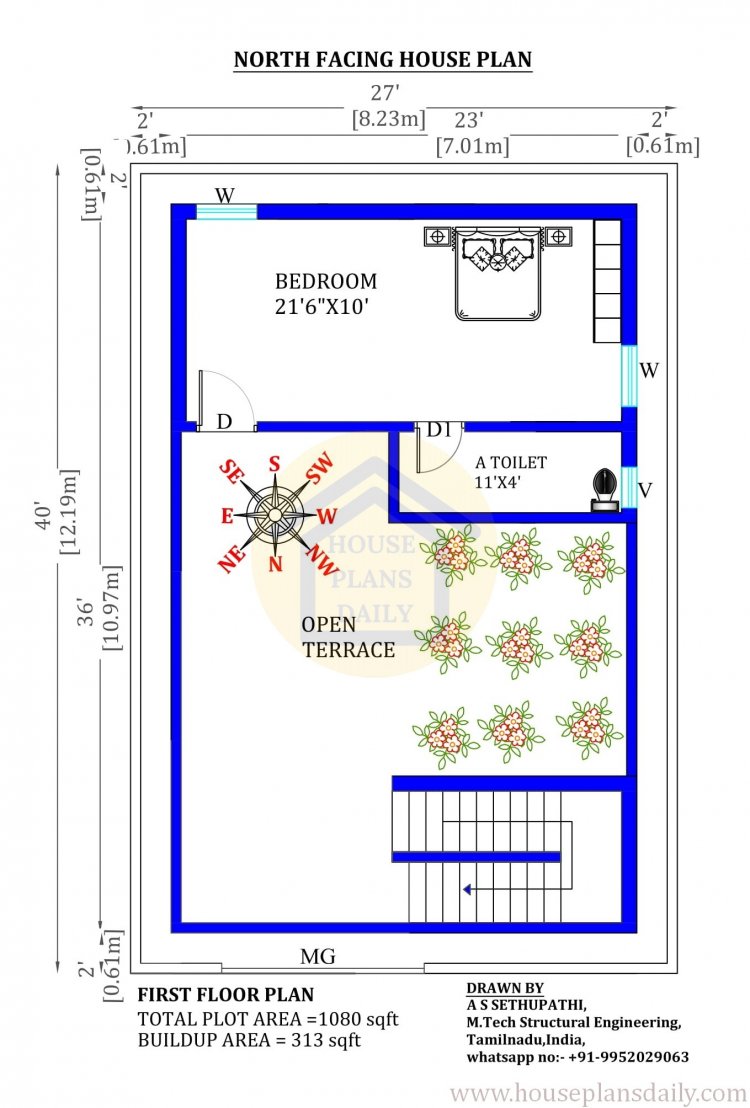

The above given image is the first floor of a north facing house vastu plan 2bhk. The total built-up area of the north facing house vastu plan with pooja room first floor is 313 Sqft respectively. The first floor consists of a bedroom with an attached toilet, and an open terrace. The dimensions of each room are clearly mentioned with furniture positions as per Vastu shastra.
The bedroom is 21.6x10 feet in size and placed in the southwest direction with an attached toilet. The attached toilet is 11x4 feet in size and placed in the southwest direction. This two storey modern house design is drafted using Autocad software and converted into dwg and pdf formats for easy access.
The common toilet is 6.6x4 feet in size and is placed below the staircase in the northwest direction. A car parking area is planned for the home of 12.6x11 feet in size. As per Vastu shastra, the underground water tanks and sumps are placed in the north direction. The column positions are also clearly mentioned on the above house plan as per Vastu shastra principles. This home design is well planned by keeping large windows for ventilation purposes.

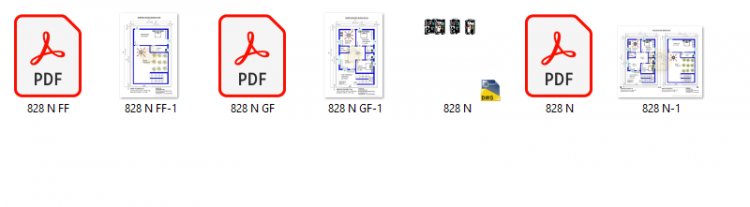

Download the vastu house plans pdf and dwg files for free
Vastu house plans
Download and obtain high-quality pdf files, images in jpeg format and AutoCAD drawing Dwg format of a 27x40 Modern House Design for free. Thank you so much for reading this article. For obtaining more ideas on north facing home designs refer to more articles posted on our website House Plans daily (www.houseplansdaily.com)
