4 BHK House Plan

4bhk house plan as per vastu shastra

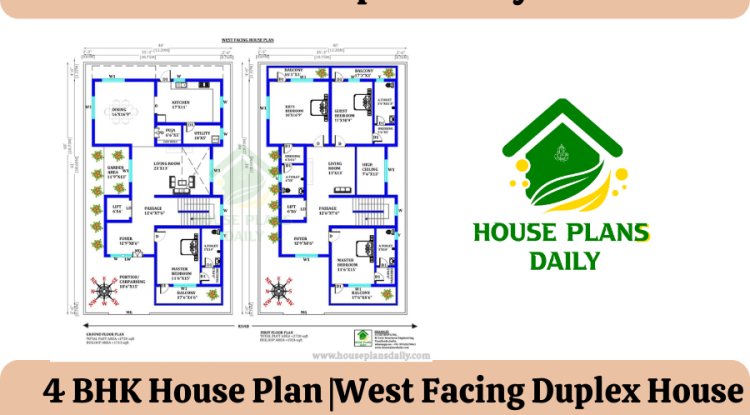

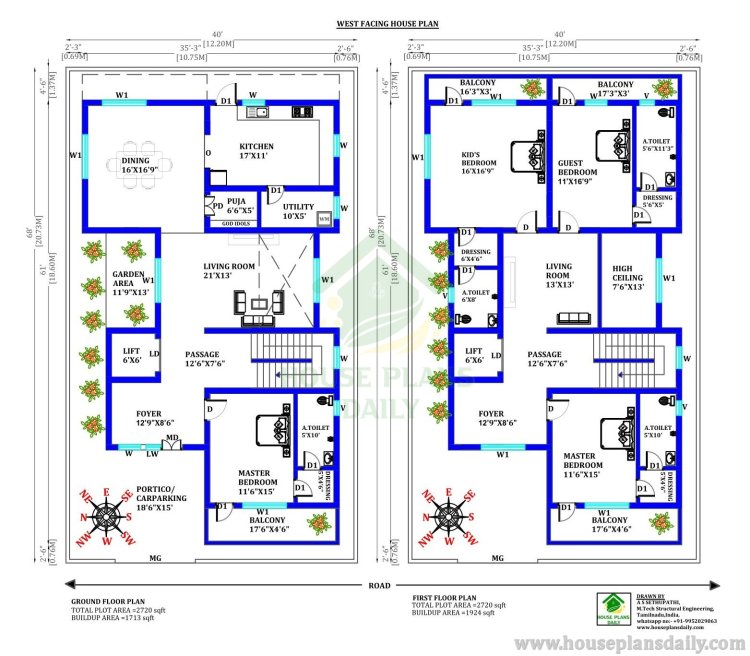

4 BHK house plan as per vastu shastra are given in this article. This is a duplex house plan.  On the ground floor, one bedroom is available. On the first floor, three bedrooms are available. The total built up area of the ground floor, and first floors are 1713 sqft, and 1924 sqft respectively.  For more details, check out our website www.houseplansdaily.com.

West Facing Duplex House Plans

West facing duplex house plans

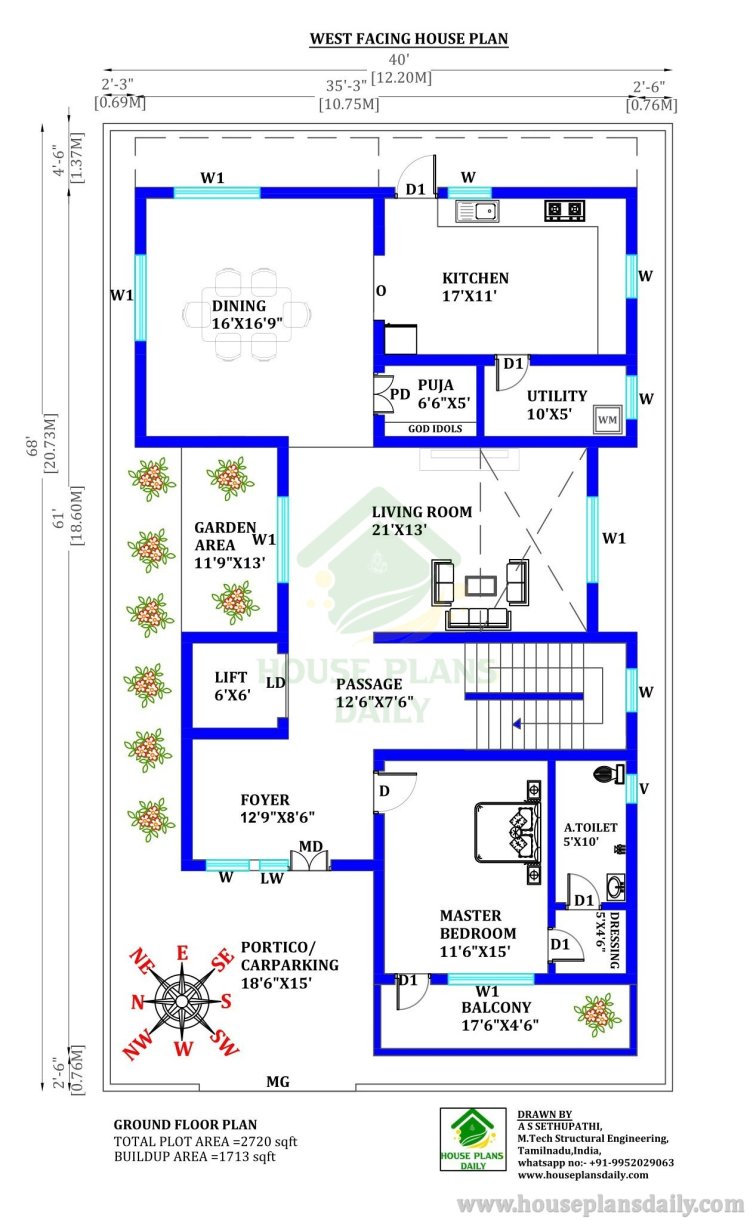

West facing duplex house plans ground floor layout is given in this image. On the ground floor, the living room, kitchen, dining area, utility area, puja room, garden, lift, foyer, passage, master bedroom with the attached toilet & dressing area, portico, and balcony is available. The total plot area is 2720 sqft. The constructed area of the ground floor and first floors are 1713 sqft.

In this 2800 sqft house plan, the dimension of the living room is 21’x13’. The dimension of the kitchen is 17’x11’. The dimension of the dining area is 16’x16’9”. The dimension of the foyer is 12’9”x8’6”. The dimension of the garden area is 11’9”x13’.  The dimension of the master bedroom is 11’6”x15’. It’s attached toilet is 5’x10’, and dressing area is 5’x4’6”. The dimension of the utility area is 10’x5’. The dimension of the car parking or portico is 18’6”x15’. The dimension of the puja room is 6’6”x5’. The dimension of the lift is 6’x6’.  The dimension of the balcony is 17’6”x4’6”.

On this west face duplex house, the living room area is provided in the west direction. The kitchen area is provided in the southeast corner. The dining area is provided in the northeast corner. The master bedroom is provided in the southwest corner. The passage is provided in the direction of the south. The foyer is provided in the west direction. The balcony is provided in the west direction.

2800 SQFT House Plan

2800 sqft house plan

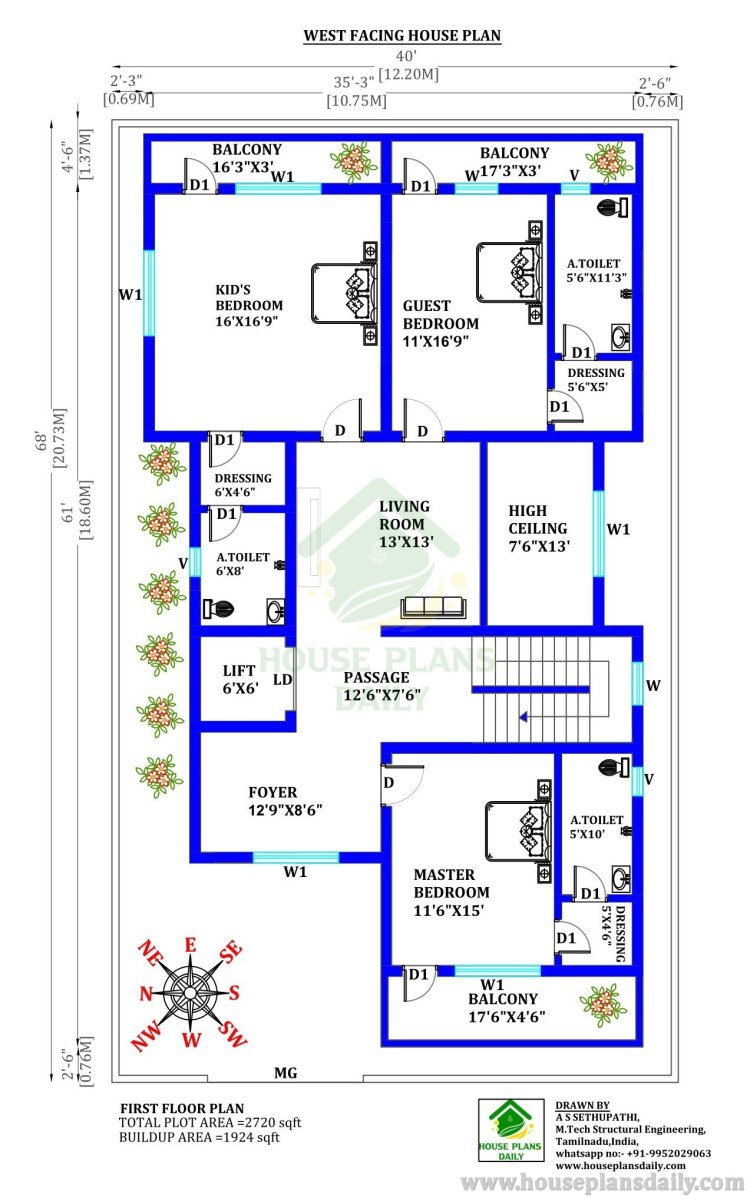

2800 sqft house plan first floor layout is given in this image. On the first floor, the living room, kid’s bedroom with the attached toilet & dressing area, guest room with the attached toilet & dressing area, lift, foyer, passage, high ceiling, master bedroom with the attached toilet & dressing area, balconies are available.

In these west home plans, the dimension of the living room is 13’x13’. The dimension of the kid’s bedroom is 16’x16’9”. The dimension of the guest room is 11’x16’9”. The dimension of the foyer is 12’9”x8’6”.  The dimension of the master bedroom is 11’6”x15’. Its attached toilet is 5’x10’, and dressing area is 5’x4’6”. The dimension of the front balcony is 17’6”x4’6”. The dimension of the high ceiling is 7’6”x13’. The dimension of the lift is 6’x6’.  The dimension of the balcony is 17’6”x4’6”.

On this 2800 sqft house plan, the living room area is provided in the west direction. The guest bedroom is provided in the southeast corner. The kid’s bedroom is provided in the northeast corner. The master bedroom is provided in the southwest corner. The passage is provided in the direction of the south. The foyer is provided in the west direction. The balcony is provided in the west direction.  The high ceiling is provided in the south direction.

Refer to These Articles

·         1800 Sqft East Facing House Plan | 2 Bedroom House Plan East Facing

·         Single Floor Design House | 30x50 East Facing 2bhk House

·         Design of Ground Floor House | North Facing House Plan

·         30x60 North Facing House Plans 2bhk | 2 Bedroom Home

·         East Facing Duplex House Plan with Elevation Design | 4100 Sqft

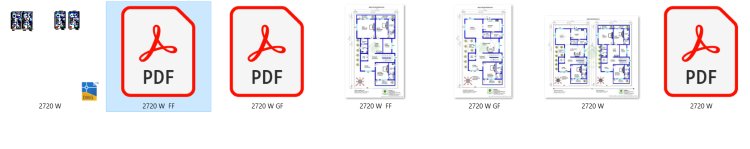

Download the 4 BHK House Plan pdf and dwg files

4 bhk house plan

Download the 4 bhk house plan pdf and dwg files from our website. Thank you for spending your valuable time to visiting our website and citing this article. For more articles, check out our website house plans daily (www.houseplansdaily.com).
