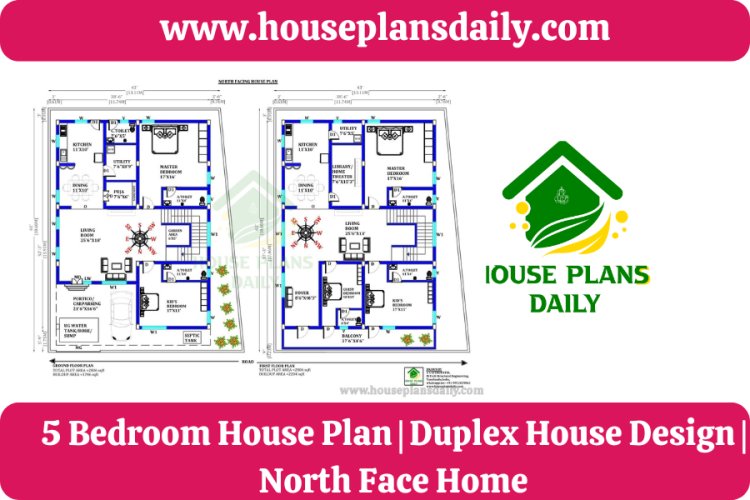

5 Bedroom House Plan

5 bedroom house plan is given in this article.  This is a duplex house plan with two houses.  In this duplex house design, the total plot area is 2806 sqft. The total constructed area of the ground floor is 1786  sqft, and first floor is 2204 sqft.  For more houses plan ideas, check out our website www.houseplansdaily.com.

Duplex House Design | North Face Home

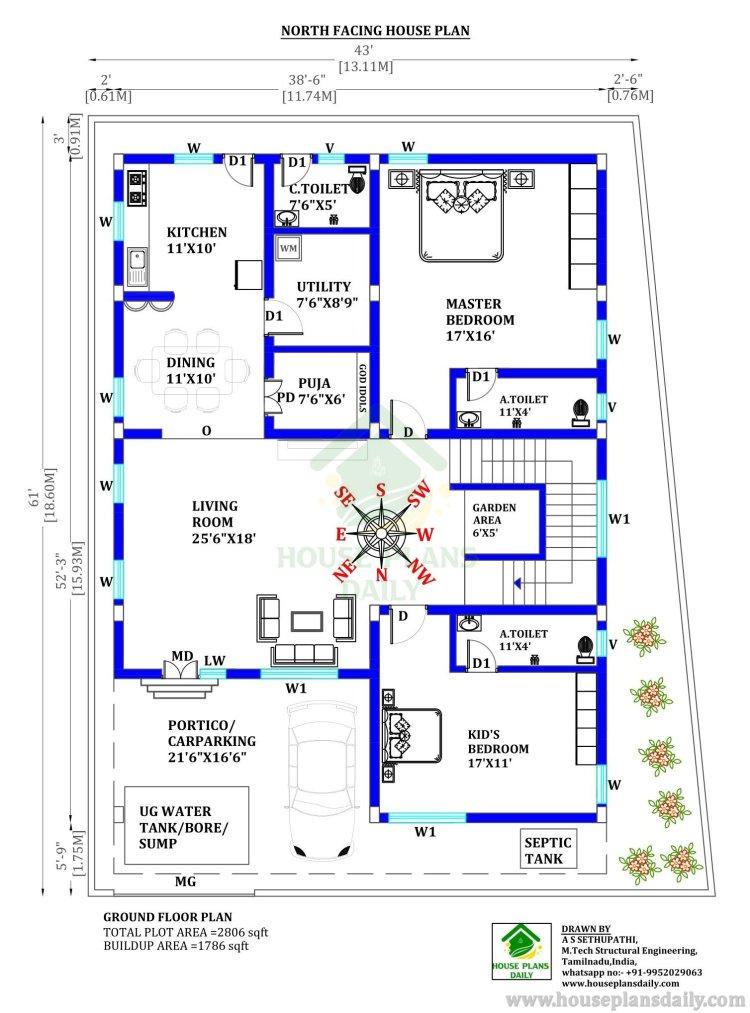

North face home ground floor layout

North face home ground floor layout is given in the above image. This is a ground floor layout with a constructed area of 1817sqft. On this ground floor, the living room, dining area, utility area, master bedroom with the attached toilet, kid’s bedroom with the attached toilet, puja room, common toilet, garden, and portico is available.

In this 5 bedroom house, the dimension of the living room is 256”x18’.  The dimension of the kitchen is 11’x10’. The dimension of the dining area is 11’x10’.  The dimension of the master bedroom is 17’x16’, and its attached toilet is 11’x4’.  The dimension of the kid’s bedroom is 17’x11’, and its attached toilet is 11’x4’.  The dimension of the puja room is 7’6”x6’. The dimension of the utility area is 7’6”x5’.  The dimension of the common toilet is 7’6”x5’.  The dimension of the garden area is 6’x5’.  The dimension of the portico is 21’6”x16’6”.

In this north facing vastu plan, the living room is provided in the north direction. The kitchen is provided in the southeast direction. The dining area is provided in the east direction. The utility and store room is provided in the south direction. The master bedroom is provided in the southwest direction, and its attached toilet is provided in the west direction. The kid’s bedroom is provided in the northwest direction. The kid’s bedroom’s attached toilet direction is west. The puja room is provided in the south direction. The portico is provided in the northeast direction. The garden area is provided in the west direction. The common toilet is provided in the south direction.

Refer to These Articles for More Ideas

·         Indian Style Middle Class Village Single Floor Home Front Design

·         Vastu Plan East Facing House | Two Story House Plan | 2000 Sqft House Plan

·         House Plan for North Facing House | 42x47 House Plan with Car Parking

·         House Plan Drawing 1500 Sq ft | East Facing House Plan with Vastu



North Face Home

North face home

North face home first floor layout is given in the above image. This is a first floor layout with a constructed area of 2204 sqft. On this first floor, the living room, dining area, utility area, library/home theatre, master bedroom with the attached toilet, kid’s bedroom with the attached toilet, garden, guest room with the attached toilet, foyer, and balcony is available.

In this 5 bedroom house floor plan, the dimension of the living room is 25’6”x13’.  The dimension of the kitchen is 11’x10’. The dimension of the dining area is 11’x10’.  The dimension of the master bedroom is 17’x16’, and its attached toilet is 11’x4’.  The dimension of the kid’s bedroom is 17’x11’, and its attached toilet is 11’x4’.  The dimension of the library/home theatre is 7’6”x13’5”. The dimension of the utility area is 7’6”x5’.  The dimension of the garden area is 6’x5’.  The dimension of the balcony is 37’6”x4’6”.  The dimension of the guest room is 11’x10’, and its attached toilet is 6’x4’.

In this duplex house layout plan, the living room is provided in the north direction. The kitchen is provided in the southeast direction. The dining area is provided in the east direction. The utility area is provided in the south direction. The master bedroom is provided in the southwest direction, and its attached toilet is provided in the west direction. The kid’s bedroom is provided in the northwest direction. The kid’s bedroom’s attached toilet direction is west. The library/home theatre is provided in the south direction. The balcony is provided in the north direction. The foyer is provided in the east direction. The guest room is provided in the west direction.

Look into this Video for More  - Subscribe to Our Channel

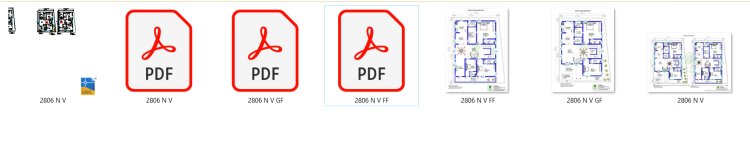

Download the 5 Bedroom House Plan  PDF and DWG Files

5 bedroom house plan

Download the 5 bedroom house plan pdf and drawing dwg files from our website. Thank you for spending your valuable time to visiting our website and citing this article. For more articles, check out our website house plans daily (www.houseplansdaily.com). From our website you will get house plans like east facing house plans, north face house plans, south face house plan, west face house plans, vastu plans, electrical drawing, plumbing drawings, elevation ideas, interior ideas, etc.,
