East facing house – 4bhk house plan is given in this article. This is a two story duplex home with the car parking. The length and breadth of the floor plans are 40’ and 60’ respectively.
East Facing House | 4BHK House

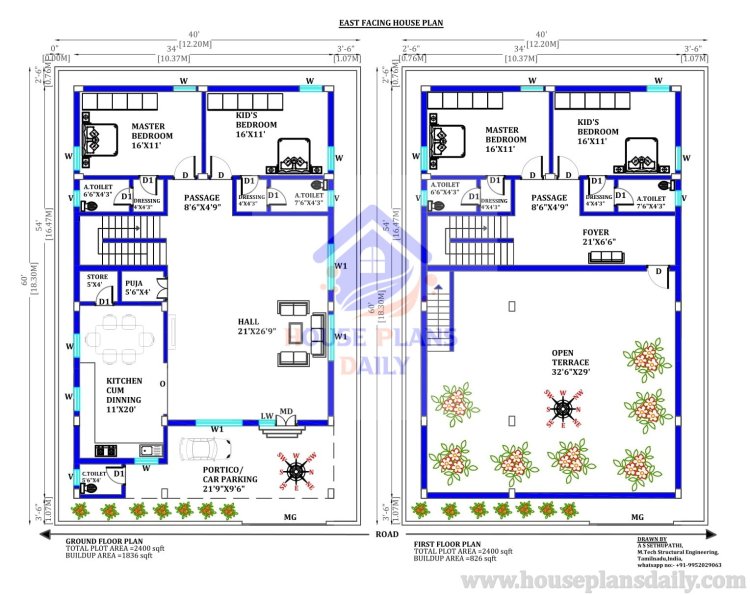

East facing house – 4bhk house plan is given in this article. This is a two story duplex home with car parking. The length and breadth of the floor plans are 40’ and 60’ respectively. The total plot area of this each facing house plan is 2400 sqft. The built-up area is 1836 sqft. On the first floor, a big open terrace is provided. The constructed area of the first floor is 826 sqft.
This kind of house plan is useful to people who are searching for floor plans like East facing house, 4bhk house, duplex home, duplex house, 4 bedroom house, east facing house plan, contemporary house, luxury house, American homes, 2400 sqft house, small house design plans, 2400 sq ft, two storey house design, two storey house, and double story house design.
4BHK House
4BHK House | Duplex Home
4 bedroom house

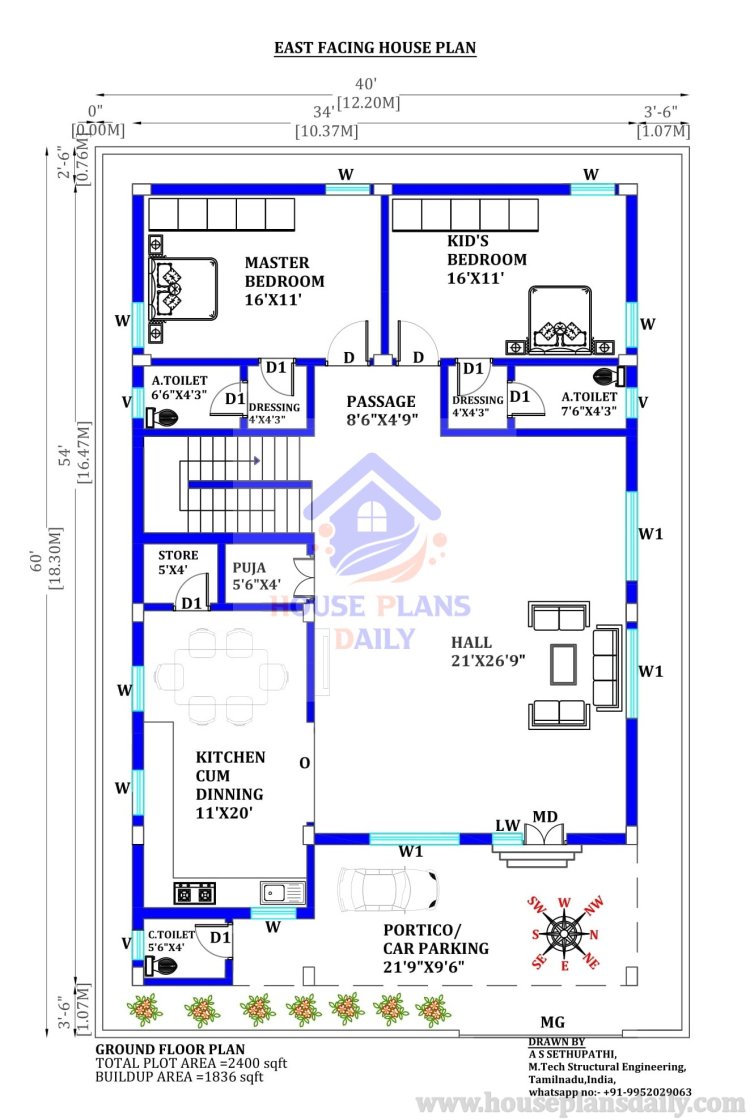

4BHK House ground floor layout is given in the above image. The car parking or portico, common toilet, kitchen cum dining room, hall, storeroom, puja room, master bedroom with an attached toilet & dressing area, kid’s bedroom with an attached toilet & dressing area, and passage is available on this ground floor layout.
In this duplex home, the kitchen cum dining size is 11’x20’, the living room or the hall is 21’x26’9”, the master bedroom is 16’x11’, the attached toilet is 6’6”x4’3”, the dressing area is 4’x4’3”, the passage is 8’6”x4’9”, the kid’s bedroom is 16’x11’, the attached toilet is 7’6”x4’3”, the dressing area is 4’x4’3”, the storeroom is 5’x4’, the puja room is 5’6”x4’, the common toilet is 5’6”x4’, and the portico is 21’9”x9’6”.
The master bedroom is placed in the southwest corner, the master bedroom’s bathroom is placed in the south direction, the kid’s bedroom is placed in the northwest corner, the kid’s bedroom’s bathroom is placed in the north direction, the storeroom & puja room is placed in the east direction, the kitchen cum dining room is placed in the southeast corner, the portico is placed in the east direction, the living room is placed in the east direction, and common toilet is placed in the southeast corner.
Duplex Home | First Floor Plans
East facing house
Duplex Home – First floor plans are given in the above image. On this first floor plan, the passage, master bedroom with an attached toilet & dressing area, kid’s bedroom with an attached toilet & dressing area, and foyer. The open terrace is provided in front of the first rooms. The total built-up area of the first floor is 826 sqft.
In this floor plan, the master bedroom is 16’x11’, the attached toilet is 6’6”x4’3”, the dressing area is 4’x4’3”, the passage is 8’6”x4’9”, the kid’s bedroom is 16’x11’, the attached toilet is 7’6”x4’3”, the dressing area is 4’x4’3”, the foyer is 21’x6’6”, and the open terrace size is 32’6”x29’.
The master bedroom is placed in the southwest corner direction. The master bedroom’s bathroom is placed in the south direction. The kid’s bedroom is placed in the northwest corner direction. The kid’s bedroom’s bathroom is placed in the north direction. The passage is placed in the east direction. The open terrace is placed in the east direction.
Refer to These Articles
- Structural Drawings| Elevation Drawings |House Plans
-
Floor Plans | Best 50 House Plan Ideas | House Designs
-
Simple Elevation |House Plan with Elevation | South Face Home
-
2BHK Homes | Two Story Houses | 2BHK North Facing
-
NORTH FACING HOUSE PLANS
-
2BHK Duplex House | North Facing Floor Plan | 1000 sqft House
Look into this Video for More House Plan Ideas - Subscribe to Our Channel
10 Best House Layouts | Simple Home Designs
Download the home plan pdf and dwg files

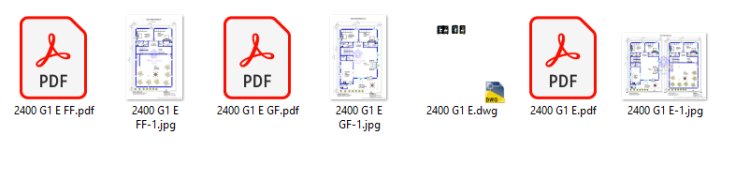

Download the East facing house pdf files, JEPG images, and AutoCAD drawing files from this article by clicking the download button. For more house plans, vastu plans, structural drawings, plumbing drawings, electrical drawings, interiors, and elevations, check out our website www.houseplansdaily.com.
