House Plans North Facing | 1bhk Home Design | G+5 Ghar Ka Naksha

House Plans North Facing | 1bhk Home Design | G+4 Ghar Ka Naksha

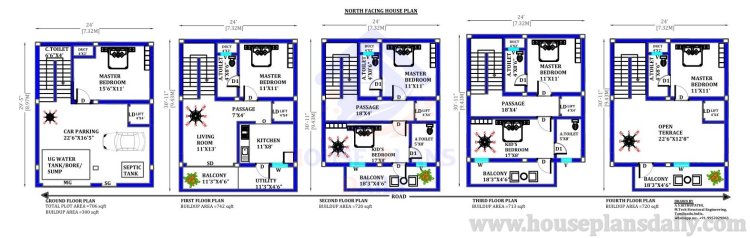

House Plans North Facing is shown in this article. The pdf and dwg files can be downloaded for free. The download button is available below. For downloading more free house plans refer to more articles. The built-up area of the ground, the first, second, third, and fourth is 300 Sqft, 742 sqft, 720 sqft, 713 sqft, and, 720 sqft respectively. The Staircase is provided inside the house. The given home Naksha consists of five floors.

House Plans North Facing

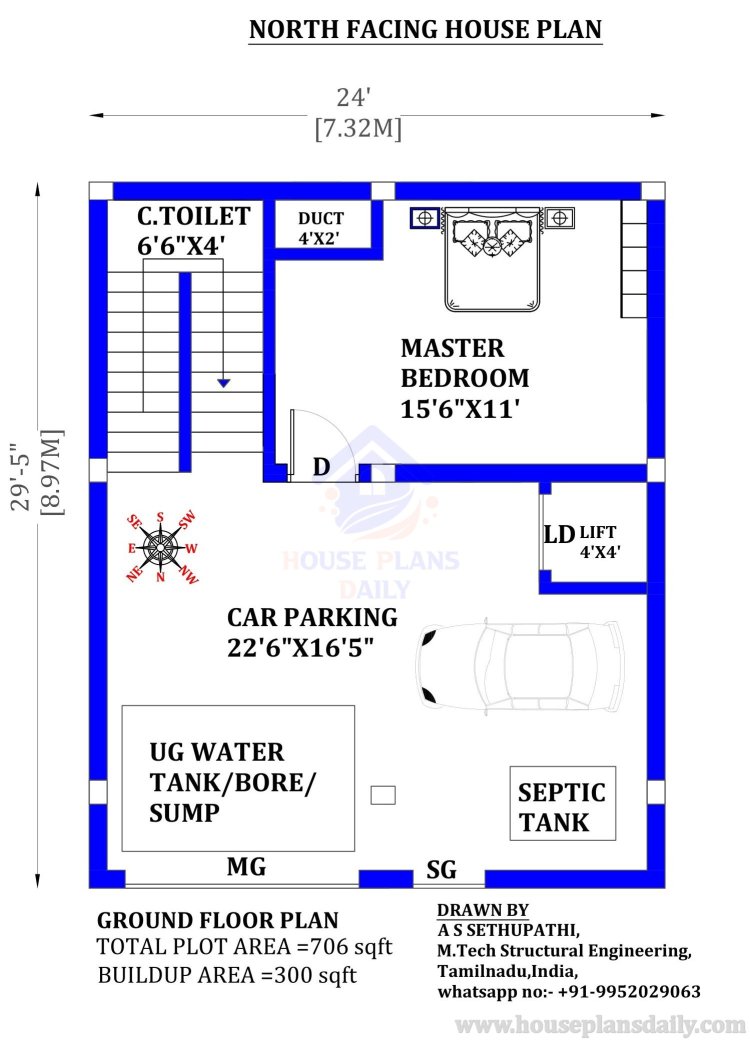

2bhk House Plan NorthFacing-Ground Floor

The above image is the ground floor of the 1 bhk house plan. The ground floor consists of a master bedroom, a common toilet, and spacious car parking. The dimensions of each room are clearly mentioned with furniture positions.

The master bedroom of the house is 15.6x11 feet in size. The common toilet is 6.6x4 feet in size and placed in the northwest direction. The car parking is 22.6x16.5 feet in size.

The car parking space can be used in multiple ways such as sitout, two-wheeler parking, and or accommodating water tanks and borewells. As per Vastu shastra the underground water tanks, sumps and borewells should be placed in the northeast direction.

Refer to these articles

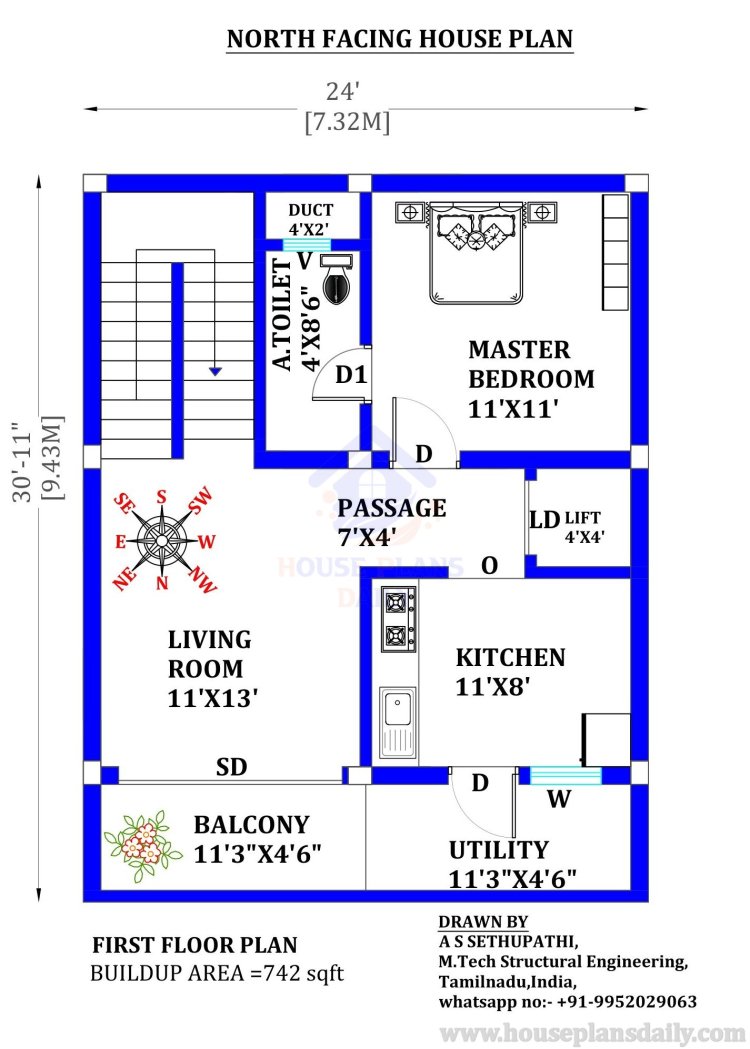

North Facing Vastu House Plan-First Floor

The above image is the first floor of naksha for home. The first floor consists of a hall or living room, a master bedroom with an attached toilet, a kitchen with a utility area, and a balcony. The dimensions of each room are clearly mentioned with furniture positions. The furniture is placed as per Vastu Shastra principles.

The hall or living area is 11x13 feet in size and placed in the north-east direction. The master bedroom is 11x11 feet in size and placed in the southwest direction with an attached toilet. The attached toilet is 4x8.6 feet in size and placed in the northwest direction. The kitchen is 11x8 feet in size. The utility area is 11.3x8.6 feet in size.

In the east direction, a spacious balcony is attached to the hall or living room. This house planning is well planned to keep in mind the purpose of ventilation by providing large windows.

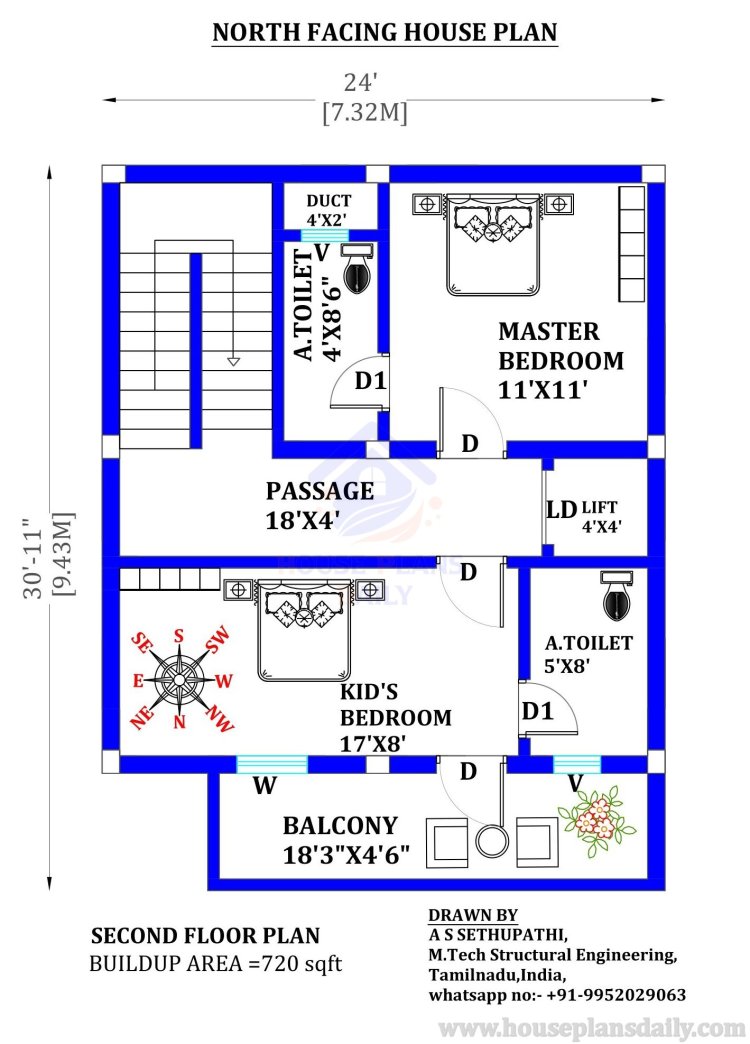

North Facing House Plan-Second Floor

2bhk house plan north facing

The above image is the second floor of home design 1bhk. The second floor consists of a master bedroom with an attached toilet, a kid's bedroom with an attached toilet, and a balcony. The dimensions of each room are clearly mentioned with furniture positions. The furniture is placed as per Vastu Shastra principles.

The master bedroom is 11x11 feet in size and placed in the southwest direction with an attached toilet. The attached toilet is 4x8.6 feet in size and placed in the northwest direction. The kid's bedroom is 17x8 feet in size with an attached toilet of size 5x8 feet.

In the north direction, a spacious balcony is attached to the kid's bedroom. This 2 bhk house planning is well planned to keep in mind the purpose of ventilation by providing large windows.

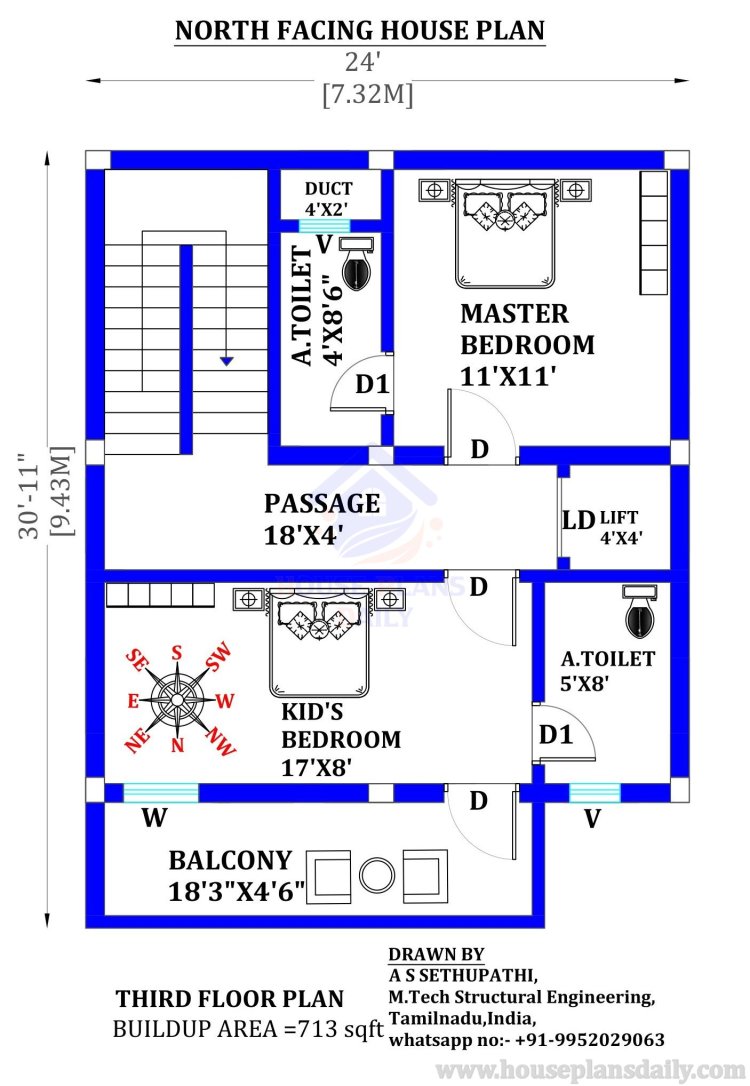

House Plans for North Facing-Third Floor

north facing vastu house plan

The above image is the third floor of plan of 1 bhk flat. The third floor consists of a master bedroom with an attached toilet, a kid's bedroom with an attached toilet, and a balcony. The dimensions of each room are clearly mentioned with furniture positions. The furniture is placed as per Vastu Shastra principles.

In the north direction, a spacious balcony is attached to the kid's bedroom. This ghar ka naksha is well planned to keep in mind the purpose of ventilation by providing large windows.

Simple Ghar Ka Naksha-Fourth Floor

north facing house plan

The above image is the fouth floor of the house plan 1bhk. The fourth floor consists of a master bedroom, a common toilet, and spacious car parking. The dimensions of each room are clearly mentioned with furniture positions.

The master bedroom of the 2bhk house plan is 11x11 feet in size. The common toilet is 4x8.6 feet in size and placed in the northwest direction. The open terrace is 22.6x12.8 feet in size.

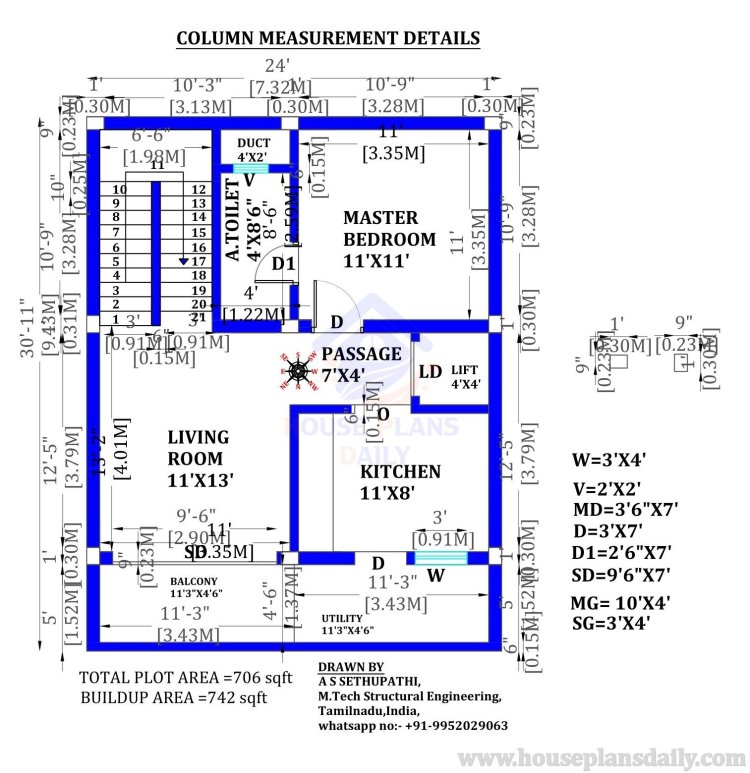

Ghar Ka Naksha Photo-Column Positions

house plans for north facing

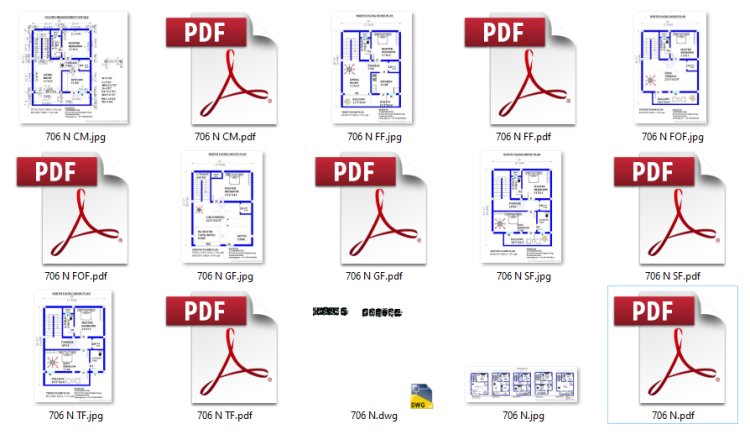

Download the house design pdf and dwg files for free

house plans pdf

Download and obtain high-quality pdf files, images in jpeg format, and Autocad drawing dwg format of this home design for free. Thank you for spending your valuable time visiting our website and citing this article. Kindly refer to more articles for gaining more ideas regarding house plans and designs in each direction. Contact us for customized house plan in, interior designs, and elevation designs

Download the Files Now
