West Facing House Plan with Shop

West facing house plan with shop and house structural drawing

West facing house plan with shop and house structural drawing is given in this article.  This is a 2 bedroom house plan. A detailed structural drawing is provided in this file. For more articles, check out our website www.houseplansdaily.com.  From this website, you will get more house plan ideas, structural drawings, interior, elevation, commercial plans, etc.,

House Design with Shop On Ground Floor

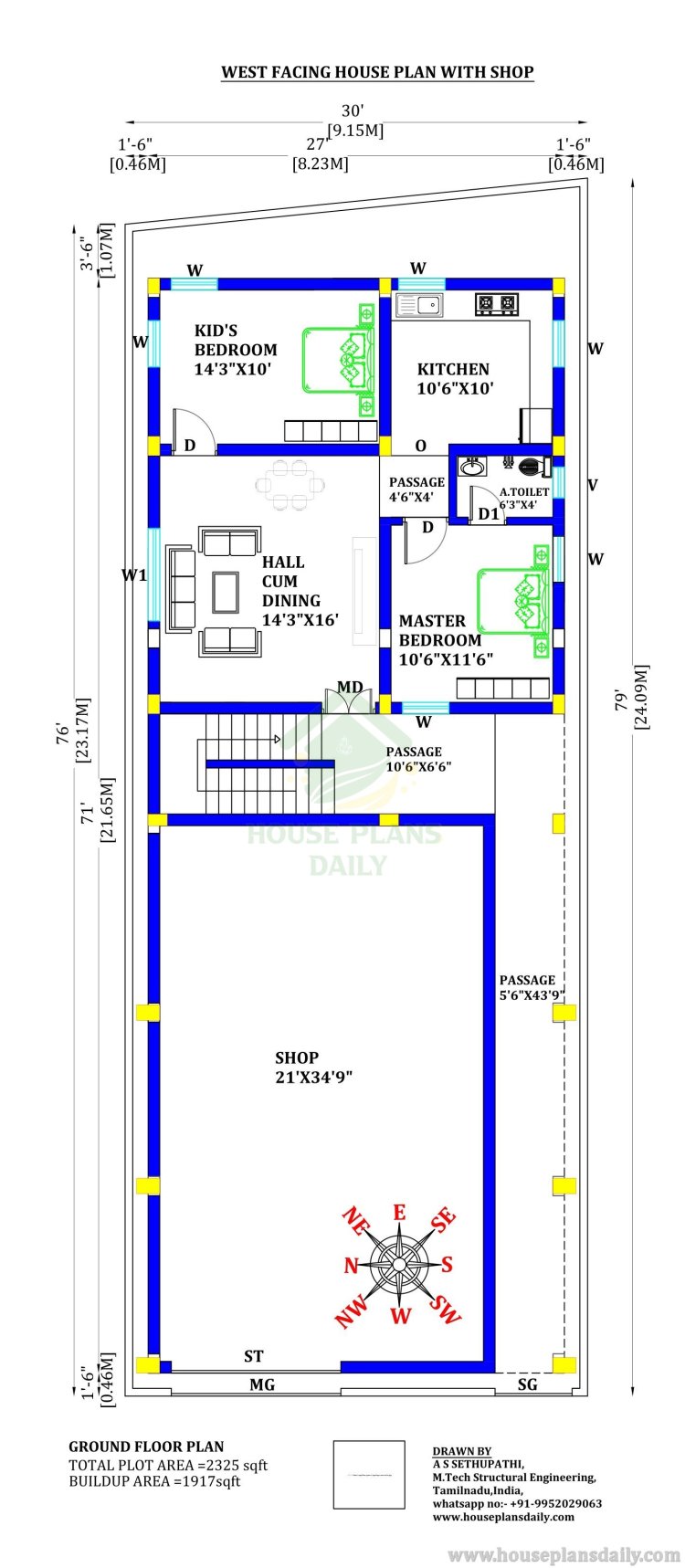

West facing house plan with shop

West facing house plan with shop ground floor layout is given in the above image.  On this ground floor plan, the shop, living room cum dining area, kitchen, kid’s bedroom, master bedroom with the attached toilet, and passages are available.

In this house design with shop, the dimension of the living room cum dining area is 14’3”x16’. The dimension of the kitchen is 10’6”x10’. The dimension of the master bedroom is 10’6”x11’6”. The dimension of the attached bathroom is 6’3”x4’.  The dimension of the kid’s bedroom is 14’3”x10’.  The dimension of the master bedroom passage is 4’6”x4’.  The dimension of the outside passage is 10’6”x6’6”.  The dimension of the shop is 21’x34’9”.

On this 2 bedroom plan, the living room cum dining area is provided in the west direction. The kitchen is provided in the southeast corner. The master bedroom is provided in the south west direction, and attached toilet is provided in the south direction. The kid’s bedroom is provided in the northeast direction. The shop is provided in the west direction.

Refer to These Articles for More Ideas

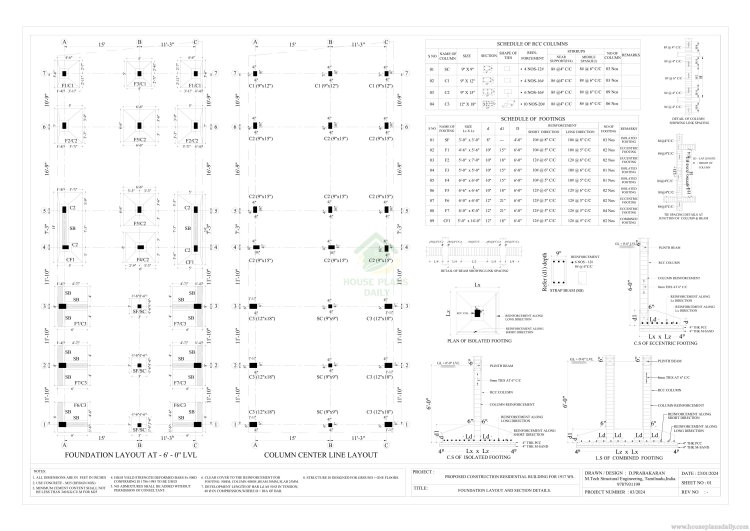

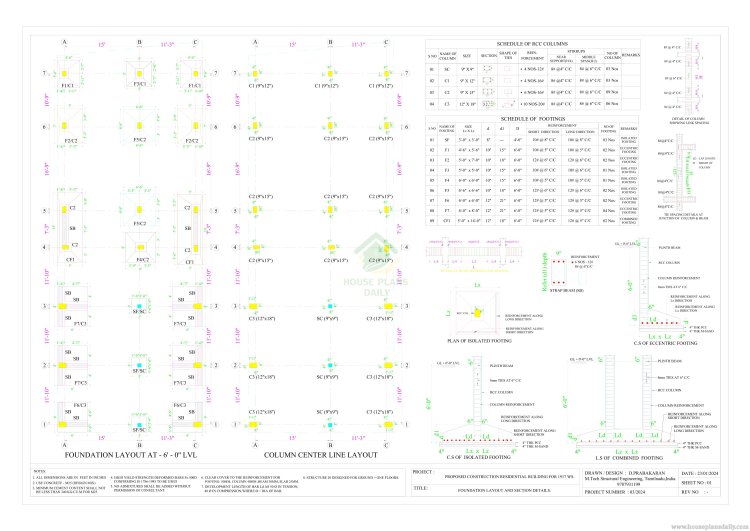

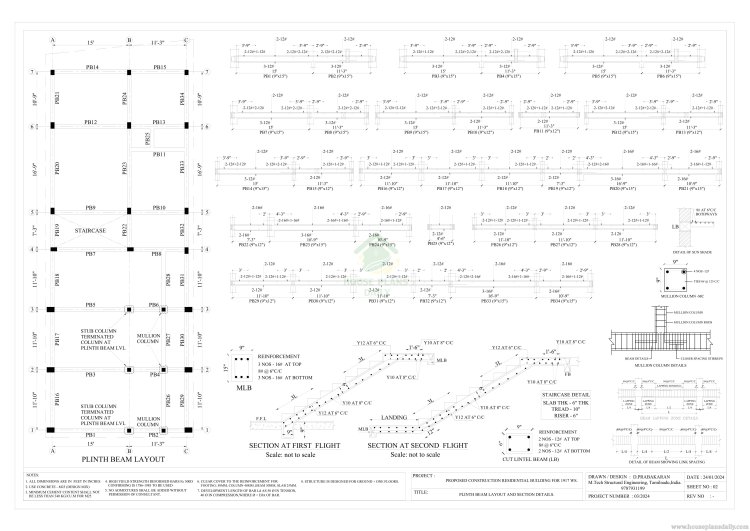

House Structural Drawing

Beautiful 200 Exterior House Design Ideas PDF Book

Are you looking for external home design ideas? Explore this gorgeous PDF book, which has 200 inspiring design ideas to help you revamp the outside of your house. Buy now and begin creating the house of your dreams.

Discover the Techniques Behind Magnificent House Exterior Designs with Our Unique 200 Concepts PDF Book

 Do you want to create a breathtaking masterpiece out of the outside of your house? There's nowhere else to look! The best resource for learning the secrets of beautiful home exterior designs is our special 200 Ideas PDF Book. This book has it all, regardless of your preference for a traditional or modern aesthetic.

There are many different design options in this extensive assortment to suit every architectural style and price range. Our carefully chosen concepts, which range from sleek contemporary exteriors to quaint cottage facades, will motivate you to improve your home's curb appeal.

You'll find helpful hints and recommendations on color schemes, materials, gardening, and more with our simple-to-follow approach. Beautiful images are shown on every page to help you visualize how each design concept may change your house.

Instead of settling for a mediocre exterior, take advantage of our special 200 Ideas PDF Book to maximize the curb appeal of your house. With your gorgeous home's façade, get ready to draw attention and leave a lasting impression.

The Effects of a Gorgeous House Exterior

Making a good first impression is crucial because your home's façade is the first thing that guests notice. In addition to enhancing your home's appeal, a gorgeous exterior raises the property's worth. It creates a mood of excitement and expectation for what's going to be behind the front door. Your emotions and general well-being might also be positively impacted by an attractive appearance. Imagine pulling into your driveway each time you go home to a residence that makes you feel proud and happy. With the help of our special 200 Ideas PDF Book, you may make this dream come true.

Look into this Video for More  - Subscribe to Our Channel



Comprehending the Fundamentals of Residential Exterior Design

Home Exterior Design

Understanding the fundamental ideas that underpin home exterior design is crucial before delving deeper into the field. Gaining knowledge of these concepts will enable you to create more intelligent design choices that express your personal taste and style. Proportion, balance, symmetry, and size are just a few of the concepts covered in our special 200 Ideas PDF Book.

The relationship between various design elements and how they fit into the composition as a whole is known as proportion. To create an external space that is aesthetically pleasant, the proper proportion must be achieved. Conversely, balance describes how a design distributes its visible weight. Depending on the desired impact, either symmetrical or asymmetrical layouts might be used to create it. Asymmetry brings a bit of spontaneity and innovation, whereas symmetrical establishes formality and order. Lastly, scale describes how big or small an object or piece is in comparison to other objects and the surroundings. To create a design that is balanced and harmonious, scale must be properly considered.

Enhancing curb appeal with landscaping and outdoor features

Home Exterior Ideas

Curb appeal isn’t just about what’s on the outside of your home. It’s also about the landscape and outdoor features that surround it. In our 200 Ideas PDF Book on Landscaping and Outdoor Design, we dive deep into all things landscaping and design. From vibrant gardens bursting with color to carefully designed pathways that lead visitors right to your front door. We’ll show you how to create a stunning outdoor oasis that’ll make your home look like the envy of your neighbors. You’ll discover how hardscaping elements like stone walkways and pergolas, as well as water features, can create a perfect balance between nature and architecture.

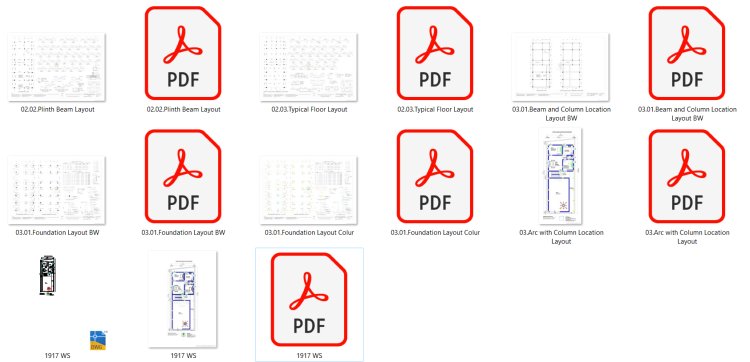

Download the West Facing  House Plan with Shop PDF and DWG Files

west facing house plan with shop pdf

Download the west facing house plan with shop pdf and drawing dwg files from our website. Thank you for spending your valuable time to visiting our website and citing this article. For more articles, check out our website house plans daily (www.houseplansdaily.com). From our website you will get house plans like east facing house plans, north face house plans, south face house plan, west face house plans, vastu plans, electrical drawing, plumbing drawings, elevation ideas, interior ideas, etc.,
